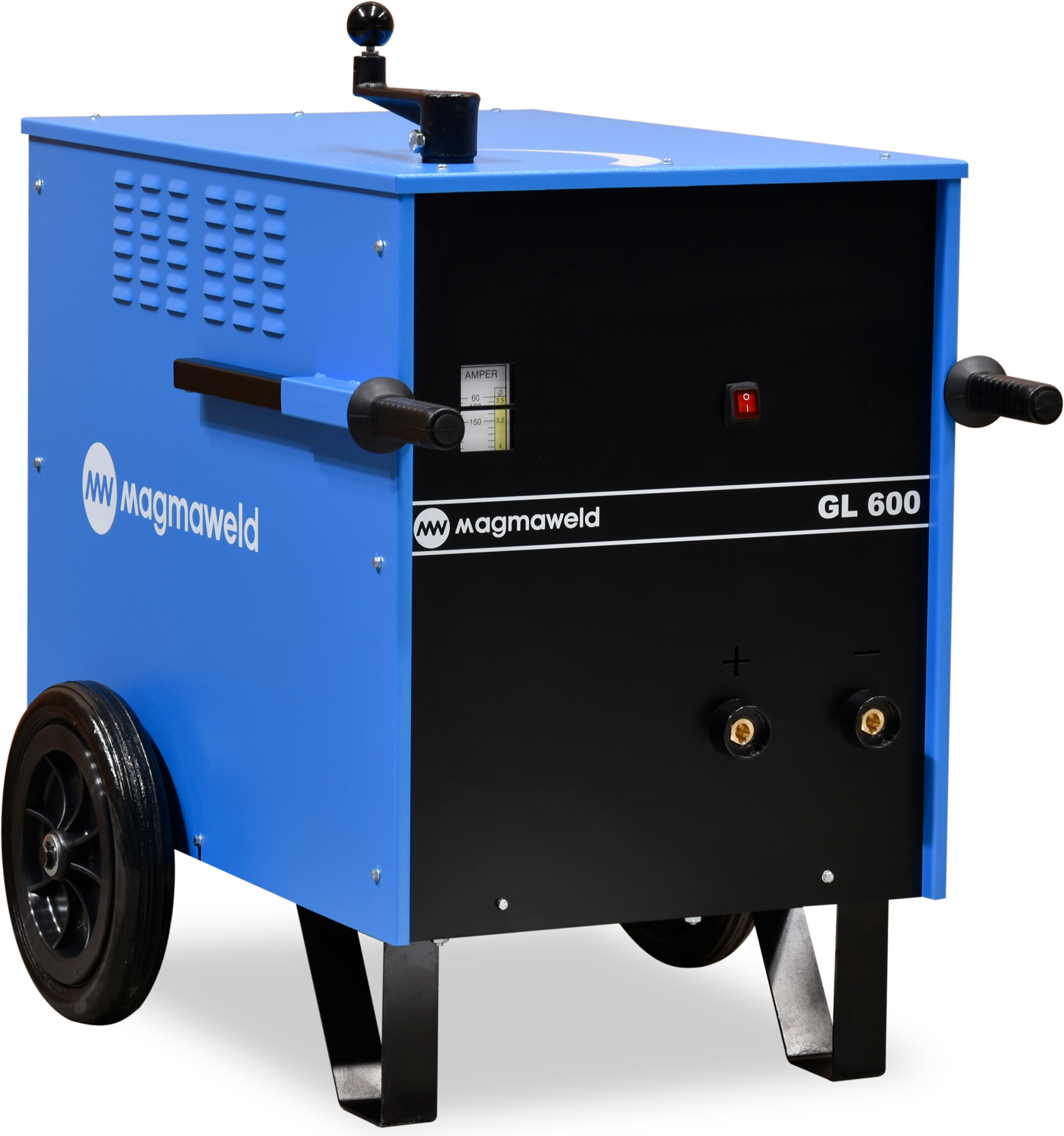

Gl 600 G

GL 600

Products:

GENERAL
Technical Details
Accessories
DOCUMENTS
  • Operates with 3 Phase 400V-50/60 Hz mains voltage and generators, tolerates voltage fluctuations up to 10%.
  • Excellent welding characteristics for Rutile, Basic and Cellulosic electrodes and high carbon gauging performance with GL models.
  • Offers the possibility of working with long welding cables.
  • Current adjustment by turning handles and adjusted value is monitored through mechanical scales.
  • Due to its large wheels and telescopic arms, easy mobility on tough floor conditions.
  • Fan cooling and thermal protection against overheating.
  • Standard accessories come with the machine.
Power Source
Mains Voltage (3Ph) 400 V
Input Power 36.6 (%35) kVA
Welding Current Range 90 - 600 A
Nominal Welding Current 500 (%35) A
Open Circuit Voltage 72 V
Electrode Diameter 3.25 - 6.00 mm
Carbon Gouging Electrode 10.00 mm
Dimensions (l x w x h) 920 x 660 x 900 mm
Weight (Net) 244 kg
Protection Class IP22
Code Name Dimension Standard/Optional
7906407005 Electrode Clamp And Cable 70mm2/5mt (35 socket) Standard
7905407003 Ground Clamp And Cable 70mm2/3mt (35 socket) Standard
7908201000 Carbon Cutting Torch 1000 A Optional
Product Brochure
PDF
Operating Manual
PDF Search
Additional Documents

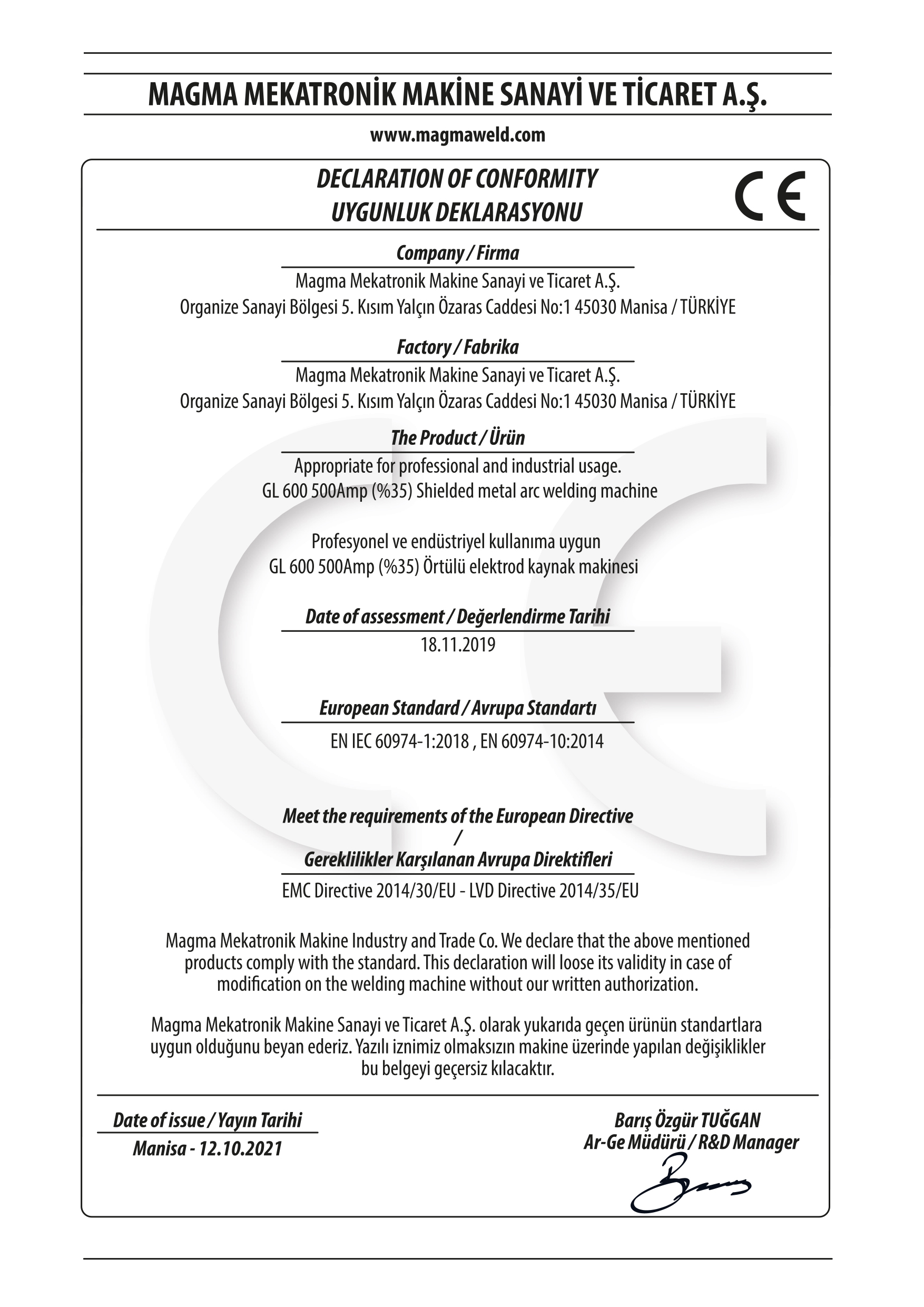

Approvals & Certificates

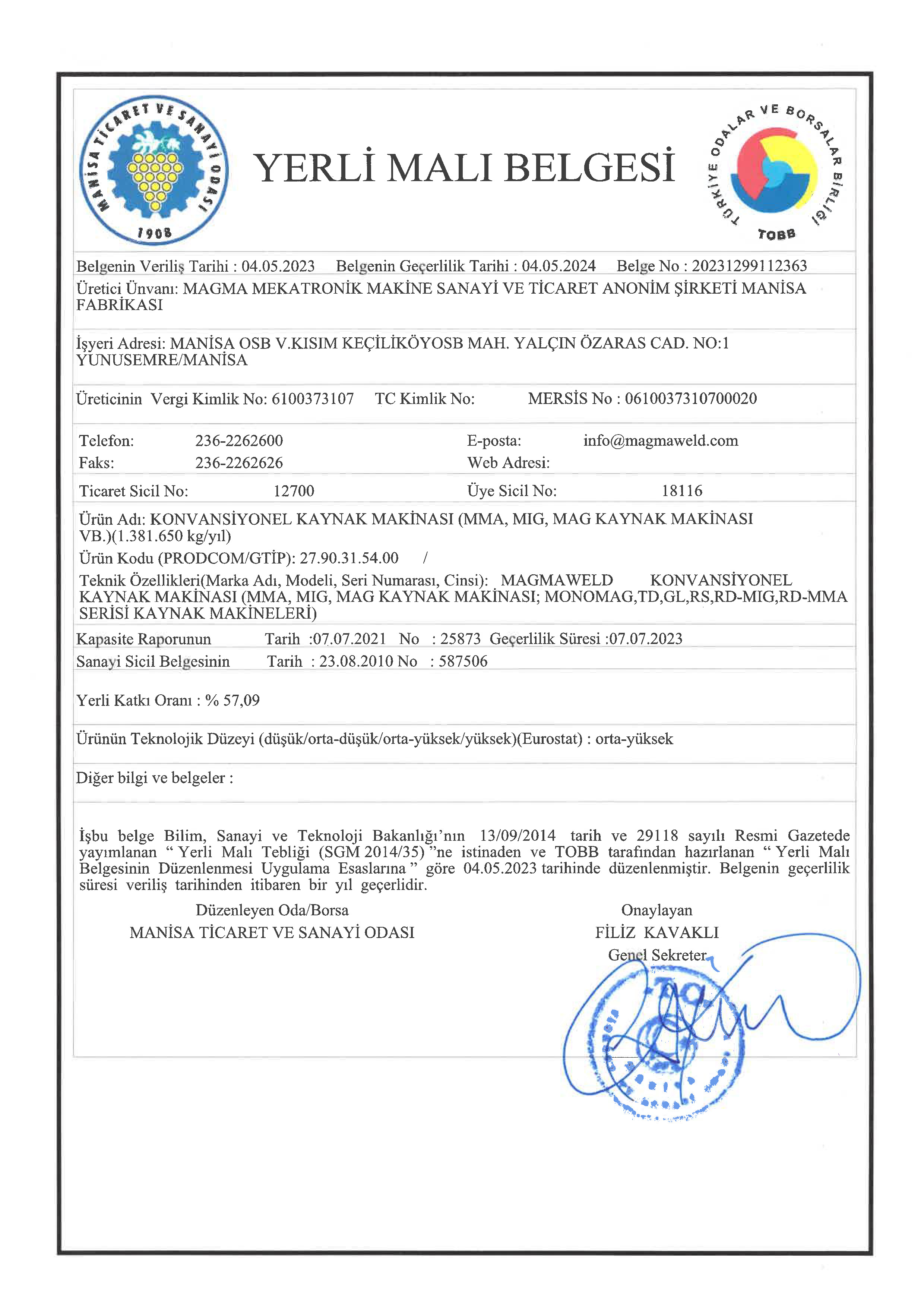

CE ROHS EAC YERLİ MALI
