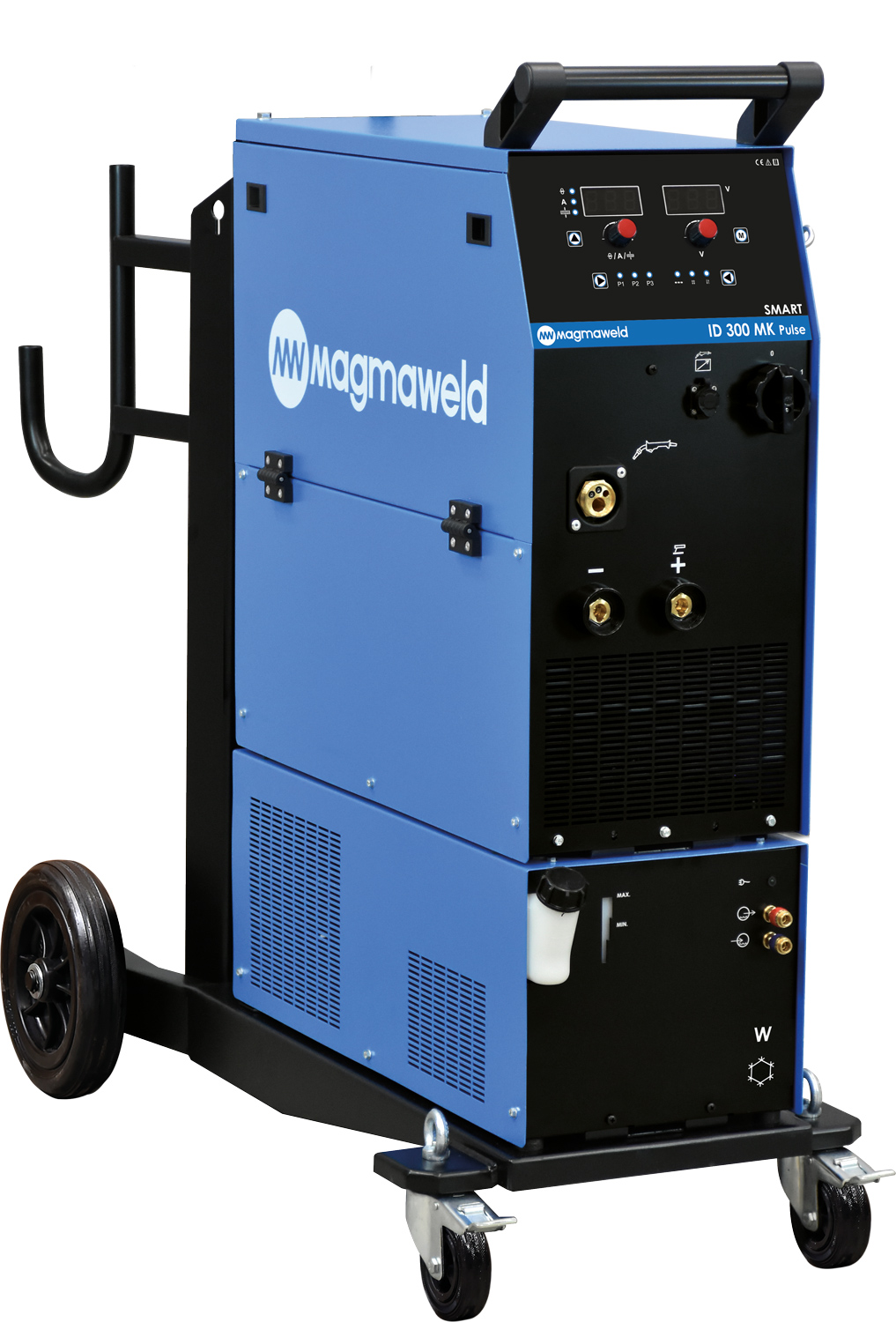

Id 300 Mkw Pulse Smart

ID 300 MKW PULSE SMART

Products :
Package:
Adet sayısı Label
Paket Fiyatı:
Add to Basket
General
Technical Details
Accessories
DOCUMENTS
  • Operates with 3 Phase 400 V 50/60 Hz networks & generators. Tolerates voltage fluctuations upto %15.
  • Excellent welding characteristics with all types of solid and flux cored wires.
  • Constant Current & Constant Voltage (CC/CV). Power sources enabling operators to use stick electrode and carbon gauging processes as well as the MIG/MAG process.
  • Ready to weld with any type of ROBOT. According to the robot type, digital & analog communication is possible.
  • magNET ready: Welding and environmental data is stored in real time scale. While certain values are directly read on the LCD panel, more information like OEE and WP/Quality information could be monitored and stored on the magNET platform (Optional).
  • 3 Adjustment Modes; "Synergic, Classic, Smart". makes it especially easy for operators who used to weld with conventional equipment.
  • Synergic feature for optimum welding parameter selection through the LCD menu by Wire Type, Wire Size, Gas Type, and Thickness selection.
  • Trigger Mode (2/4), Soft Start for spatter free arc ignition, Pre-Gas, Post-Gas and Crater Filling for automation, Burn-Back time for anti sticking and Spot On/Off timers can be set through the LCD panel.
  • Welding Voltage, Welding Current or Wire Feeding Speed, according to the selected mode can be set or fine tuned by potentiometers and confortably monitored by separate big digital displays.
  • The 2 way button for Inching and Gas Purge is inside the wire feeder compartment.
  • Separate Wire Feeding System for spools 300, 270 and 200 mm in diameters and special wire inlet for drums.
  • The 4-wheel drive system assures good feedablity with longer torches and less deformation of delicate wires like aluminum and flux cored wires.
  • Standard hose between wire feeder box and the base machine is 5m long. Upon request this could be extended up to 30m.
  • Built-in trolly with gas bottle platform and 24V DC electric socket for CO gas heater.
  • Water cooling unit is at the base of the trolly and it is powerful enough to support in warm climates and long harness.
  • Outer case is made out of steel and coated with electrostatic powder painting for a corroson free longer service life.
  • Protection Class is IP21S.
  • Protected against missing phase or excessvely high or low line voltage.
  • Fan cooled and protected against overheating.
  • Smart Cooling enables all turning parts, like fans and pump motors, work according to the heating levels. This function signifciantly reduces nose levels, dust accumulation inside of the equipment, energy consumption and service needs

Power Source
Mains Voltage (3Ph) 400 V
Input Power 14.7 (%40) kVA
Welding Current Range 50 - 300 A
Nominal Welding Current 300 (%40) A
Open Circuit Voltage 82 V
Dimensions (l x w x h) 1180x528x1137 mm
Protection Class IP21
Weight (Net) 110 kg
Wire Feeder System
Welding Wire Diameter 0.60- 1.20 mm
Wire Feeding Speed 1-24 m/dk
Torch Trigger Control 2/4
Water Cooling Unit
Cooling Power 1.02 BTU
Code Name Dimension Standard/Optional
7907000002 Gas Hose 2 Meters Standard
7905203505 Ground Clamp And Cable 35mm2/5mt (35 socket) Standard
7120050003 LAVA MIG 50W-3 450A (%100 CO2) - 3m Optional
7020009003 CO2 Heater MAGMAWELD(24V AC-50W) Optional
7020001005 CO2 Regulator W21,8x1/14'' ALTTAN AYARLI Optional
7020001004 Argon Regulator G5/8'' ALTTAN AYARLI Optional
Product Brochure
PDF
Operating Manual
PDF Search
Additional Documents
Wire Feed Unit Quick User Manual

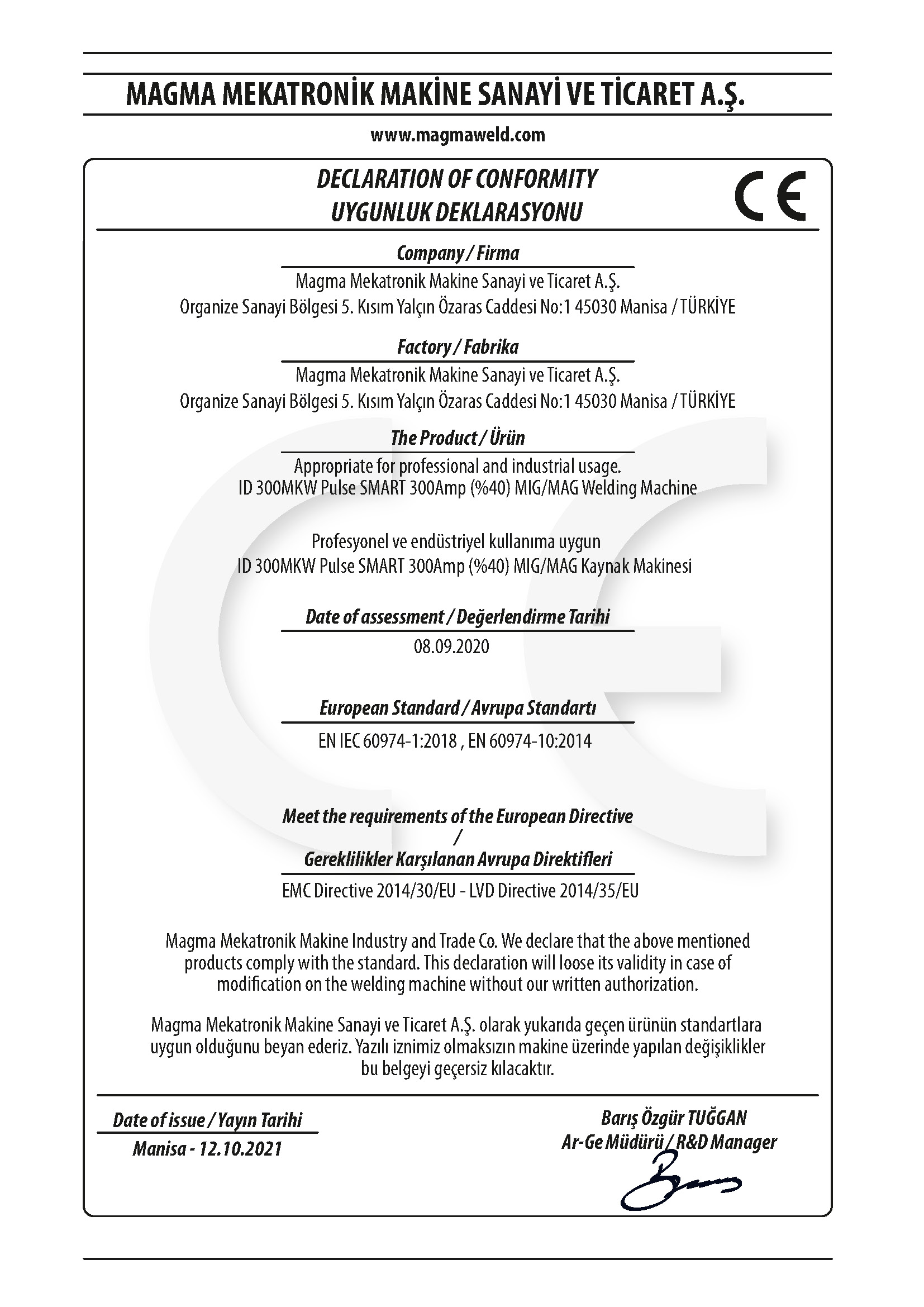

Approvals & Certificates
EAC YERLİ MALI CE
