Mig/Mag Welding Machines
Id 400 M Pulse Expert

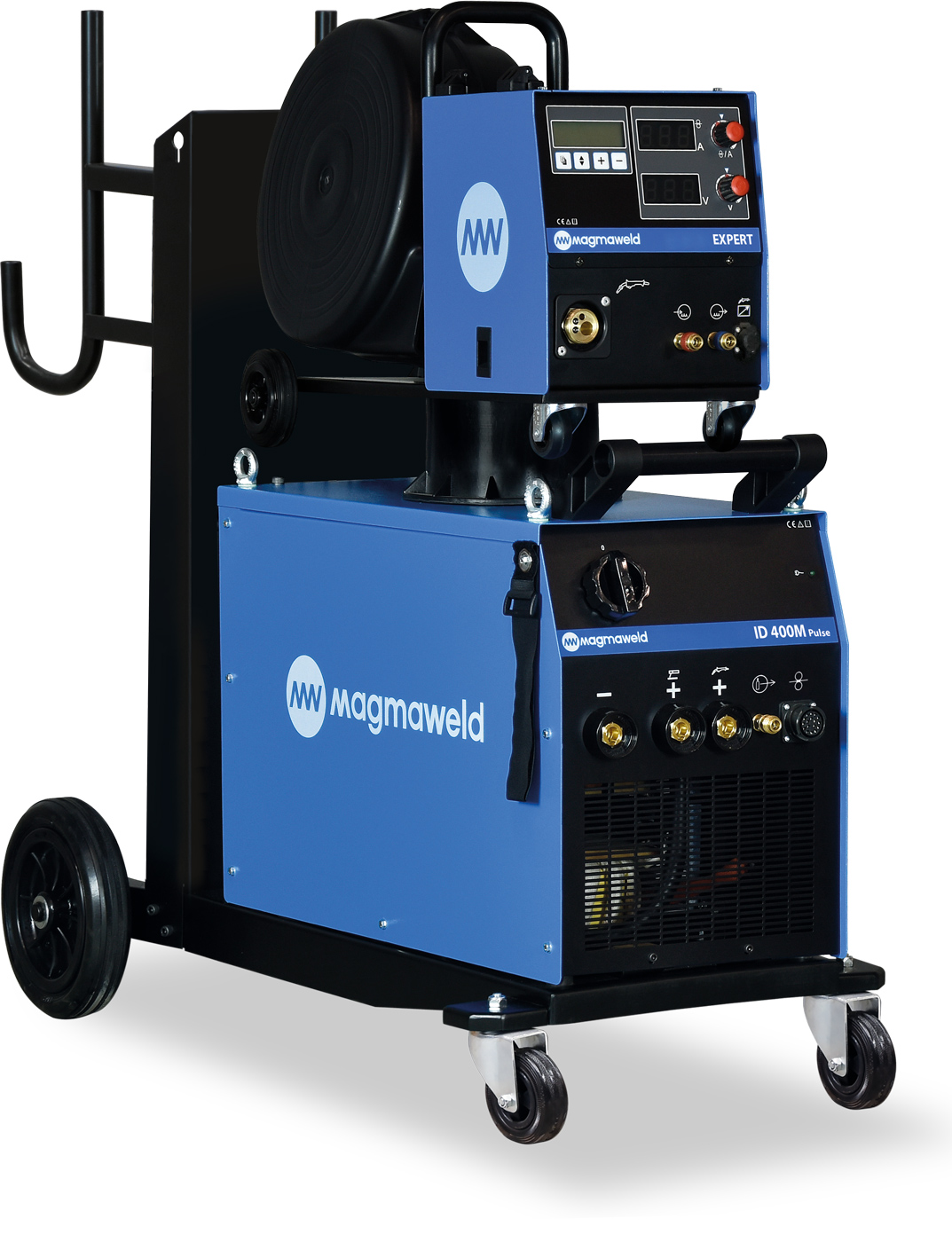

ID 400 M PULSE EXPERT
ID 400 M-5 PULSE EXPERT/523440A210
Add to Basket
Operates with 3 Phase 400V-50/60 Hz mains voltage and generators, tolerates voltage fluctuations up to 15%.
Due to inverter technology, energy efficiency is higher than the conventional machines.
Excellent welding characteristics with all types of solid and flux cored wires with CO2 or Mix gases.
Multi process welding; MIG/MAG, Stick Electrode, Carbon Gauging and TIG welding.
No Spatter welding due to advanced electronically optimized inductance and pulsing functions. Excellent welding characteristics for all methods.
3 Operating Modes; "Synergic, Classic, Smart". Conventional. With these options a welder can adapt from basic to synergic welding easily.
ONE LCD for ALL parameter selection; Wire type, wire diameter, gas type and thickness of the base metal for Synergic Welding and Soft Start, Pre-Gas, Post-Gas, Burn-Back, Crater Filling timer settings as GENERAL SETTINGS.
4 Different JOB and 2/4/6 Trigger mode selection from TORCH.
Industry 4.0 features such as; OEE, Arc-On Time reporting, WP setting/controlling/reporting, Barcode and RF Card reading. (Optional)
Separate Wire Feeder models are available.
4 Wheel Drive system, offers very powerful feedability for longer torches and offers less deformation on soft wires such as aluminum and flux cored wires.
ROBOT connectivity due to very stable arc and advanced communication possibilities.
The Separate wire feeder standard harness length is 5 m and can be extended up to 30 m upon request.
Manual wire feeding & gas valve buttons are inside of the wire feeding cabinet.
ø300 mm, ø270 mm and ø200 mm diameter spools and drums of any size can be used.
24V AC outlet for CO2 gas heater.
Stable welding current without loss of performance due to electric line fluctuations or with long welding and electrical cables.
Built in gas cylinder platform with large wheels to ease mobility in workshops. Multipurpose drawer replaces water cooling unit if it is not needed.
Intelligent control of temperature reduces energy consumption and extends the fan and machine life. (SmartFan)
Submerged arc welding head can be coupled easily. (Option)
Standard accessories come with the machine.
Mains Voltage (3Ph)
Welding Current Range
50 - 400
Nominal Welding Current
Open Circuit Voltage
Wire Feeder System
Welding Wire Diameter
0.80 - 1.60
Wire Feeding Speed
1 - 24
Torch Trigger Control
2 / 4 / 6
Water Cooling Unit
400A MIG Accessories Kit (Torch+MIX Regulator)
LAVA MIG 40-3 + MIX/ARGON REGULATOR
400A MIG Accessories Kit (Torch+CO2 Regulator+Heater)
LAVA MIG 15-3 + CO2 REGULATOR+24V HEATER
LAVA MIG 40-3
340A (%60 CO2) - 3m
W21,8x1/14'' ALTTAN AYARLI
G5/8'' ALTTAN AYARLI
Wire Feed Unit Quick User Manual

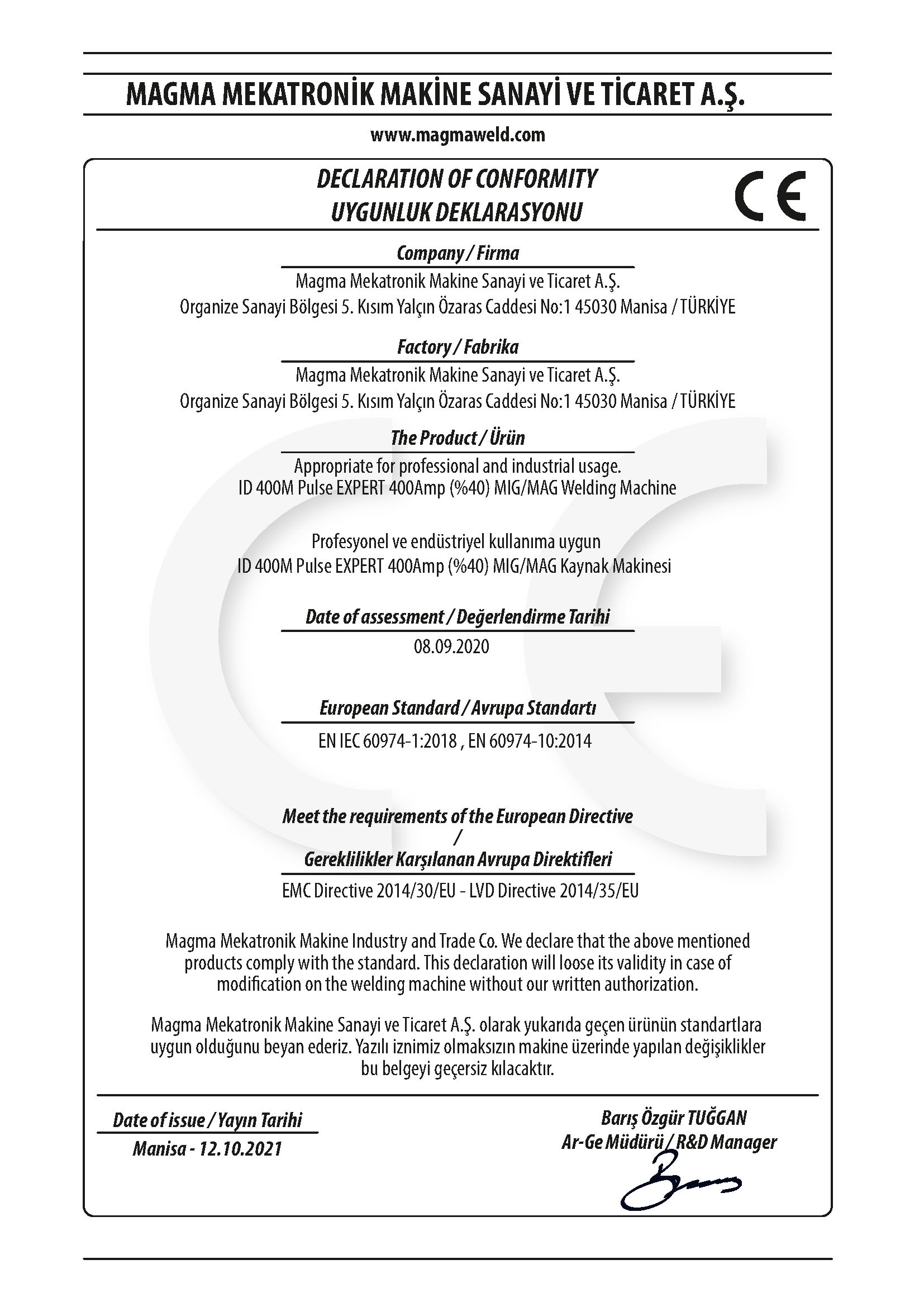

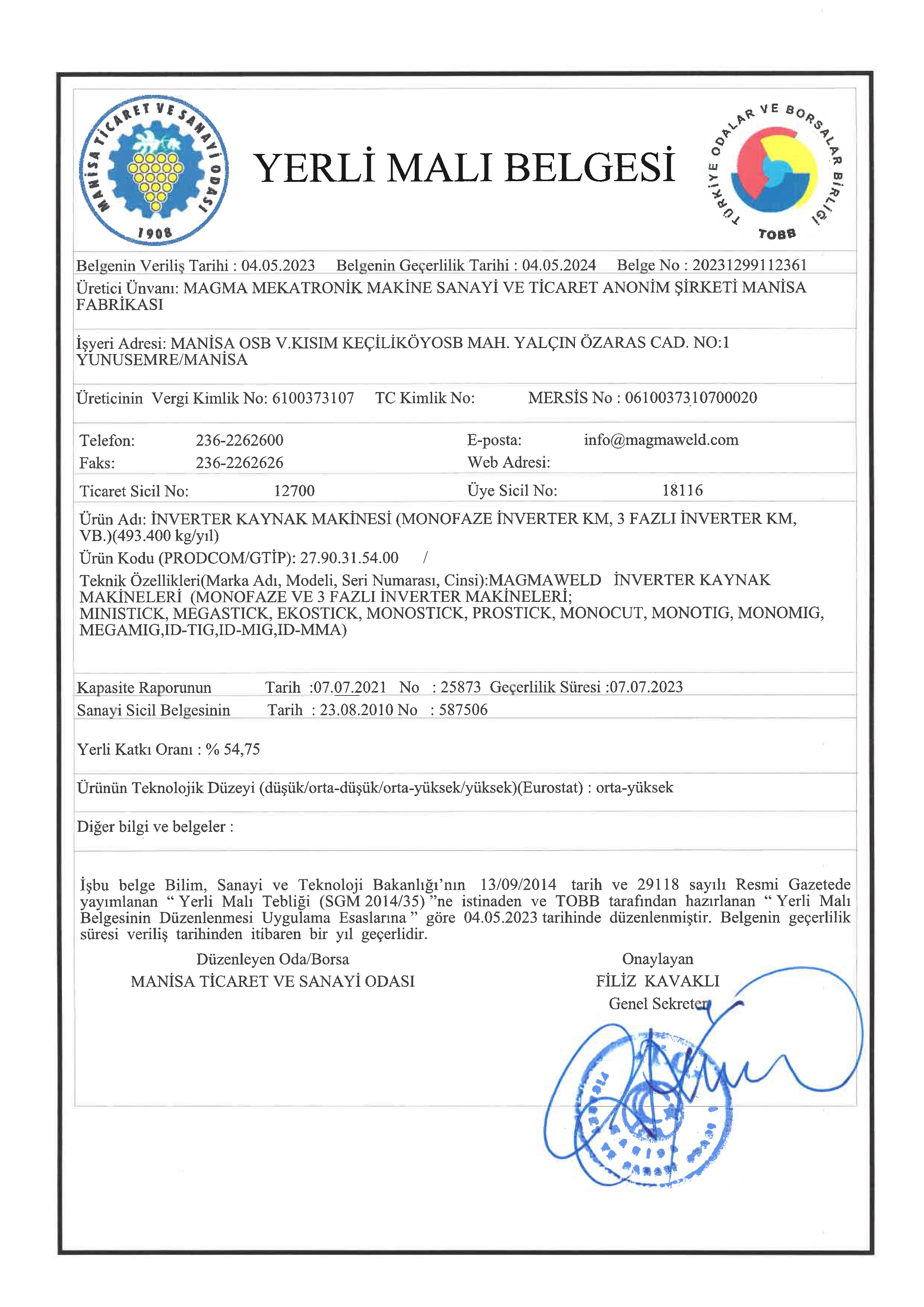

Approvals & Certificates
