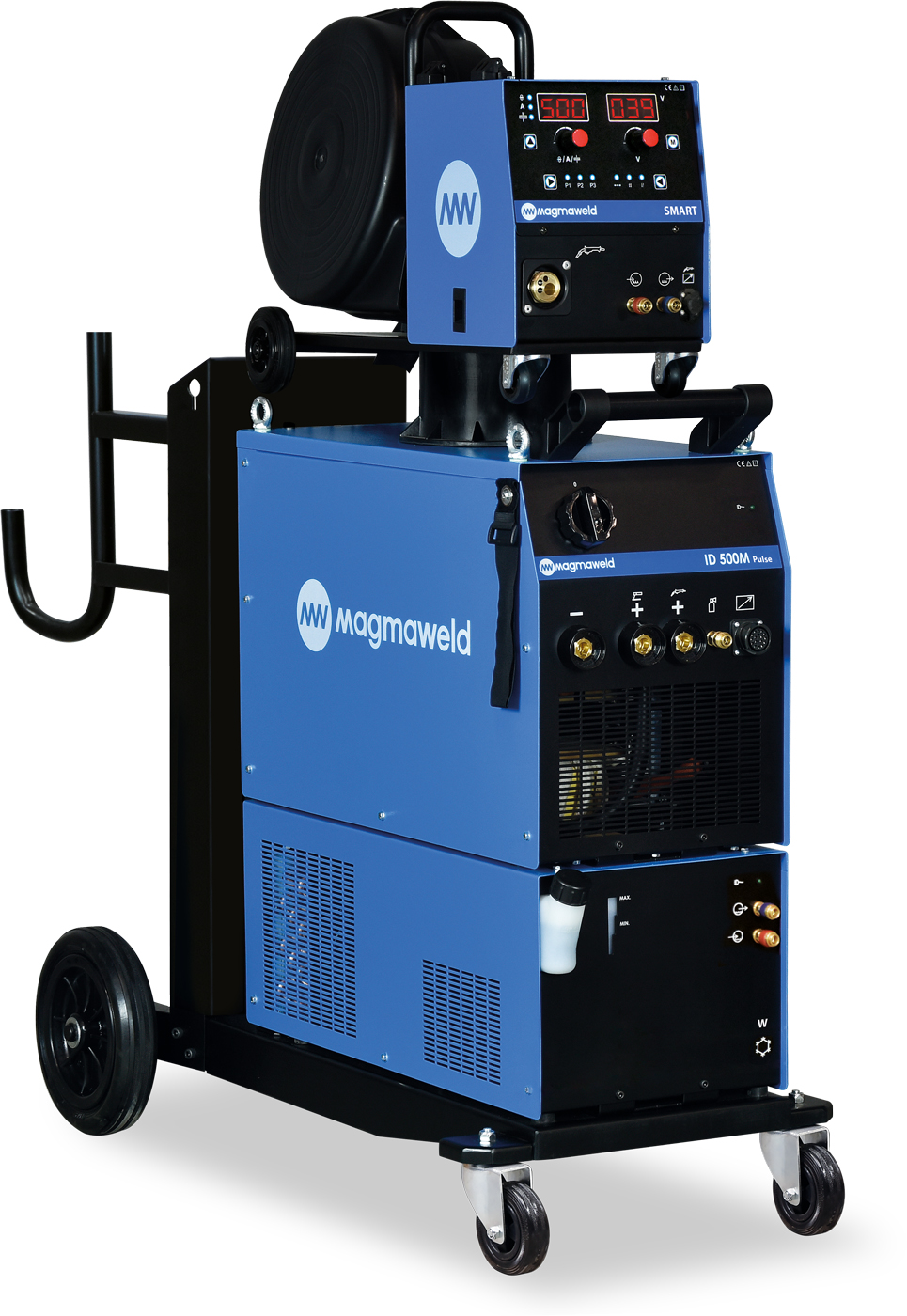

ID 500 MW PULSE SMART

Products:

Operates with 3 Phase 400V-50/60 Hz mains voltage and generators, tolerates voltage fluctuations up to 15%.
Due to inverter technology, energy efficiency is higher than the conventional machines.
Excellent welding characteristics with all types of solid and flux cored wires with CO2 or Mix gases.
Multi process welding; MIG/MAG, Stick Electrode, Carbon Gauging and TIG welding.
No Spatter welding due to advanced electronically optimized inductance and pulsing functions. Excellent welding characteristics for all methods.
3 Operating Modes; "Synergic, Classic, Smart" . Conventional. With these options a welder can adapt from basic to synergic welding easily.
LED Design for easy parameter selection; Wire type, wire diameter, gas type and thickness of the base metal for Synergic Welding and Soft Start, Pre-Gas, Post-Gas, Burn-Back, Crater Filling timer settings as GENERAL SETTINGS.
3 Different JOB and 2/4 Trigger mode selection from TORCH.
Industry 4.0 features such as; OEE, Arc-On Time reporting, WP setting/controlling/reporting, Barcode and RF Card reading. (Optional)
Separate Wire Feeder models are available.
4 Wheel Drive system, offers very powerful feedability for longer torches and offers less deformation on soft wires such as aluminum and flux cored wires.
ROBOT connectivity due to very stable arc and advanced communication possibilities.
The Separate wire feeder standard harness length is 5 m and can be extended up to 30 m upon request.
Manual wire feeding & gas valve buttons are inside of the wire feeding cabinet.
ø300 mm, ø270 mm and ø200 mm diameter spools and drums of any size can be used.
24V AC outlet for CO2 gas heater.
Stable welding current without loss of performance due to electric line fluctuations or with long welding and electrical cables.
Built in gas cylinder platform with large wheels to ease mobility in workshops. Multipurpose drawer replaces water cooling unit if it is not needed.
Intelligent control of temperature reduces energy consumption and extends the fan and machine life. (SmartFan)
For water-cooled (W) models, provides powerful water cooling up to 50 m distance & 40ºC ambient temperature.
Submerged arc welding head can be coupled easily. (Option)
Standard accessories come with the machine.

GUC KAYNAGI
Mains Voltage (3Ph)	400	V
Input Power	32.7 (%40)	kVA
Welding Current Range	50 - 500	A
Nominal Welding Current	500 (%40)	A
Open Circuit Voltage	82	V
Dimensions (l x w x h)	1078 x 531 x 1348	mm
Weight (Net)	113.7	KG
WIRE DRIVE UNIT
Welding Wire Diameter	0.80 - 1.60	mm
Wire Feeding Speed	1 - 24	m/dk
Torch Trigger Control	2 / 4
Dimensions (l x w x h)	620 x 264 x 460	mm
Weight (Net)	23.7	KG
WATER COOLING UNIT
Cooling Power	13205	BTU
Dimensions (l x w x h)	714 x 310 x 300	mm
Weight (Net)	24	KG

CODE	pcs	Dimension	Standard/Optional
7907000002	GAZ HORTUMU	2 Meters	STANDARD
7905509505	Ground Clamp And Cable	95mm2/5mt (35 socket)	STANDARD
7920000020	TIG TORÇ DÖNÜŞTÜRÜCÜ	EURO KONNEKTÖR	Optional
7120160003	LAVA MIG 65W-3	600A (%100 CO2) - 3m	Optional
7120050003	LAVA MIG 50W-3	450A (%100 CO2) - 3m	Optional
7020009003	CO2 HEATER	MAGMAWELD(24V AC-50W)	Optional
7020001005	CO2 Regulator	W21,8x1/14'' Bottom Adjustment	Optional
7020001004	Argon Regulator	G5/8'' Bottom Adjustment	Optional

Product introduction

PDF

KULLANMA KILAVUZU

PDF Search

Additional Documents

Wire Feed Unit Quick User Manual

Quick Start

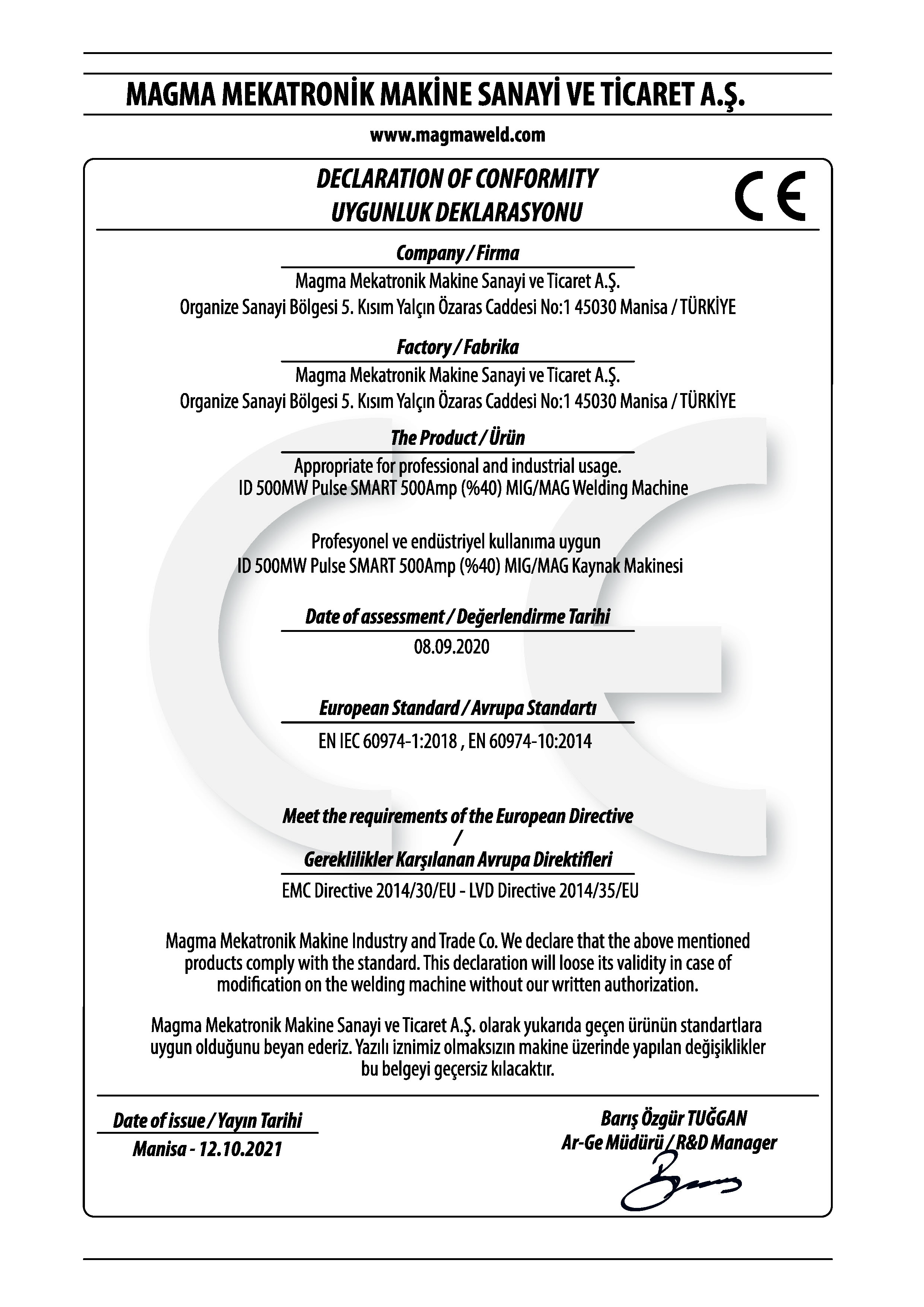

Approvals & Certificates
