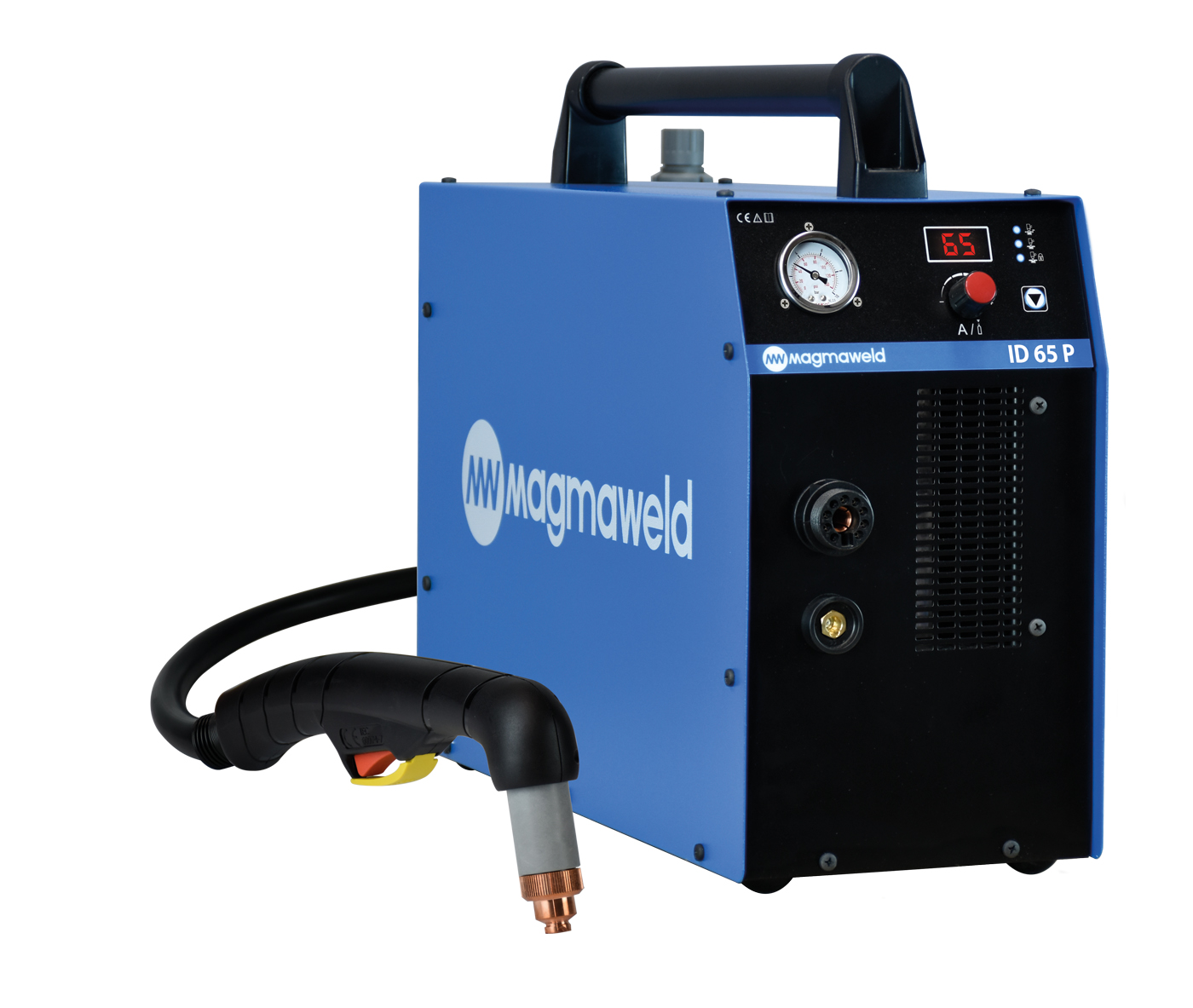

Id 65 P Plazma Kesme Makinesi

ID 65 P

General
Technical Details
Accessories
DOCUMENTS
  • Plasma cutting machine with inverter technology.
  • Excellent cutting and gouging performance with all metal types with its advanced structure.
  • High quality 28 mm burr-free cutting, 18 mm pierce and 35 mm severance capacity without loss of performance in all metal types including aluminum and stainless .
  • Faster and cleaner cutting performance compared to oxyfuel (up to 20 mm),
  • Automatic adjustment for optimum gas pressure in ID 65 PCA model
  • Different torch and consumable options for special applications.
  • Easy setting and monitoring with user friendly interface
  • More uptime and maximum performance with strong torches and consumables
  • Save time with more precise and smoother cutting
  • Easy connection to the automation interface
  • Impact resistant, robust, reinforced steel body
  • Easy mobility with its ergonomic structure
  • No performance loss due to mains voltage fluctuations and ambient temperature changes



Power Source
Mains Voltage (3Ph) 400 V
Input Power 12,3 kVA
Output Voltage 106 V
Output Current 20 - 65 A
Enable Rate 65 (%50) A
Open Circuit Voltage 270 V
Önerilen Kesme Kalınlığı 22 mm
En Büyük Kesme Kalınlığı 28 mm
Koparma Kalınlığı 35 mm
Dimensions (l x w x h) 628,1 x 219,3 x 453,7 mm
Weight (Net) 26 kg
Plasma Gas Clean, dry, oil-free air or N2
Protection Gas Clean, dry, oil-free air or N2
Required Work Pressure 5.5 bar - 185 lt/dk
Protection Class IP21
Code Name Dimension Standard/Optional
7905102502 Ground Clamp And Cable 25mm2/2mt (25 socket) Standard
7142H10506 PCH PLASMA TORCH HAND CUTTING 6 METERS Standard
7942CC0001 PLAZMA DAİRE KESME - PERGEL MAGMAWELD Optional
7942BC0001 ANGEL CUTTING MAGMAWELD PCM/PCH Optional
Product Brochure
PDF
Operating Manual
PDF Search
Additional Documents
Plasma Torch Consumables

Approvals & Certificates
YERLİ MALI CE
