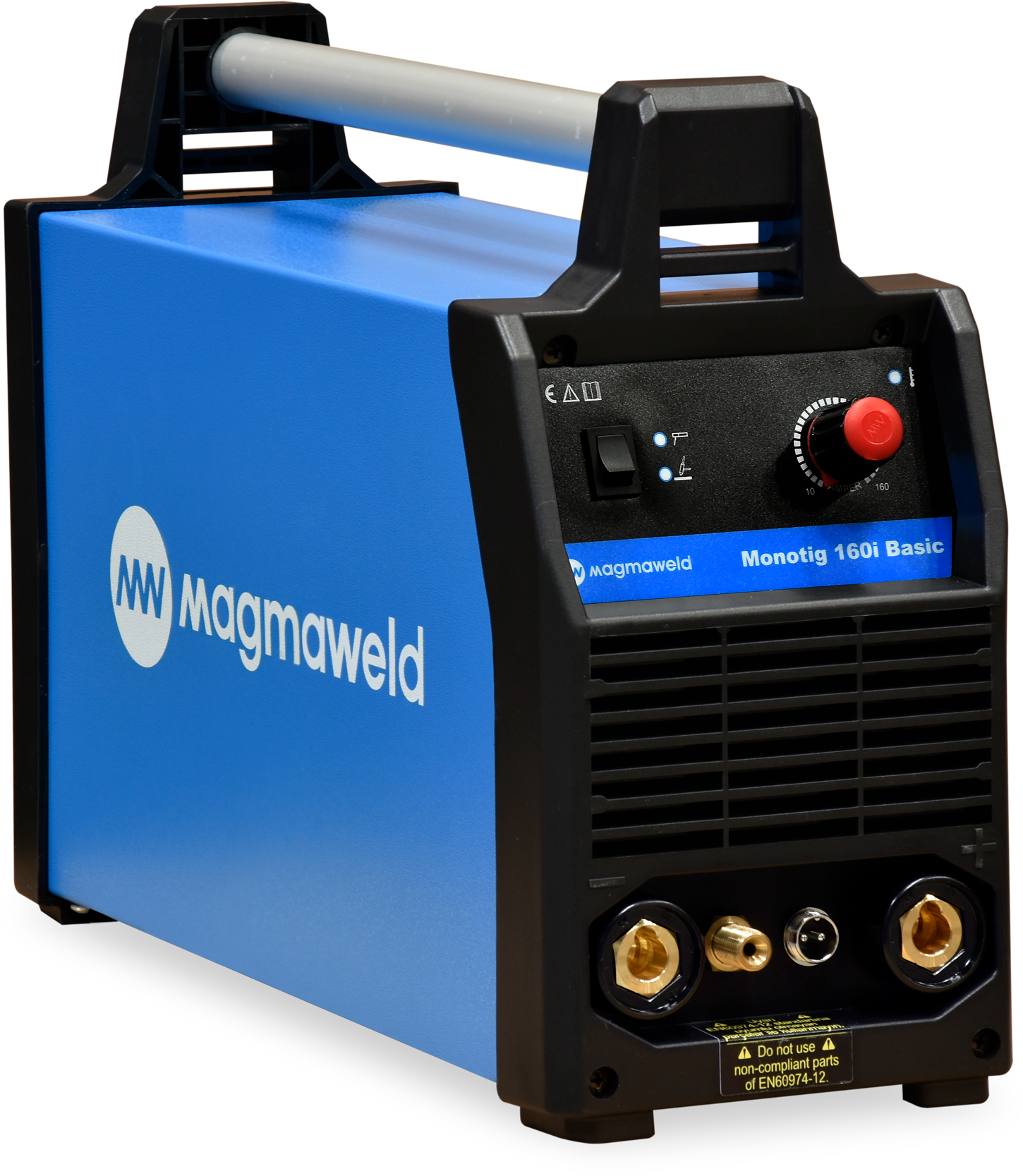

Monotig 160I Basic

MONOTIG 160i BASIC

Products :
Package:
Adet sayısı Label
Paket Fiyatı:
Add to Basket
General
Technical Details
Accessories
DOCUMENTS
  • Operates with 1 Phase 230V-50/60 Hz mains voltage and generators, tolerates voltage fluctuations up to 15%.
  • Due to inverter technology, energy efficiency is higher than the conventional machines.
  • Excellent welding characteristics for rutile and basic electrodes.
  • TIG welding with Lift TIG arc ignition.
  • TIG torch with trigger and foot pedal (On / Off) can be used.
  • Stable welding current without loss of performance due to electric line fluctuations or with long welding and electrical cables.
  • Designed also for outdoor use, protection class is IP 23.
  • Portable lightweight design but withstands tough working conditions.
  • Fan cooling and thermal protection against overheating.
  • Standard accessories come with the machine.
Power Source
Mains Voltage (1Ph) 230 V
Input Power 7.8 (%20) kVA
Welding Current Range 10-160 ADC
Nominal Welding Current 160 (%20) ADC
Open Circuit Voltage 65 VDC
Electrode Diameter 1.60 - 3.25 mm
Dimensions (l x w x h) 450 x 160 x 312 mm
Weight (Net) 9.5 kg
Protection Class IP23
Code Name Dimension Standard/Optional
7907000002 Gas Hose 2 Meters Standard
7906201603 Electrode Clamp And Cable 16mm2/3mt (35 socket) Standard
7905201603 Ground Clamp And Cable 16mm2/3mt (35 socket) Standard
7110018204 LAVA TIG 26B-4 BASIC 180A (%35 DC) - 4m Standard
7910005200 Water Cooling Unit CSP 40 Optional
7910000130 TIG AYAK PEDALI MONO TIG (ON/OFF) Optional
7910000100 TIG TAŞIMA ARABASI Optional
7020001004 Argon Regulator G5/8'' ALTTAN AYARLI Optional
Product Brochure
PDF
Operating Manual
PDF Search
Additional Documents

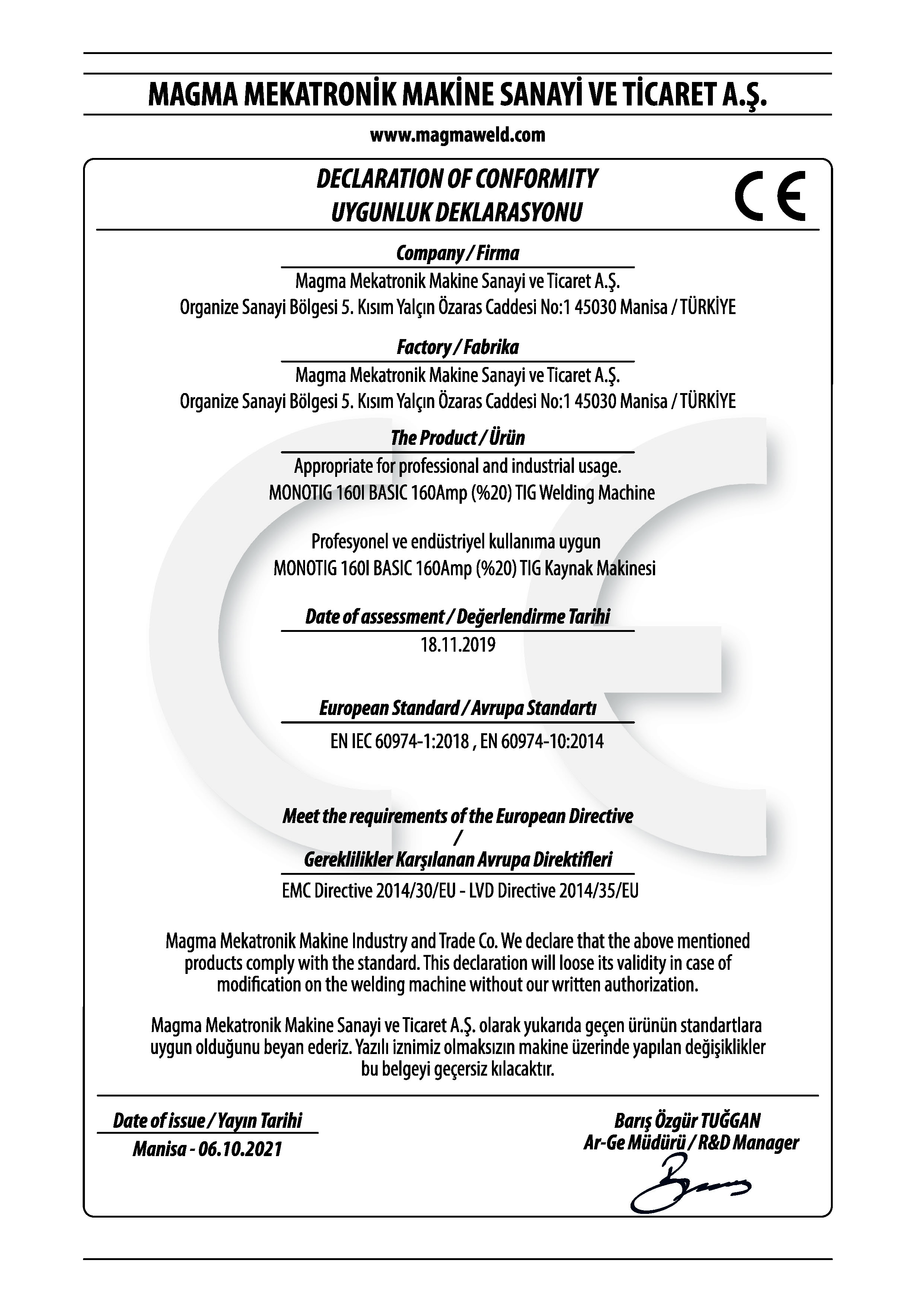

Approvals & Certificates

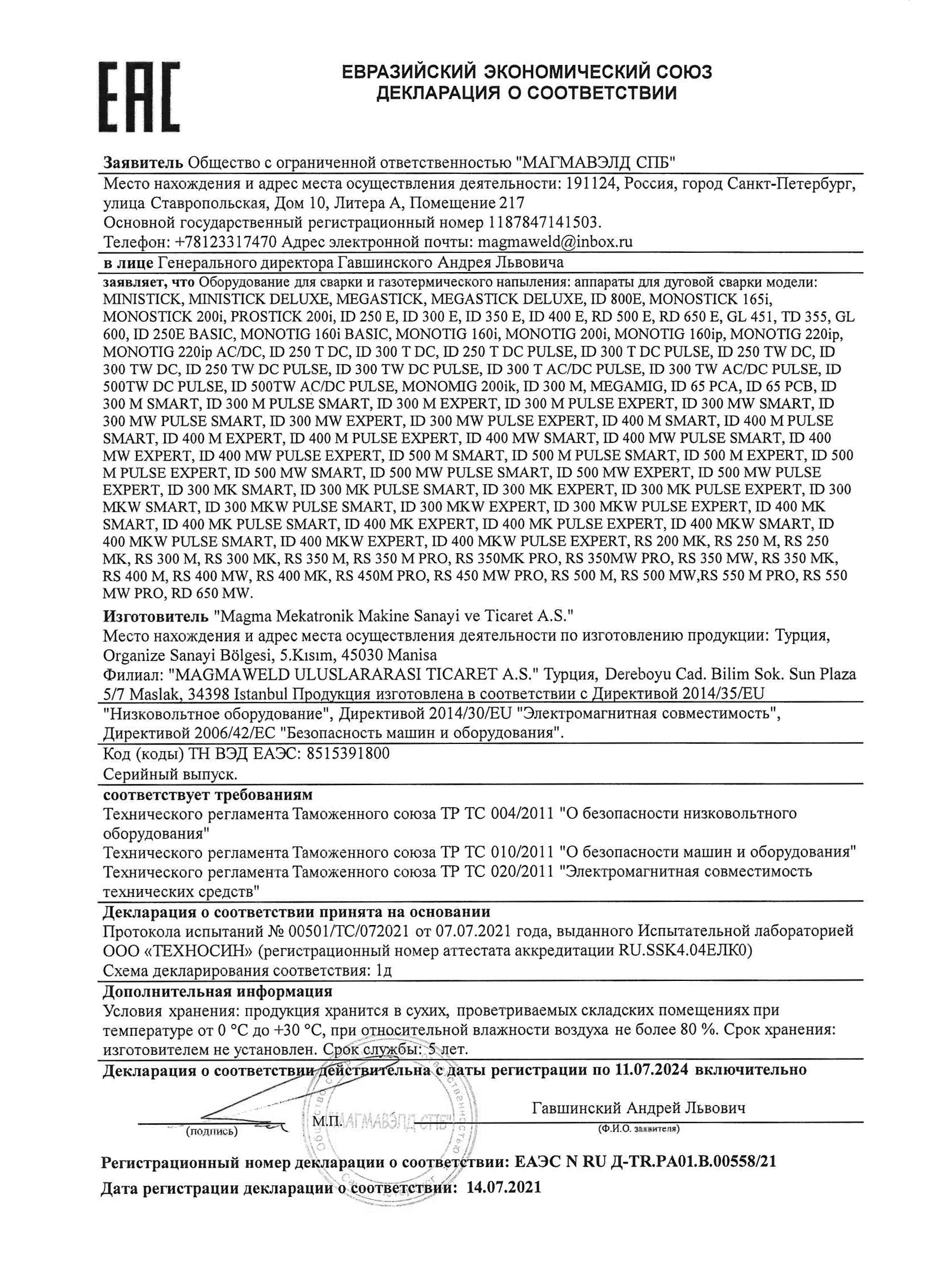

EAC YERLİ MALI CE ROHS
