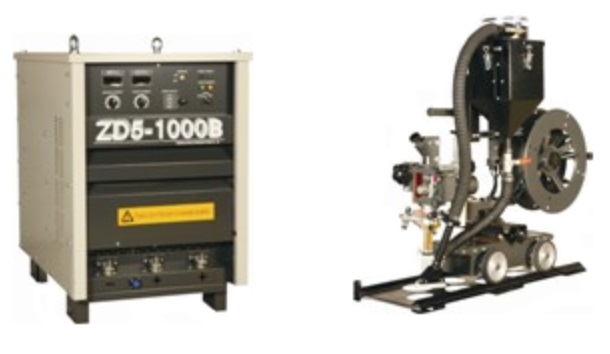

MZ-1000 TRACTOR

Designed to be used 24 hours a day, 7 days a week under heavy working conditions such as steel construction sites, shipyards, pressure tube, longitudinal or spiral pipe manufacturing.
Stable welding current without loss of performance due to electric line fluctuations, ambient temperature changes or long welding and electrical cables.
Welding Voltage, Wire Feed Speed, Tractor Speed are controlled and monitored through digital displays on the control box. Optionaly positioners, rollers, linear benches can be controlled and monitored as well.
Crater current, crater voltage, flashback time adjustments.
Tractor supports wire spools up to 435 mm diameter and 25 kg weight and 8 Lt flux hopper.
2 Rails each 1.8 m is standard.
In addition to Subarc Welding (SAW) process, Electroslag Welding (ESW) Carbon Gauging (CAC), Stick Electrode Welding (SMAW) processes can also be performed.
The power supply is fan-cooled and has thermal protection against overheating.
Flux recovery unit is optional.
Standard accessories come with the machine.

Power Source
Dimensions (l x w x h)	900 x 520 x 850	mm
Weight (Net)	104	kg
Wire Diameter	2.00 - 3.20 - 4.00 - 4.80	mm
Arc Delivery	Temas Sürtme
Welding Speed	0.15 - 1.25	m/dk
Welding Head Vertical Displacement Range	100 x 120 (Boyuna x Enine)
Kaynak Kafası & Traktör Arası Dönüs Açısı	360
Welding Head Rotating Angle (Right-Left)	45
Welding Head Rotating Angle (Fore-Aft)	45
Flux Holding Capacity	8	lt
Wire Carrying Capacity	25	kg
Standard Rail Length	2 Adet 1.80 m
Protection Class	IP21S
Wire Feeder System
Wire Feeding Speed	0.34 - 3.40	m/dk

Code	Name	Dimension	Standard/Optional
Y533000013	CONTROL CABLE - TRACTOR	15 m	Standard
K301100615	Workpiece Cable	70mm2/15mt	Standard
7930002001	SAW Carridge Rail	1,8 METER	Standard
7930001002	Flux Recovery Unit for SAW Carridge	MZ-1000BF	Optional
