Rd 500 E

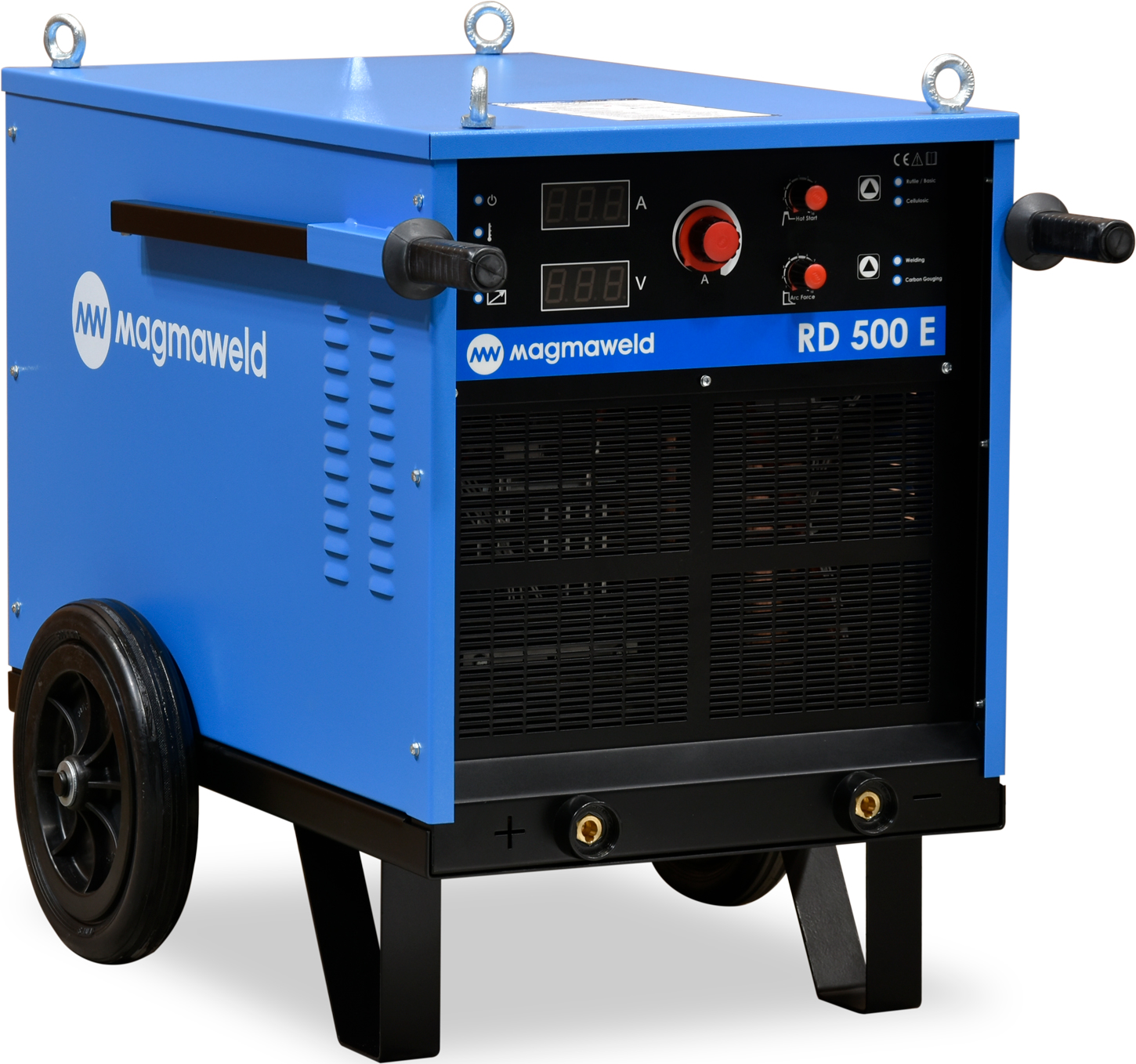

RD 500 E

Products :
General
Technical Details
Accessories
DOCUMENTS
  • Operates with 3 Phase 400V-50/60 Hz mains voltage and generators, tolerates voltage fluctuations up to 10%.
  • Excellent welding characteristics for Rutile, Basic, Cellulosic electrodes up to 6.0 mm.
  • Welding current is adjusted by the potentiometer knob on the front panel or by the remote control box. Set values and Real values of current and voltage during welding are digitally monitored from the front panel.
  • Advanced Stick Electrode options; Hot Start for easy ignition, Arc Force for arc stability, Anti Stick to prevent electrode sticking.
  • Stable welding current without loss of performance due to electric line fluctuations or with long welding and electrical cables.
  • Due to its large wheels and telescopic arms, easy mobility on rough floor conditions.
  • Fan cooling and thermal protection against overheating.
  • Standard accessories come with the machine.
Power Source
Mains Voltage (3Ph) 400 V
Input Power 44,8 (%25) kVA
Welding Current Range 10 - 500 A
Nominal Welding Current 500 (%25) A
Open Circuit Voltage 85 V
Electrode Diameter 2.00 - 6.00 mm
Carbon Electrode Diameter 8.00 mm
Dimensions (l x w x h) 830 x 670 x 760 mm
Weight (Net) 205 kg
Protection Class IP21
Code Name Dimension Standard/Optional
7906407005 Electrode Clamp And Cable 70mm2/5mt (35 socket) Standard
7905407003 Ground Clamp And Cable 70mm2/3mt (35 socket) Standard
7908201000 Carbon Cutting Torch 1000 A Optional
7900000250 REMOTE CABLE 50MT Optional
7900000240 REMOTE CABLE 40MT Optional
7900000230 REMOTE CABLE 30MT Optional
7900000220 REMOTE CABLE 20MT Optional
7900000210 REMOTE CABLE 10MT Optional
Product Brochure
PDF
Operating Manual
PDF Search
Additional Documents

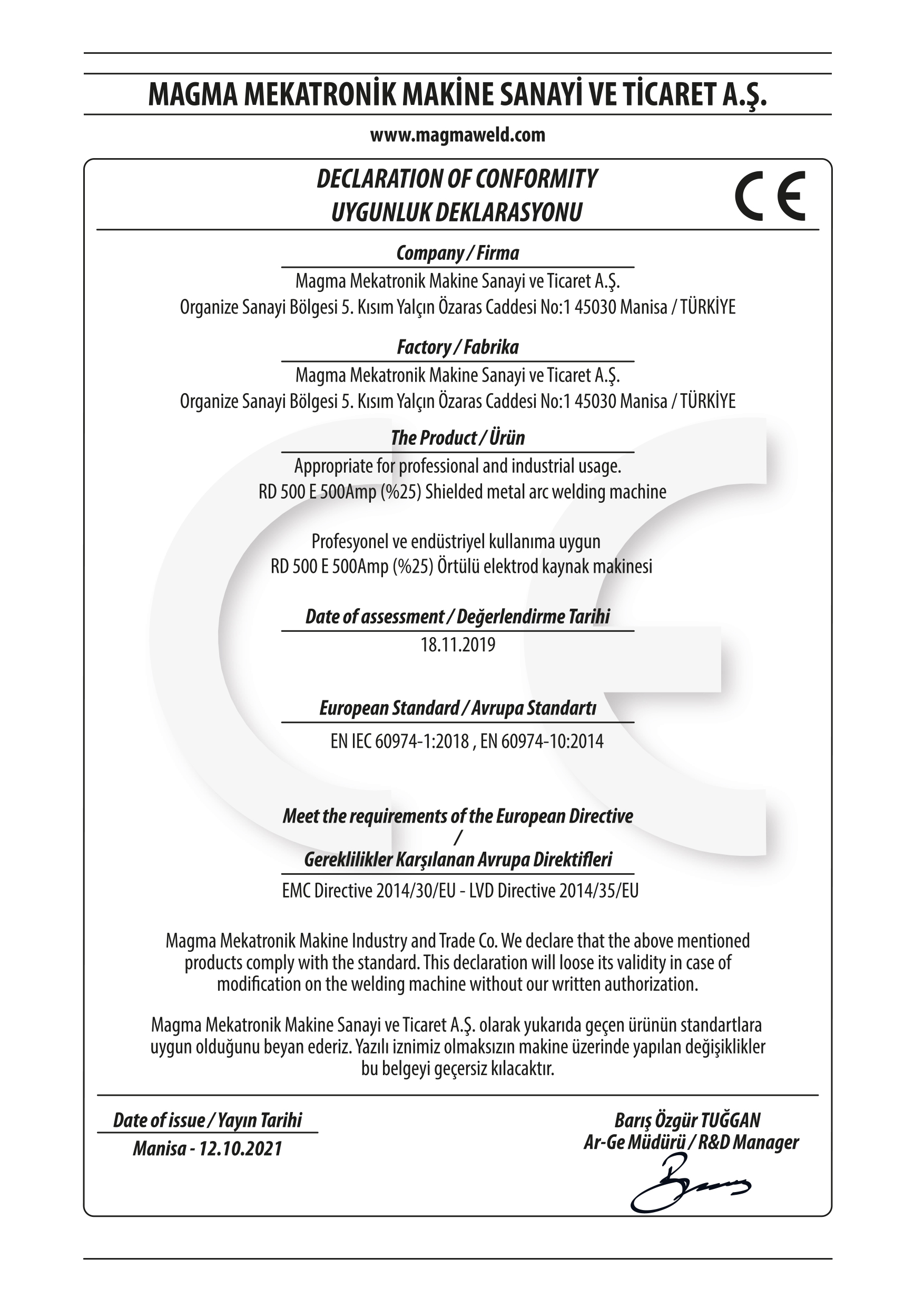

Approvals & Certificates

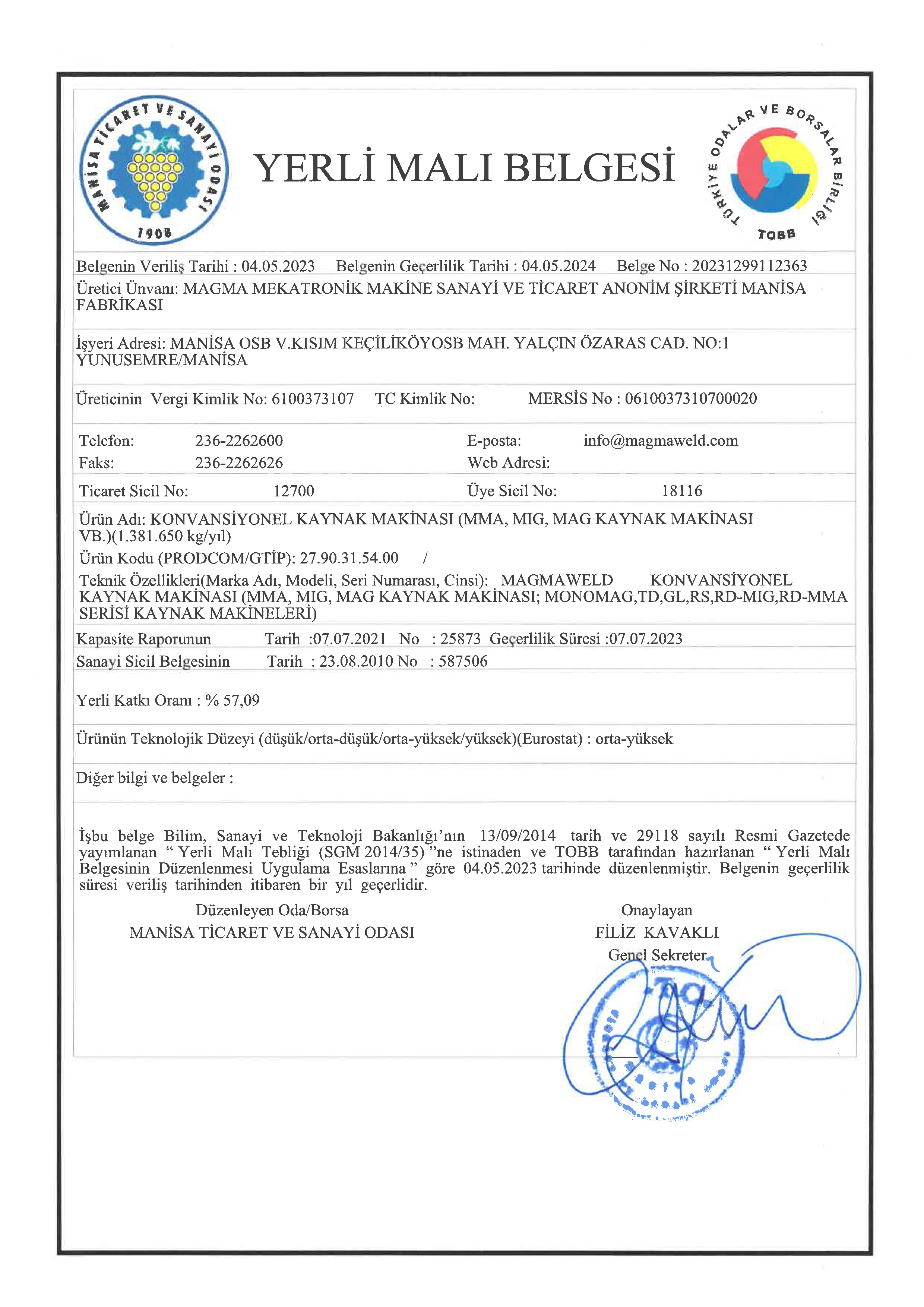

CE ROHS YERLİ MALI EAC
