Rs 200 Mk

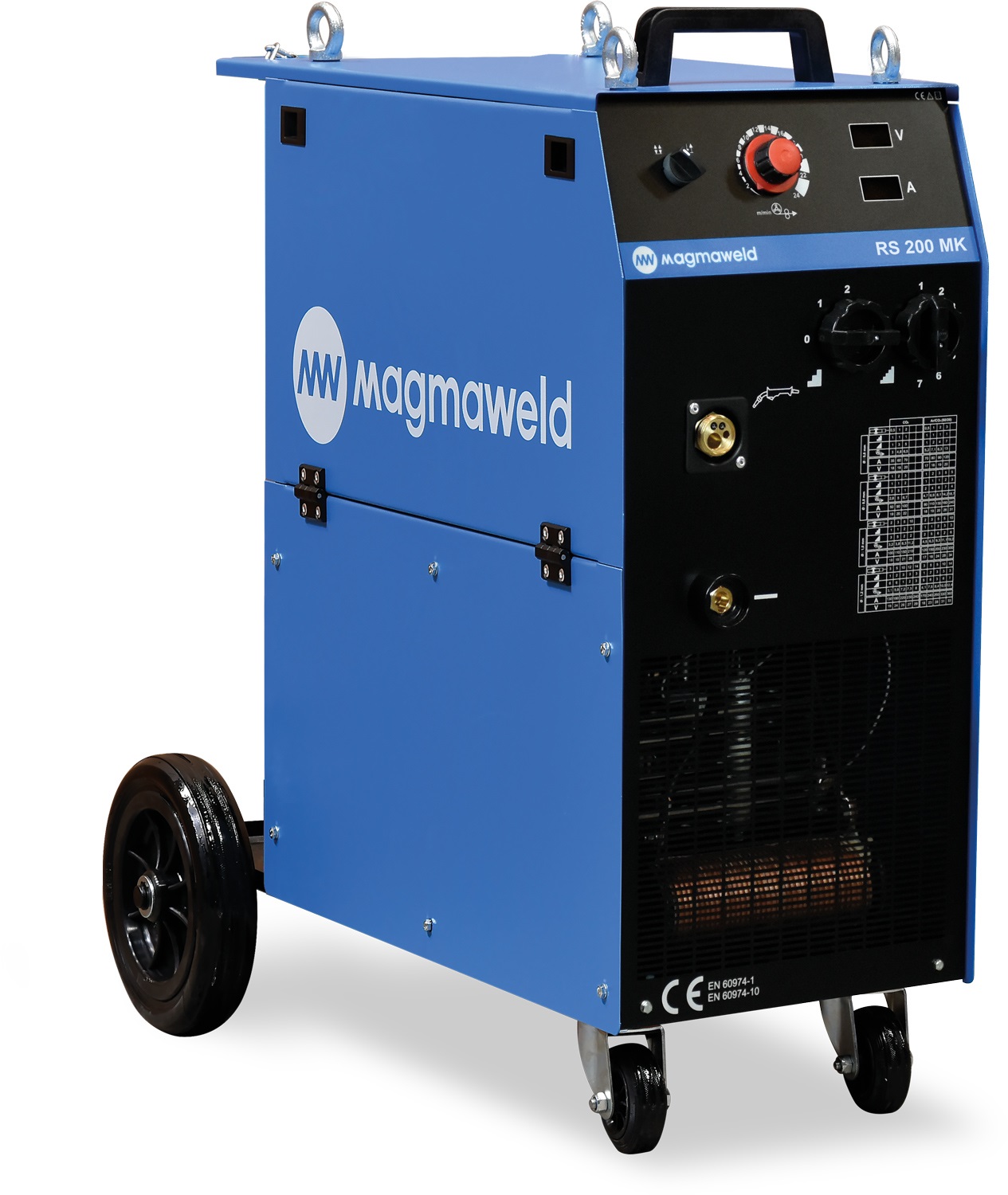

RS 200 MK

Products:

General
Technical Details
Accessories
DOCUMENTS
  • RS 200MK is suitable for manufacturing with thin steel profiles and metal sheets .
  • Excellent welding characteristics with all types of solid and flux cored wires with CO2 or Mix gases.
  • Welding voltage and wire feed speed (corresponding to welding current) are set on the front panel. Optimum welding parameters can be selected from the table on the front panels. RS200MK has digital V, A Meters.
  • Manual wire feeding & gas valve buttons, Soft Start, Pre-Gas, Post-Gas, Burn-Back timer settings are in the wire feeding cabinet.
  • RS 200MK works with 2/4 torch trigger mode .
  • ø300 mm, ø270 mm and ø200 mm spools and drums of any size can be used.
  • 220V AC outlet for CO2 gas heater.
  • Built in gas cylinder platform with large wheels to ease mobility in workshops.
  • Fan cooling and thermal protection against overheating.
  • Standard accessories come with the machine.
Power Source
Mains Voltage (3Ph) 400 V
Input Power 7.9 (%23) kVA
Welding Current Range 40 - 240 A
Nominal Welding Current 240 (%23) A
Open Circuit Voltage 17 - 36 V
Voltage Adjustment Steps 2 x 7
Dimensions (l x w x h) 890 x 460 x 950 mm
Weight (Net) 101 kg
Protection Class IP21
Wire Feeder System
Welding Wire Diameter 0.60 - 1.00 mm
Standard Roller Groove Size 0.80 - 1.00 mm
Wire Feeder Roller Diameter 37 mm
Wire Feeding Speed 1 - 24 m/dk
Torch Trigger Control 2 / 4
Spool Capacity 20 kg
Code Name Dimension Standard/Optional
7907000002 Gas Hose 2 Meters Standard
7905212503 Ground Clamp And Cable 25mm2/3mt (35 socket) Standard
7120020003 LAVA MIG 25-3 230A (%60 CO2) - 3m Optional
7020009002 CO2 Heater MAGMAWELD(220V-75W) Optional
7020001005 CO2 Regulator W21,8x1/14'' Bottom Adjustment Optional
7020001004 Argon Regulator G5/8'' Bottom Adjustment Optional
Product Brochure
PDF
Operating Manual
PDF Search
Additional Documents
Wire Feed Unit Quick User Manual

Quick Start

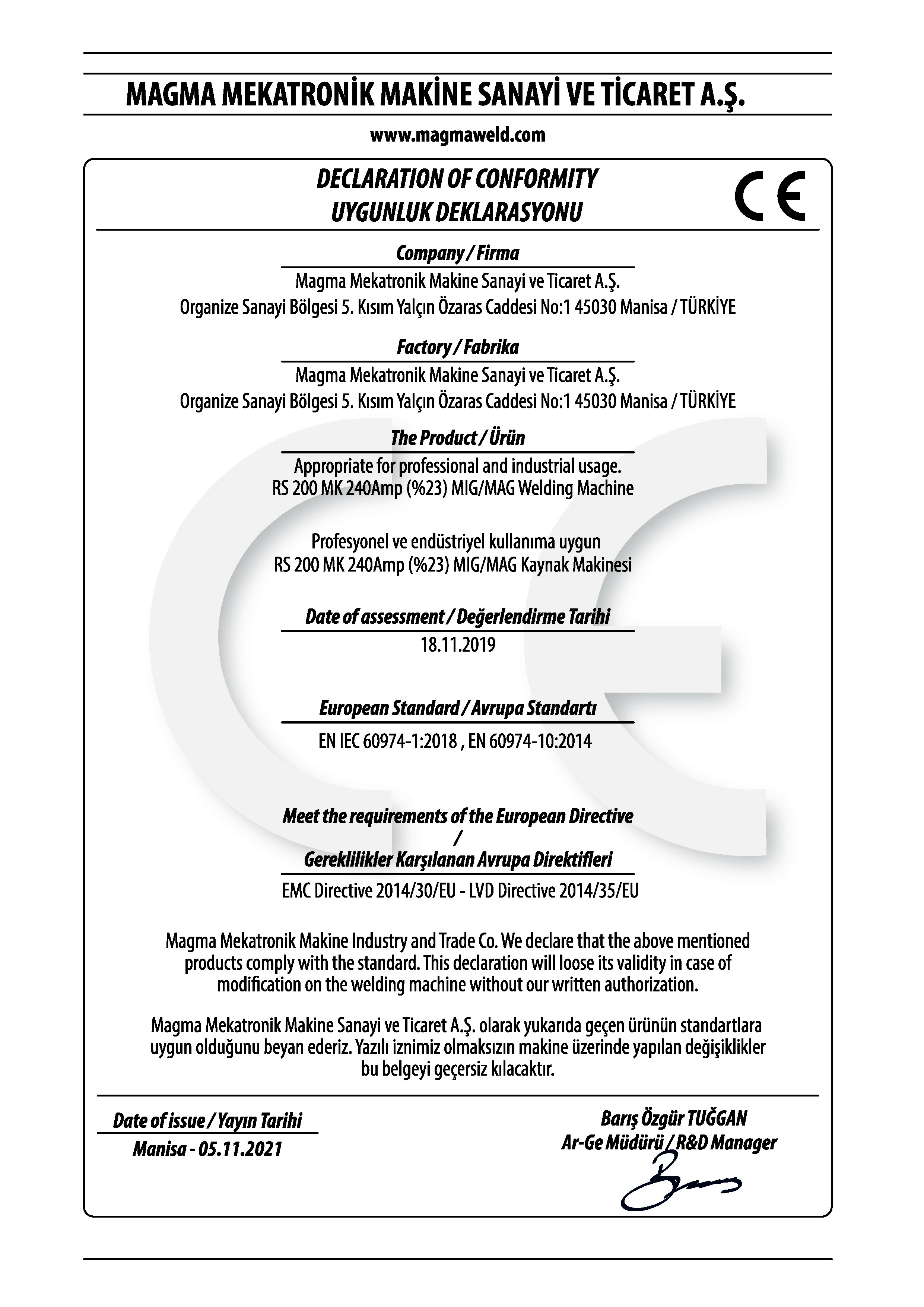

Approvals & Certificates
EAC CE YERLİ MALI
