Rs 350 M-5

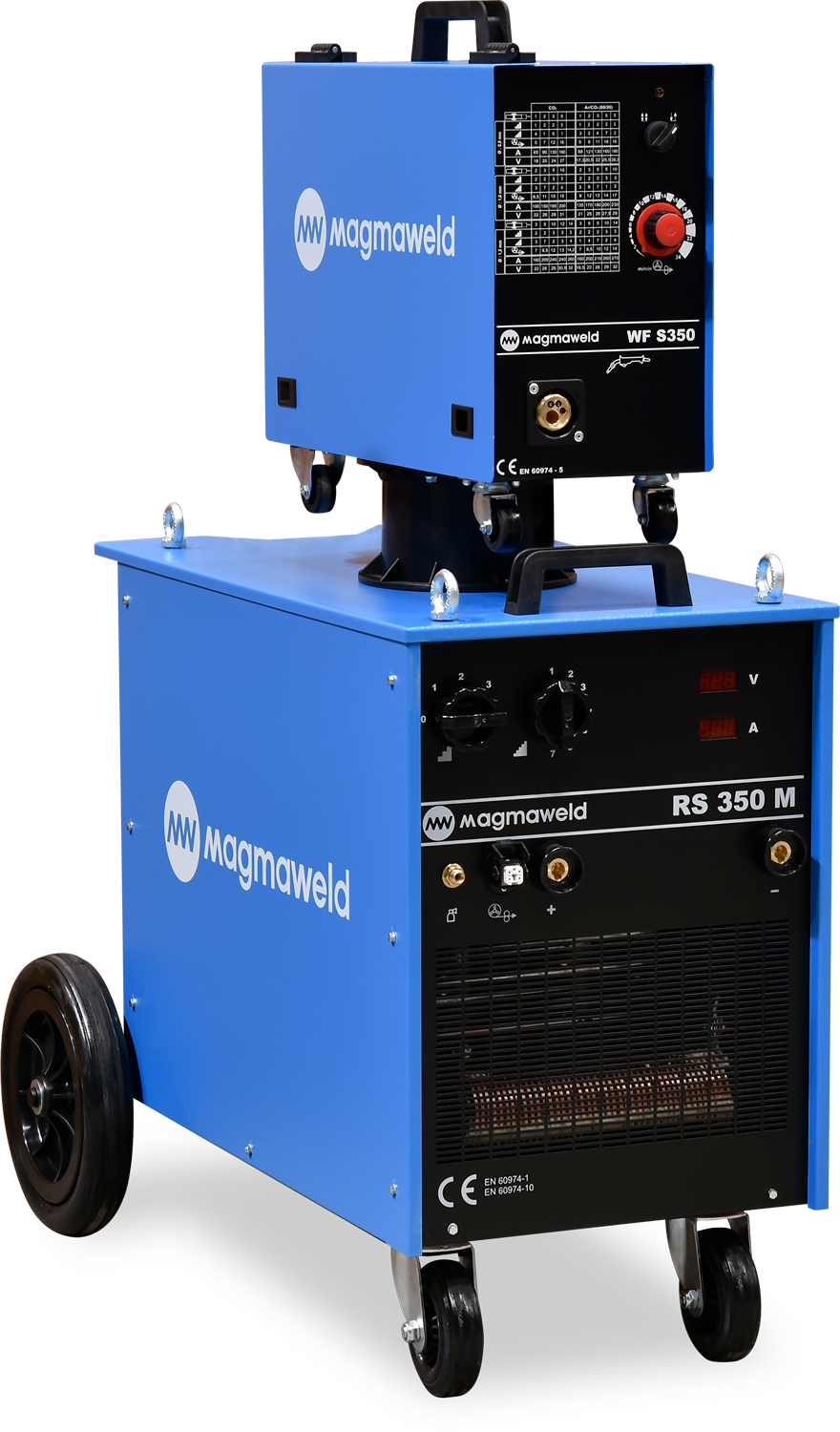

RS 350 M

Products:

General
Technical Details
ACCESSORIES
DOCUMENTS
  • Operates with 3 Phase 400V-50/60 Hz mains voltage and generators, tolerates voltage fluctuations up to 15%.
  • Excellent welding characteristics with all types of solid and flux cored wires with CO2 or Mix gases.
  • Separate wire feeding units are standard. Closed Cabinet and Small-D200 (5Kg) Spool Wire Feeder.
  • Powerful Digital Displays are closer to the welder.
  • 4 roll drive system offers good feedability with long torches and offers less deformation on soft wires such as aluminum and flux cored wires.
  • The Separate wire feeder standard harness length is 5 m and can be extended up to 30 m upon request.
  • Optimum welding parameters can be obtained from the printed table inside of the wire feed cover.
  • Wire feed speed adjustment, 2/4 trigger selection, Soft Start, Pre-Gas, Post-Gas, Burn-Back timer adjustments. During welding, voltage and current are monitored on digital displays.
  • Welding voltage is adjusted from the course and fine switches; increments are optimized to obtain welding parameters with lowest spatter levels.
  • Manual wire feeding & gas valve buttons are in the wire feeding cabinet.
  • ø300 mm, ø270 mm and ø200 mm spools and drums of any size can be used.
  • 220V AC outlet for CO2 gas heater.
  • Multiple workpiece connections (Inductance outlets) enables optimum parameter adjustment for low spatter welding.
  • Built in gas cylinder platform with large wheels to ease mobility in workshops.
  • Standard accessories come with the machine.
GUC KAYNAGI
Mains Voltage (3Ph) 400 V
Input Power 15,6 (%40) kVA
Welding Current Range 60 - 350 A
Nominal Welding Current 350 (%40) A
Open Circuit Voltage 20 - 52 V
Voltage Adjustment Steps 3 x 7
Dimensions (l x w x h) 1008 x 592 x 1220 mm mm
Weight (Net) 145.5 Kg.
Protection Class IP21
WIRE DRIVE UNIT
Welding Wire Diameter 0.80 - 1.20 mm
Standard Roller Groove Size 1.00 - 1.20 mm
Wire Feeder Roller Diameter 37 mm
Wire Feeding Speed 1 - 24 m/dk
Torch Trigger Control 2 / 4
Spool Capacity 20 KG
CODE pcs Dimension Standard/Optional
7907000002 GAZ HORTUMU 2 Meters STANDARD
7905203505 Ground Clamp And Cable 35mm2/5mt (35 socket) STANDARD
7120040003 LAVA MIG 40-3 340A (%60 CO2) - 3m Optional
7120035003 LAVA MIG 35-3 320A (%60 CO2) - 3m Optional
7020009002 CO2 HEATER MAGMAWELD(220V-75W) Optional
7020001005 CO2 Regulator W21,8x1/14'' Bottom Adjustment Optional
7020001004 Argon Regulator G5/8'' Bottom Adjustment Optional
Product introduction
PDF
KULLANMA KILAVUZU
PDF Search
Additional Documents
Wire Feed Unit Quick User Manual

Quick Start

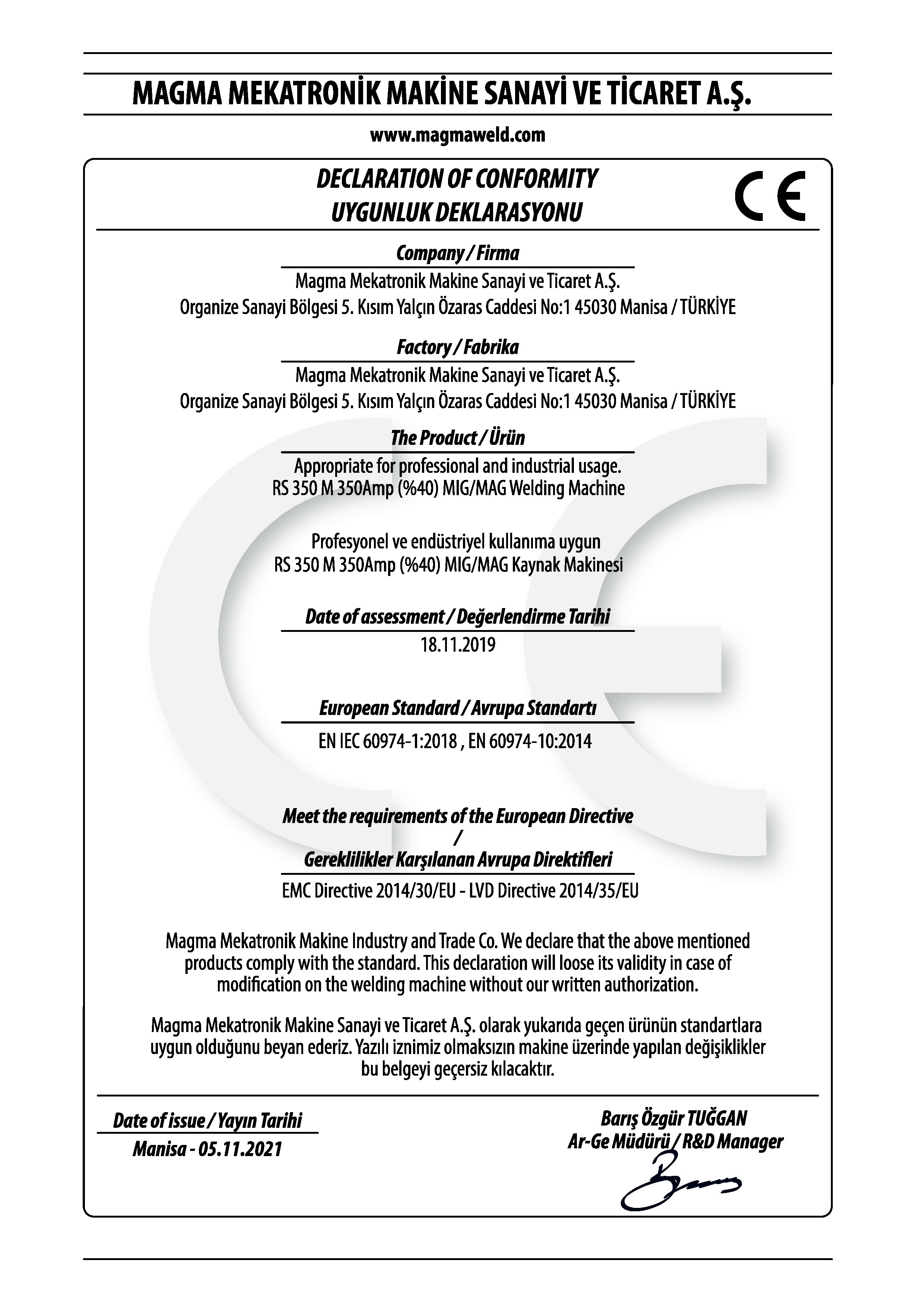

Approvals & Certificates
EAC CE YERLİ MALI
