EH 325

Standards

EN 14700 E Fe1
TS EN 14700 E Fe1
DIN 8555 E 1-UM-250

Özellikleri ve Uygulama Alanları

Thick basic-covered electrode for producing build-up, buffer and hardfacing deposits of medium hardness, which can be machined by chip-forming. Particularly suited for build-up, buffer and hardfacing of wear resisting parts subjected to metal-to-metal wear, heavy impact and shock. Can easily be welded in all positions, except vertical-down. Weld metal is high crack resistant and free of pores.DC, electrode in positive (+) is preferred and possible to use also in AC.

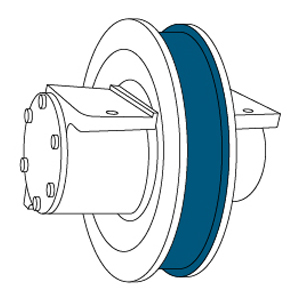

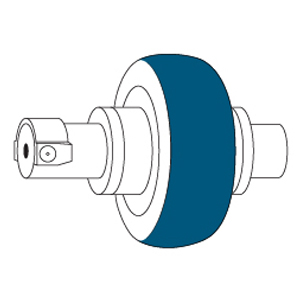

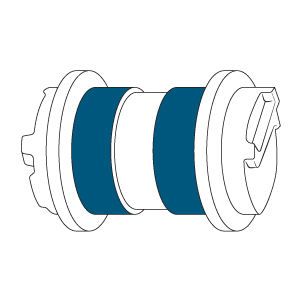

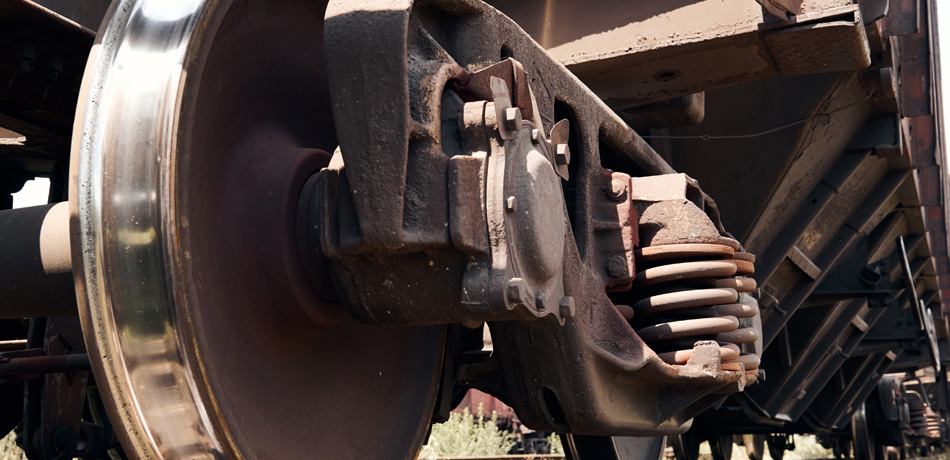

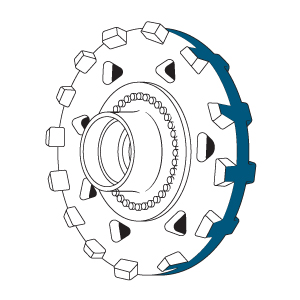

Typical Applications: Suitable for reconditioning of rails, rail crossings, switch points, sprockets and wearing parts, such as rope pulleys, tumblers, rollers, caterpillar track rollers and links, wheel flanges, stud links and others.
Eh 325 Sert Dolgu

Dayanım Gösterdiği Aşınma Tipleri


Abrasion

Adhesion

Impact

Sıcaklık

Corrosion
Düşük
Medium
Yüksek
Çok Yüksek

Typical Applications

Eh 325 Model Tipik Uygulamalar Eh 325 Model Tipik Uygulamalar Eh 325 Model Tipik Uygulamalar Eh 325 Model Tipik Uygulamalar

Kaynak Metalinin Tipik Kimyasal Özellikleri

Type of AnalysisCSiMnCr
Weld Deposit0.200,500.801.00

Application Information

Kullanılabilecek Kaynak Pozisyonları :
Eh 325 Kaynak Pozisyonu Eh 325 Kaynak Pozisyonu Eh 325 Kaynak Pozisyonu Eh 325 Kaynak Pozisyonu Eh 325 Kaynak Pozisyonu Eh 325 Kaynak Pozisyonu

Polarity:

Eh 325 Kutuplama DC(+)

Welding Parameters & Efficiency :

Çap x Uzunluk (mm)Akım (A)Weld Deposit(Kg)/1Kg Consumed ElectrodeNumber of Electrodes/1Kg Weld DepositKaynak Metali Yığma Hızı (kg/saat)Efficiency(%)
3.25x350100-1400,67471,2114
4.00x450140-1800,68231,2112
5.00x450170-230

Packaging Information

Ürün KoduÇap X Uzunluk (mm)Pieces per Box (~)Kutu Ağırlığı (kg)Number Of Boxes Per PackageKoli AğırlığıPackaging Type
18002NREM23.25x3501435.0315.4Cardboard Box
18002SFEM24.00x450956.5320.4Plastic Box
18002VSEM25.00x450686.5319.9Cardboard Box

Storage & Re-Drying Information

>It has to be dried at 350°C for 2 hours.
