EH 335

Standards

EN 14700 E Fe1
TS EN 14700 E Fe1
DIN 8555 E 1-UM-350-P

Özellikleri ve Uygulama Alanları

Thick basic-covered electrode for hardfacing of parts especially subjected to metal-to-metal wear, heavy impact and shock. Electrode deposits weld metal with medium hardness, which can be machined by chip-forming. Can easily be welded in all positions, except vertical-down. Weld metal is high crack resistant and free of pores. DC, electrode in positive (+) is preferred and possible to use also in AC.

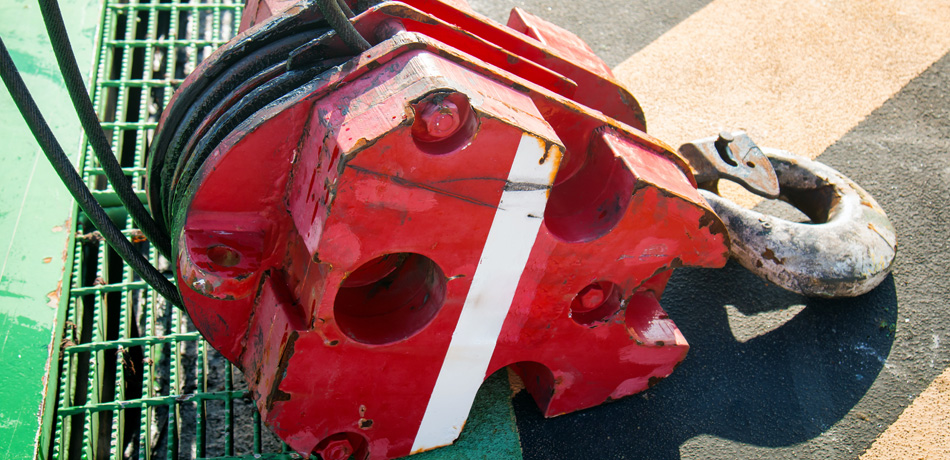

Typical Applications: Suitable for reconditioning of rails, rail crossings, switch points, sprockets and wearing parts, such as rope pulleys, tumblers, rollers, caterpillar track rollers and links, wheel flanges, stud links and others.
Eh 335 Sert Dolgu

Typical Applications

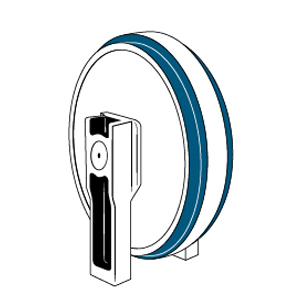

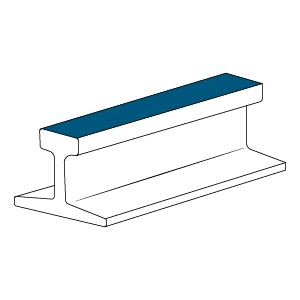

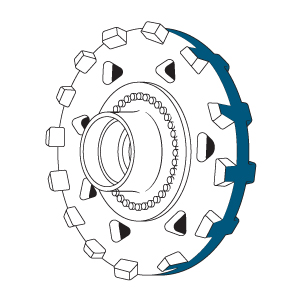

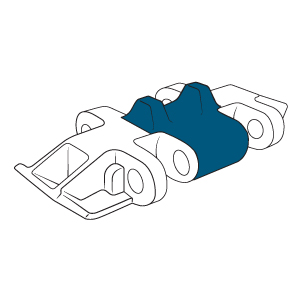

Eh 335 Model Tipik Uygulamalar Eh 335 Model Tipik Uygulamalar Eh 335 Model Tipik Uygulamalar Eh 335 Model Tipik Uygulamalar

Kaynak Metalinin Tipik Kimyasal Özellikleri

Type of AnalysisCSiMnCr
Weld Deposit0.130.801.002.50

Kaynak Metalinin Tipik Mekanik Özellikleri(%)

Test ŞekliHardness (HRc)
Kaynak Sonrası40

Application Information

Kullanılabilecek Kaynak Pozisyonları :
Eh 335 Kaynak Pozisyonu Eh 335 Kaynak Pozisyonu Eh 335 Kaynak Pozisyonu Eh 335 Kaynak Pozisyonu Eh 335 Kaynak Pozisyonu Eh 335 Kaynak Pozisyonu

Polarity:

Eh 335 Kutuplama DC(+)

Welding Parameters & Efficiency :

Çap x Uzunluk (mm)Akım (A)Weld Deposit(Kg)/1Kg Consumed ElectrodeNumber of Electrodes/1Kg Weld DepositKaynak Metali Yığma Hızı (kg/saat)Efficiency(%)
2.50x35060-900,65790,8114
3.25x350100-1400,67471,2114
4.00x450140-1800,66231,18112

Packaging Information

Ürün KoduÇap X Uzunluk (mm)Pieces per Box (~)Kutu Ağırlığı (kg)Number Of Boxes Per PackageKoli AğırlığıPackaging Type
18004HREM22.50x3502335.0315.4Cardboard Box
18004NREM23.25x3501475.0315.4Cardboard Box
18004SSEM24.00x450956.5319.9Cardboard Box
