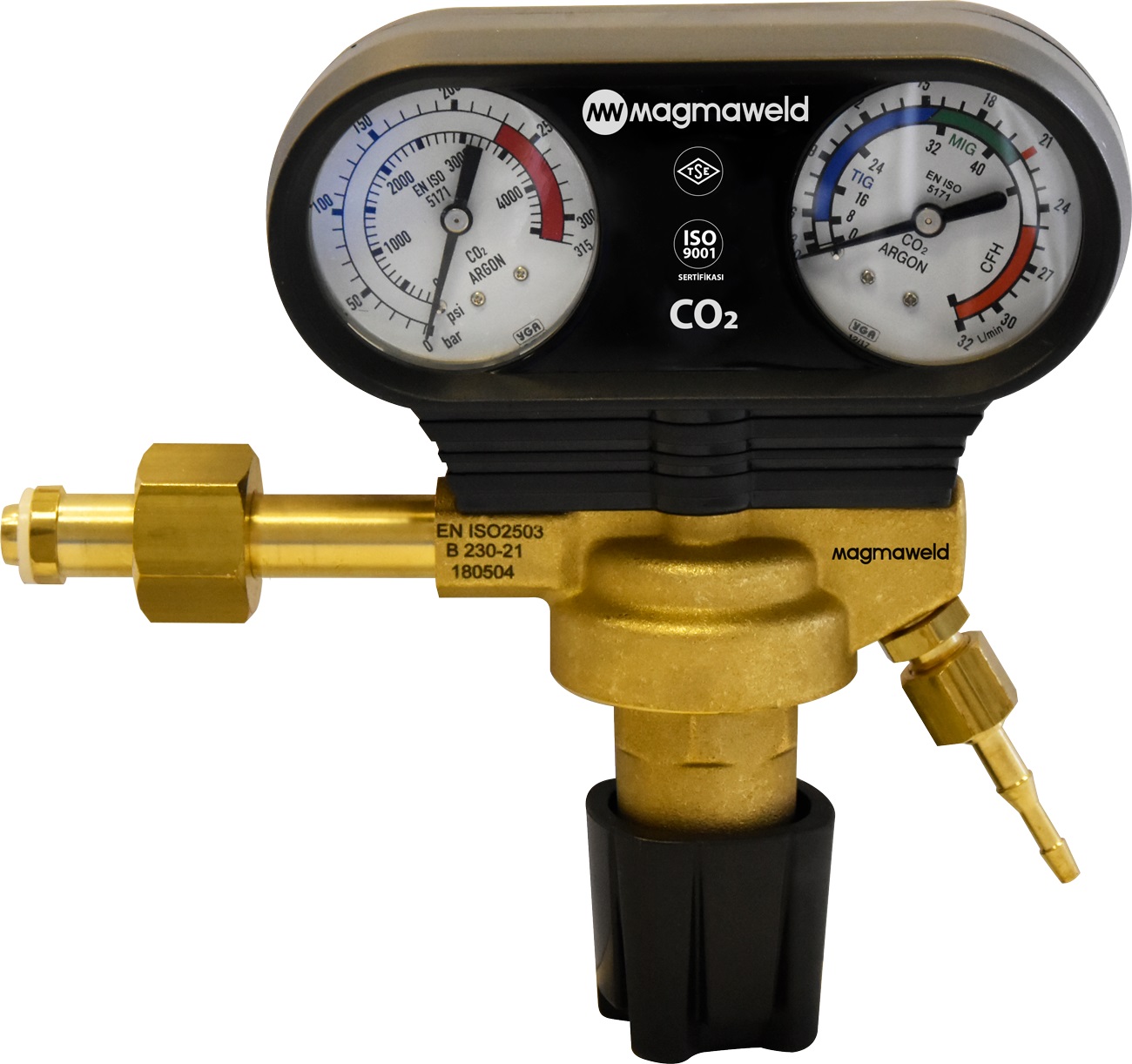

CO2 PRESSURE REGULATOR W21,8x1/14'' Bottom Adjustment

Products :

GENERAL FEATURES

TECHNICAL SPECIFICATIONS

Magmaweld pressure reducer reduces the gas at high pressure in the cylinder to the required usage pressure and keeps it balanced. It should be used for carbon dioxide cylinder.

TIG, MIG/MAG, Plasma Welding, Plasma Cutting, shielding gas applications
Compliance with EN ISO 2503 standard
Stainless filter that increases product life
Brass cover and body design
Manometer housing with registered design
Improved insurance system that ensures safety
Design with flow manometer
Ø4 - Ø6 mm hose fitting
Gas inlet fitting connection designed to suit all cylinder protections
It is recommended to use a heater with MIX gas

Technical Specifications	Data	Unit
Gas Type	CO2
Gas Inlet Pressure	0-230	Bar
Gas Output Flow	0-21	l/dk.
Gas Inlet Connection	W 21,80 x 1/14'	inç
Gas Outlet Connection	G 1/4'	inç
