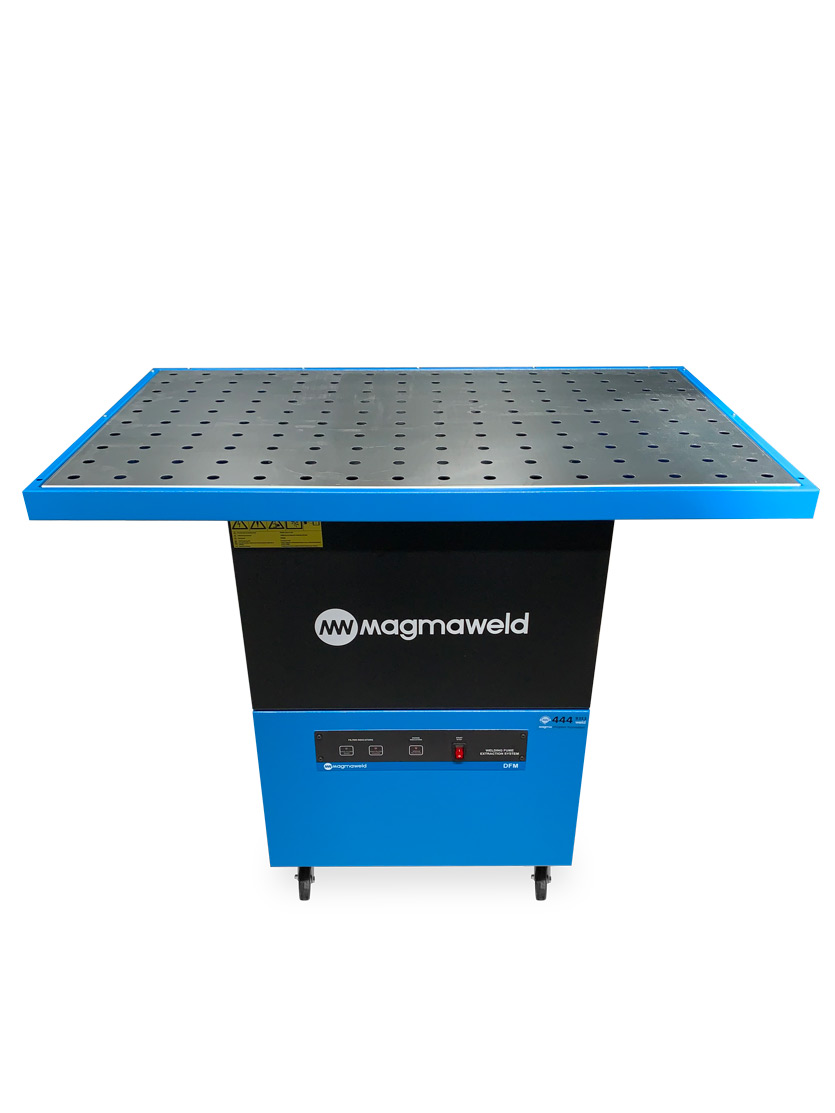

DFM 1500 WELDING TABLE

DFM 1500 WELDING TABLE -

Siperlik Seçiniz:

Ebad Seçiniz:

Product Brochure : PDF
PRODUCT CODES
GENERAL
TECHNICAL SPECIFICATIONS
Designed for the extraction and filtration of welding fumes and dust. Ideal for applications involving workpieces under 15 cm in height and not exceeding the dimensions of the welding table
  • 1000mm x 400mm table
  • Operates on 3-phase 380 V - 50/60 Hz power supply
  • Equipped with G3-class pre-filter and standard F9 main filter
  • Welding fume cleaning F9 filter with %99 efficiency
  • Perforated sheet metal grid ensures effective spark suppression
  • Filter replacement warning lamp for timely maintenance
  • Reverse phase control indicator for safe operation
  • Supplied with a standard 3-meter power cable

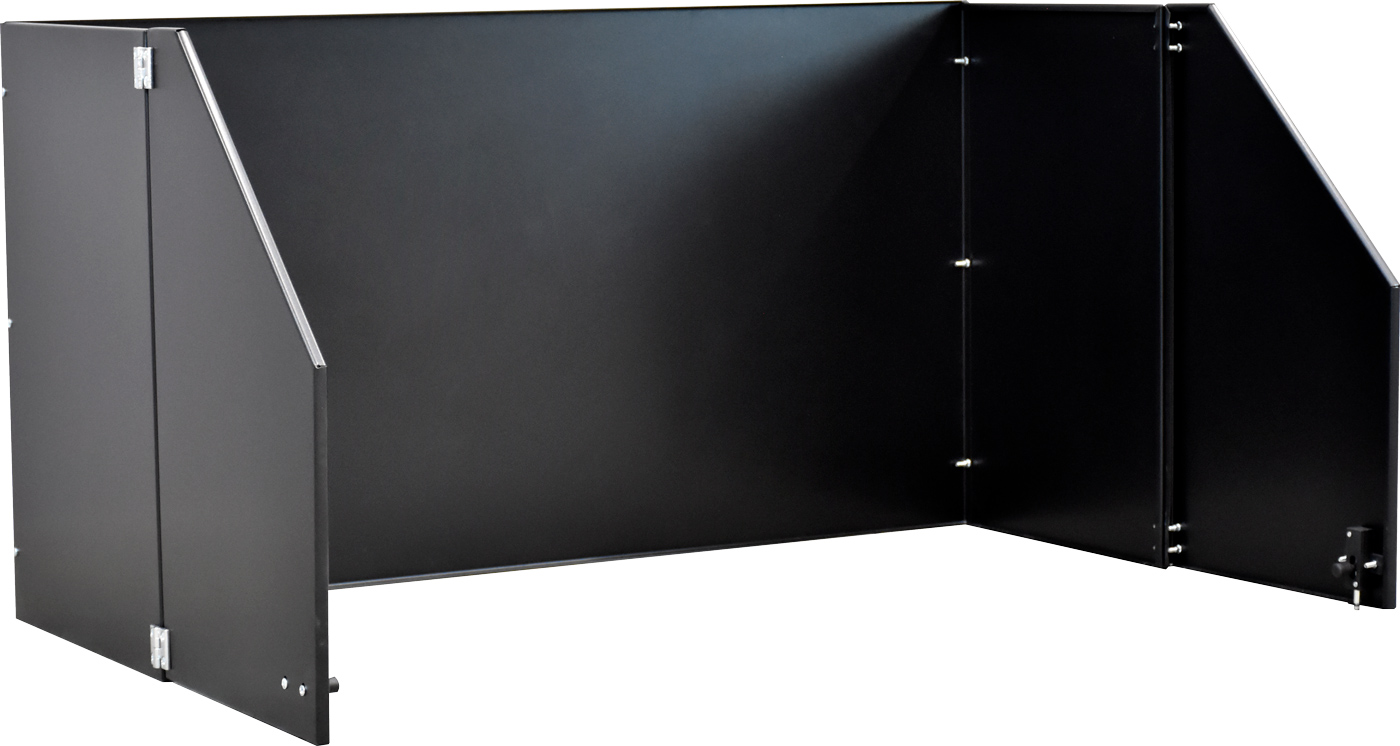

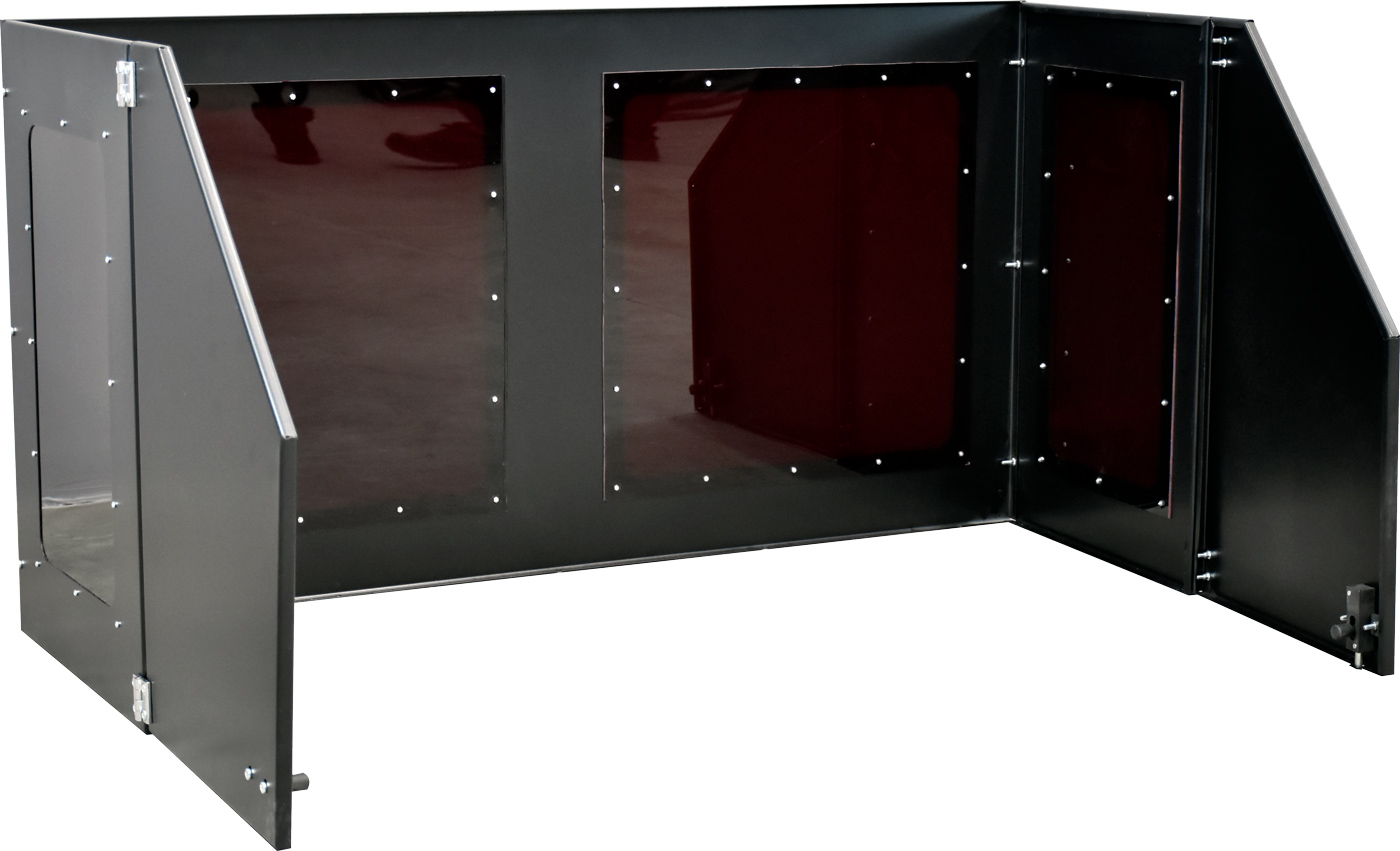

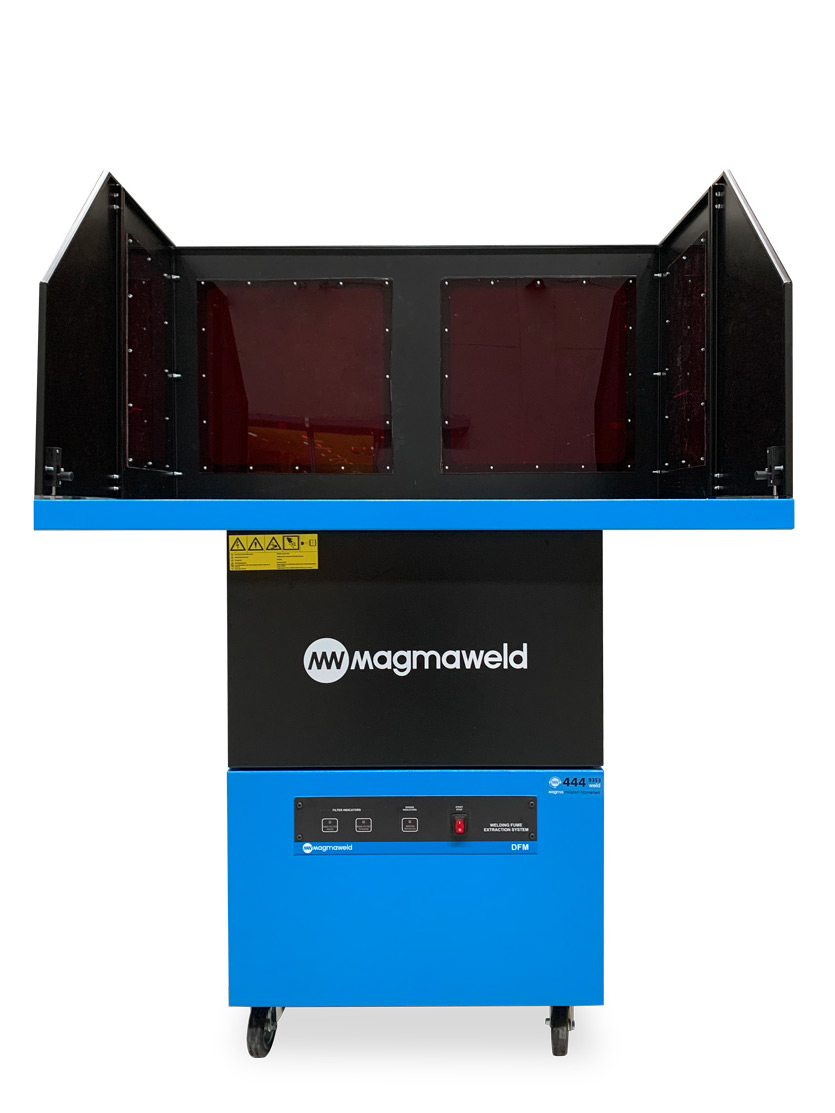

  • Optional shield set available for enhanced protection
  • Optional E12 and H13 main filter upgrades for advanced filtration
Power Source
Mains Voltage (3Ph) 380 / 50-60 Hz V
Input Power from Mains 1.5 kW
Suction Capacity 1100 m³ / saat
Noise Level 72 dB(A)
Filter Efficiency 99 %
Dimensions (l x w x h) 650 x 750 x 1015 mm
Weight (Net) 96 kg
Code Dimension View
8415445M00 DFM 1500 WELDING TABLE - View
