EAL 4047

Standards

AWS/ASME SFA - 5.3 E4047
EN ISO 18273 E Al 4047 (AlSi 12)
TS EN ISO 18273 E Al 4047 (AlSi 12)
TS 9604 EL-AlSi12
DIN 1732 EL-AlSi12
DIN M. No. 3.2585

Materials

DIN Material
G-AlSi 12 3.2581
G-AlSi 12 (Cu) 3.2583
G-AlSi 10 Mg 3.2381
G-AlSi 10 Mg (Cu) 3.2383
G-AlSi 6 Cu 4 3.2151

Properties and Applications

Special coated electrode for aluminium-silicon and aluminium-magnesium-silicon castings. Suitable to use also in aluminium castings, containing up to 12% silicon. Used with DCEP. Hold the electrode perpendicularly to workpiece, with a short arc length, during welding. If the thickness is greater than 10 mm or in large workpieces, preheating shall be applied between 150°C to 250°C. Since slag residues are corrosive, they must be completely removed from the weld bead. Electrode serves well as consumable in oxyacetylene welding. The covering being hygroscopic, electrodes must be stored in an absolutely dry location, or redried if required.
Eal 4047 Sert Dolgu

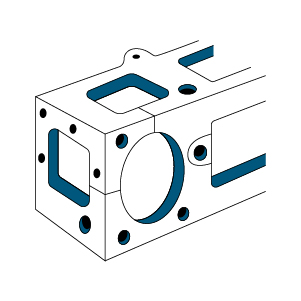

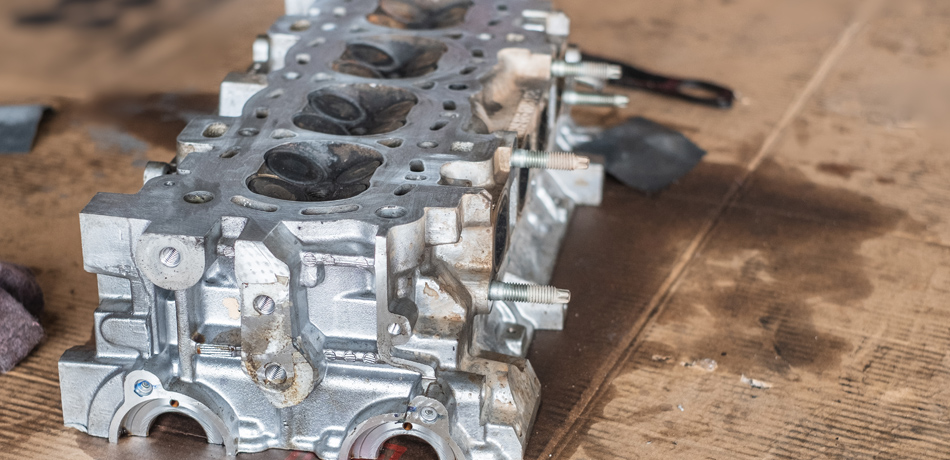

Typical Applications

Eal 4047 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisSiAlCuFe
Weld Deposit12.0087.700.200.30

Typical Mechanical Values of Weld Metal(%)

Test ConditionYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)
As welded802008

Application Information

Welding Positions :
Eal 4047 Kaynak Pozisyonu Eal 4047 Kaynak Pozisyonu Eal 4047 Kaynak Pozisyonu Eal 4047 Kaynak Pozisyonu

Polarity:

Eal 4047 Kutuplama DC(+)

Welding Parameters & Efficiency :

Packaging Information

Product CodeDiameter X Length (mm)Pieces per Box (~)Weight Of The Box (kg)Number Of Boxes Per PackageWeight Of The PackagePackaging Type
14002HYEM22.50x3502242.048.7Tin Box
14002NYEM23.25x3501462.036.5Tin Box
14002QYEM24.00x3501022.048.7Tin Box

Storage & Re-Drying Information

>It has to be dried at 120°C for 2 hour.
