EH 247

Standards

AWS/ASME SFA - 5.13 E FeMn-C
AWS/ASME SFA - 5.13 ~E FeMn-A
EN 14700 E Z Fe9
TS EN 14700 E Z Fe9
DIN 8555 ~E 7-UM-200-KP

Properties and Applications

High recovery (120%), austenitic manganese steel electrode for hardfacing and joining of high manganese steels. Due to it excellent impact resistance, particularly suited for parts which are subjected to heavy impact, shock and cavitation. The addition of Ni and Cr alloys, increases the resistance against cracks and abrasion. Weld metal work hardens by cold-working. During welding, the workpieces should not become too hot and it shall be cooled down, when necessary. High welding currents and wide-weave beads must be avoided. Machining is possible with tungsten carbide tipped tools.

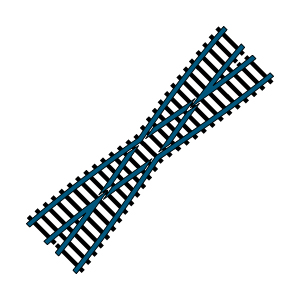

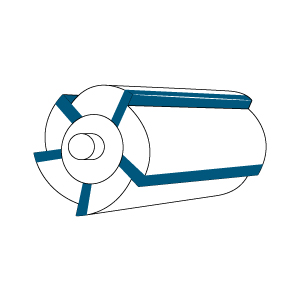

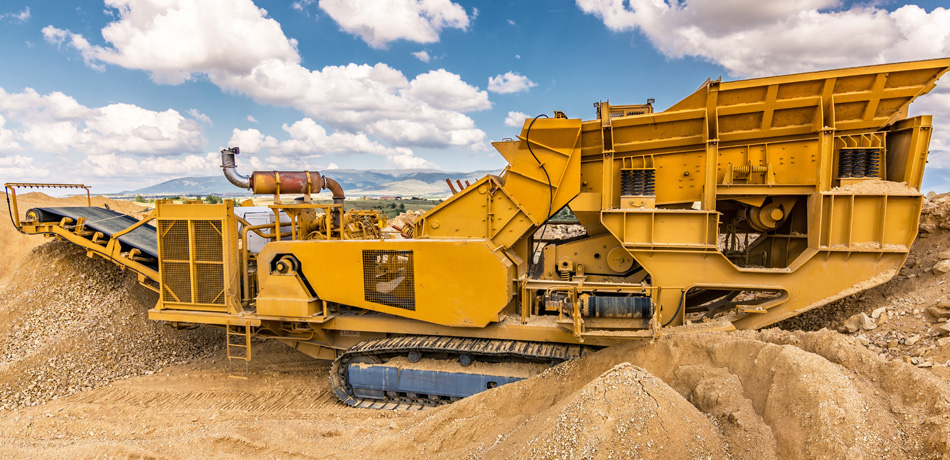

Typical Applications: Suitable for hardfacing and repair welding of dredge pumps, hydraulic press pistons, crane wheels, rail crossings, crusher jaws, excavator and grab teeth, mill hammers, rock crusher.
Eh 247 Sert Dolgu

Wear Resistance Types and Microstructure


Abrasion

Adhesion

Darbe

Temperature

Corrosion
Düşük
ORTA
Yüksek
Çok Yüksek

Typical Applications

Eh 247 Model Tipik Uygulamalar Eh 247 Model Tipik Uygulamalar Eh 247 Model Tipik Uygulamalar Eh 247 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrNiFe
Weld Deposit0.700.4013.503.303.1079.00

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HB)
As welded225
After Cold Working450

Application Information

Welding Positions :
Eh 247 Kaynak Pozisyonu Eh 247 Kaynak Pozisyonu Eh 247 Kaynak Pozisyonu

Polarity:

Eh 247 Kutuplama

Welding Parameters & Efficiency :

Diameter x Length (mm)Current (A)Weld Deposit(Kg)/1Kg Consumed ElectrodeNumber of Electrodes/1Kg Weld DepositWeld Metal Deposition Rate (Kg/h)Verimlilik(%)
3.25x350100-1300,59481,34113
4.00x450140-1800,59231,58113

Packaging Information

Product CodeDiameter X Length (mm)Kutudaki Miktar (yakl)Kutu Net Ağırlığı (kg)Number Of Boxes In PackageKoli Net Ağırlığı (kg)Packaging Type
18019NDEM23.25x35070 ad2.538.1Plastic Box
18019SFEM24.00x45087 ad6.5320.4Plastic Box

Storage & Re-Drying Information

>It can be dried maximum 5 times.
>It has to be dried at 350°C for 2 hours.
