EH 360B

Standards

EN 14700 E Fe8
TS EN 14700 E Fe8
DIN 8555 E 6-UM-60-GPT

Properties and Applications

Thick basic-covered electrode for depositing tough and wear resisting overlays on structural members, subjected to severe wear. It is particularly resistant to high metal-to-metal wear, moderate impact and abrasion. The weld metal has sufficient red hardness up to 600°C. It can be machined only by grinding. Suitable hardfacing applications where wear resistance at higher temperatures is a prime concern, as in hot cut offs, dies for pressure castings, rolls, crushers excavator parts, bucket edges and bucket teeth, drilling bits, coal planes, conveyor screws. Multi-layers deposits will be free of cracks, even without depositing intermediate buffer layers. Only in case of very crack sensitive base metals, a tough buffer layer, made with ESB 40 or EI 307B electrodes, is required. Preferred to use with DC, electrode in positive (+) pole and also possible to use with AC.
Eh 360B Sert Dolgu

Dayanım Gösterdiği Aşınma Tipleri ve Mikroyapısı


Abrasion

Adhesion

Darbe

Temperature

Corrosion

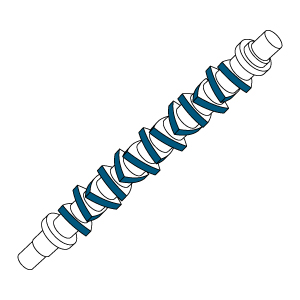

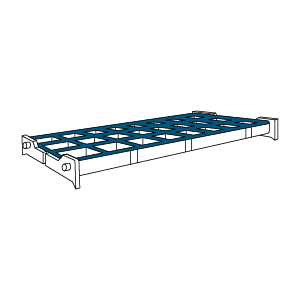

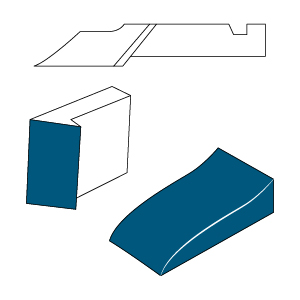

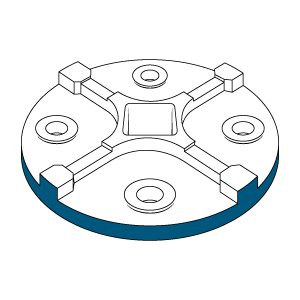

Typical Applications

Eh 360B Model Tipik Uygulamalar Eh 360B Model Tipik Uygulamalar Eh 360B Model Tipik Uygulamalar Eh 360B Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrMoVFe
Weld Deposit0,500.800.608.000,500.6588.95

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HRc)Wear Index
As welded5962.34 (SiO2)

Application Information

Welding Positions :
Eh 360B Kaynak Pozisyonu Eh 360B Kaynak Pozisyonu Eh 360B Kaynak Pozisyonu Eh 360B Kaynak Pozisyonu Eh 360B Kaynak Pozisyonu Eh 360B Kaynak Pozisyonu

Polarity:

Eh 360B Kutuplama Eh 360B Kutuplama

Welding Parameters & Efficiency :

Diameter x Length (mm)Current (A)Weld Deposit(Kg)/1Kg Consumed ElectrodeNumber of Electrodes/1Kg Weld DepositWeld Metal Deposition Rate (Kg/h)
2.50x35080-900,65730,75
3.25x350100-140
4.00x350140-180
4.00x450140-1800,68211,47
5.00x450180-2100,68142,16

Packaging Information

Product CodeDiameter x Length (mm)Quantity per BoxBox Gross Weight (kg)Boxes per Outer BoxOuter Box Gross Weight (kg)Packaging Type
18006HDEM22.50x350120 pcs2.6438.10Plastic Box
18006HEEM22.50x350241 pcs5.21315.80Plastic Box
18006HREM22.50x350241 pcs5.07315.40Cardboard Box
18006NDEM23.25x35071 pcs2.6438.10Plastic Box
18006NEEM23.25x350141 pcs5.21315.80Plastic Box
18006NREM23.25x350141 pcs5.07315.40Cardboard Box
18006QEEM24.00x35093 pcs5.21315.80Plastic Box
18006QREM24.00x35093 pcs5.07315.40Cardboard Box
18006SEEM24.00x45092 pcs6.74320.40Plastic Box
18006SSEM24.00x45092 pcs6.58319.90Cardboard Box
18006VSEM25.00x45061 pcs6.58319.90Cardboard Box

Storage & Re-Drying Information

>It can be dried maximum 5 times.
>It has to be dried at 350°C for 2 hours.
