EH 360R

Standards

EN 14700 E Fe8
TS EN 14700 E Fe8
DIN 8555 E 6-UM-60-GPT

Properties and Applications

Thick rutile-covered electrode for depositing tough and wear resisting hardfacing overlays. It is particularly resistant to high metal-to-metal wear, moderate impact and abrasion. The weld metal has sufficient red hardness up to +600°C. It is machinable only by grinding. In case of crack sensitive base metals, a tough buffer layer made by ESB 42 or EI 307B electrodes, is required and a further one after every third hardfacing layer. The as-welded hardness of 59 HRc can be increased to 60-65 HRc by single or double tempering. Possible to use equally well both with AC and DC.

Typical Applications: Suitable hardfacing applications where wear resistance at higher temperatures is a prime concern, as in hot cut offs, dies for pressure castings, rolls, crushers excavator parts, bucket edges and bucket teeth, drilling bits, coal planes, conveyor screws.
Eh 360R Sert Dolgu

Wear Resistance Types and Microstructure


Abrasion

Adhesion

Impact

Temperature

Corrosion
Low
Medium
High
Very High

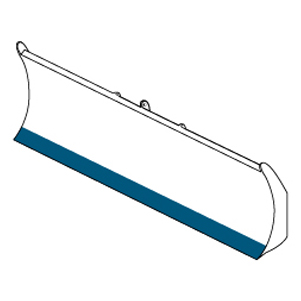

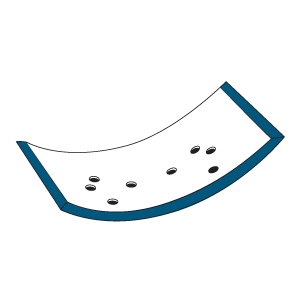

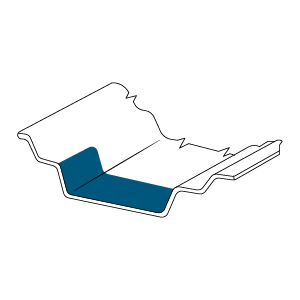

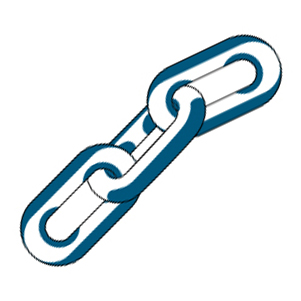

Typical Applications

Eh 360R Model Tipik Uygulamalar Eh 360R Model Tipik Uygulamalar Eh 360R Model Tipik Uygulamalar Eh 360R Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrVFe
Weld Deposit0,500.650.609.000.4088.85

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HRc)Wear Index
As welded5868.92

Application Information

Welding Positions :
Eh 360R Kaynak Pozisyonu Eh 360R Kaynak Pozisyonu Eh 360R Kaynak Pozisyonu Eh 360R Kaynak Pozisyonu Eh 360R Kaynak Pozisyonu Eh 360R Kaynak Pozisyonu

Polarity:

Eh 360R Kutuplama Eh 360R Kutuplama

Welding Parameters & Efficiency :

Diameter x Length (mm)Current (A)Weld Deposit(Kg)/1Kg Consumed ElectrodeNumber of Electrodes/1Kg Weld DepositWeld Metal Deposition Rate (Kg/h)Efficiency(%)
2.50x35060-900,491000,6387
3.25x350100-1400,5600,8388
5.00x450180-2100,53181,6691
4.00x450140-1800,56271,2495

Packaging Information

Product CodeDiameter x Length (mm)Kutudaki Miktar (yakl)Kutu Net Ağırlığı (kg)Boxes per Outer BoxKoli Net Ağırlığı (kg)Packaging Type
18007H9EM12.50x35015 pcs0.3300.0Blister
18007HDEM22.50x350133 pcs2.538.1Plastic Box
18007HEEM22.50x350266 pcs5.0315.8Plastic Box
18007HREM22.50x350266 pcs5.0315.4Cardboard Box
18007N9EM13.25x35010 pcs0.4259.7Blister
18007NDEM23.25x35073 pcs2.538.1Plastic Box
18007NEEM23.25x350146 pcs5.0315.8Plastic Box
18007NREM23.25x350146 pcs5.0315.4Cardboard Box
18007SBEM24.00x45015 pcs1.01213.5Plastic Box
18007SEEM24.00x45099 pcs6.5320.4Plastic Box
18007SSEM24.00x45099 pcs6.5319.9Cardboard Box
18007VEEM25.00x45064 pcs6.5320.4Plastic Box
18007VSEM25.00x45064 pcs6.5319.9Cardboard Box

Storage & Re-Drying Information

>It can be dried maximum 5 times.
>Generally not required. If required, redry for 2 hour at 150°C.
