EH 380

Standards

AWS/ASME SFA - 5.13 ~EFe6
EN 14700 E Fe4
TS EN 14700 E Fe4
DIN 8555 E 4-UM-60-ST

Properties and Applications

Hardfacing electrode for manufacturing and repair welding of turning and plaining chisels, reaming and shear blades, special spiral drills. Also suitable for manufacturing tools from unalloyed and low alloy steels and hardfacing the edges of cutting tools made of tool steel. Unalloyed and low alloy steels shall be preheated to 250-400°C before welding and postweld heat treatment at 400°C and then welded parts shall be cooled slowly. If buffer layer is needed, can be performed by EI 312 or EI 307B electrodes (max. 2,5 mm) and then hardfacing can be performed by EH 380 (max. 5 mm in heigth). Possible to use with DC, electrode in positive (+) pole and with AC.
Eh 380 Sert Dolgu

Dayanım Gösterdiği Aşınma Tipleri ve Mikroyapısı


Abrasion

Adhesion

Darbe

Temperature

Corrosion

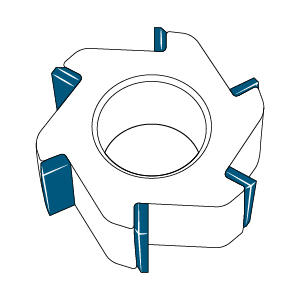

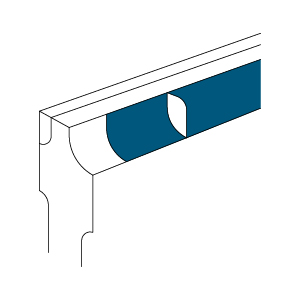

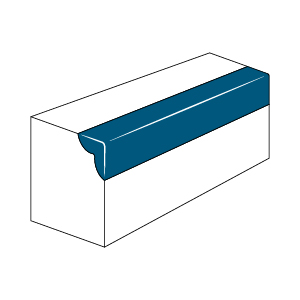

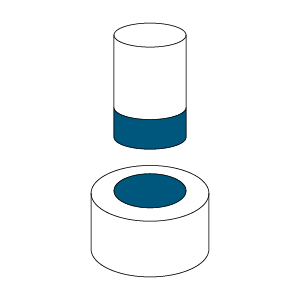

Typical Applications

Eh 380 Model Tipik Uygulamalar Eh 380 Model Tipik Uygulamalar Eh 380 Model Tipik Uygulamalar Eh 380 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrMoVWFe
Weld Deposit1.101.401.303.509.002.201.9079.60

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HRc)Wear Index
As welded6045.11

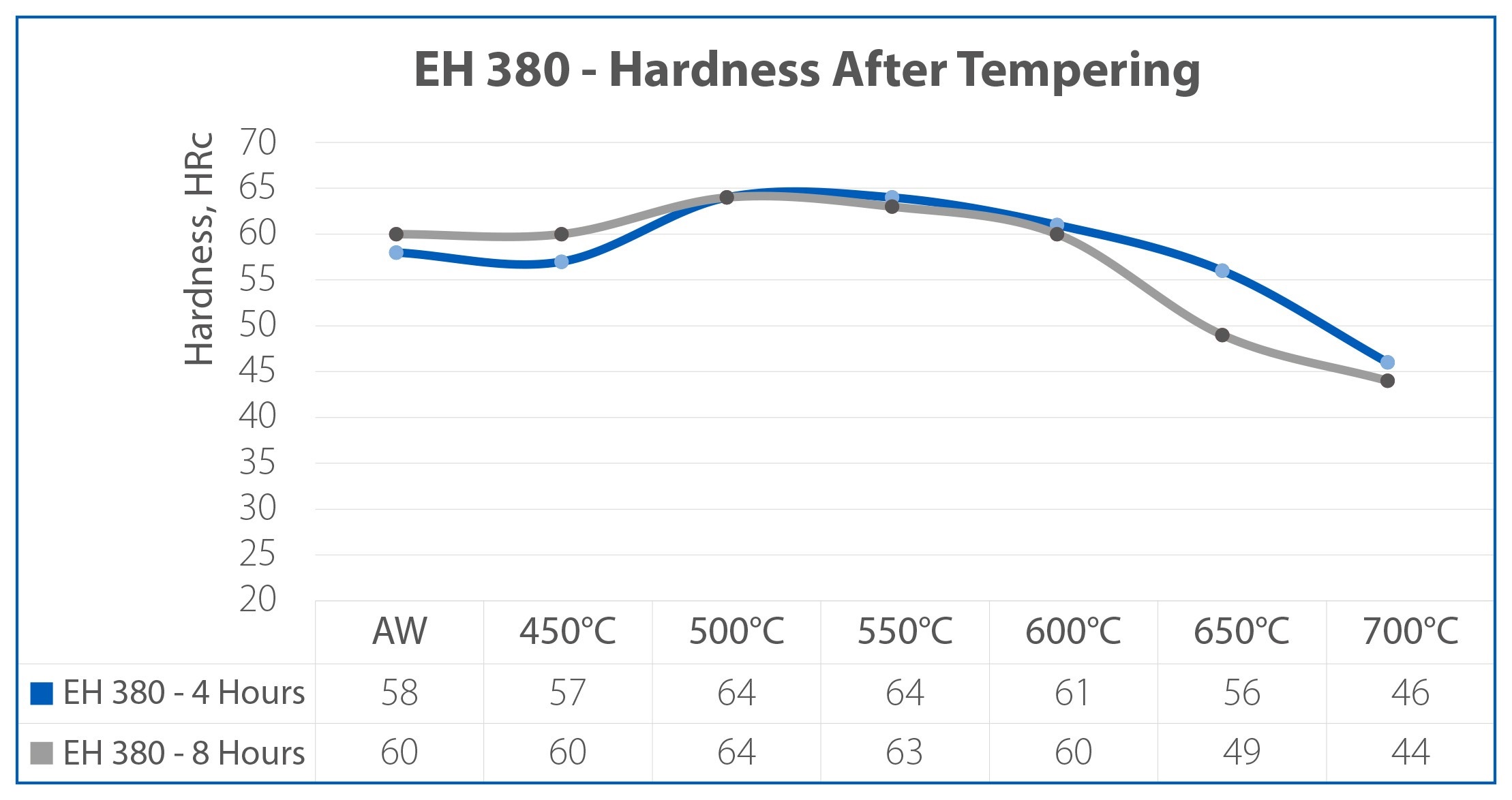

After Heat Treatment64

Application Information

Welding Positions :
Eh 380 Kaynak Pozisyonu Eh 380 Kaynak Pozisyonu Eh 380 Kaynak Pozisyonu Eh 380 Kaynak Pozisyonu

Polarity:

Eh 380 Kutuplama Eh 380 Kutuplama

Welding Parameters & Efficiency :

Diameter x Length (mm)Current (A)Weld Deposit(Kg)/1Kg Consumed ElectrodeNumber of Electrodes/1Kg Weld DepositWeld Metal Deposition Rate (Kg/h)
2.50x35050-850,57660,60
3.25x35090-1300,59390,82
4.00x350125-1700,6251,15
5.00x350190-2200,6141,67

Packaging Information

Product CodeDiameter x Length (mm)Quantity per BoxBox Gross Weight (kg)Boxes per Outer BoxOuter Box Gross Weight (kg)Packaging Type
18009H9EM12.50x35010 pcs0.304012.10Blister
18009HDEM22.50x35077 pcs2.1436.60Plastic Box
18009HQEM22.50x35077 pcs2.05918.60Cardboard Box
18009N9EM13.25x3508 pcs0.383011.50Blister
18009NEEM23.25x35095 pcs4.21312.80Plastic Box
18009NQEM23.25x35047 pcs2.05918.60Cardboard Box
18009QEEM24.00x35064 pcs4.21312.80Plastic Box
18009QQEM24.00x35032 pcs2.05918.60Cardboard Box
18009TQEM25.00x35019 pcs2.05918.60Cardboard Box

Storage & Re-Drying Information

>It can be dried maximum 5 times.
>It has to be dried at 350°C for 2 hours.
