EH 382

Standards

EN 14700 E Fe3
TS EN 14700 E Fe3
DIN 8555 E 3-UM-45-ST

Properties and Applications

Basic coated electrode for build-up and hardfacing of parts subjected to high metal-or-metal wear, compression, impact at elevated temperatures. Weld metal is resistant to operating temperatures up to 550° C. Electrode can also be used for production of new hot and cold cutting tools and their edges, which are made of low alloy steels. Has a stable arc, good bead appearance and very easy slag removal.

Typical Applications: Due to it's high strength, toughness and heat resistance ideally suited for hot and cold cutting tools, hot shears blades, forging dies,  saddles, hammers, die cast moulds
Eh 382 Sert Dolgu

Wear Resistance Types and Microstructure


Abrasion

Adhesion

Impact

Temperature

Corrosion
Low
Medium
High
Very High

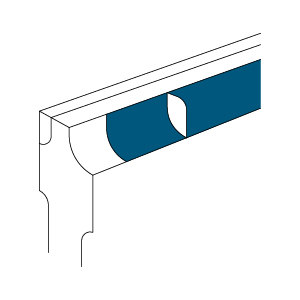

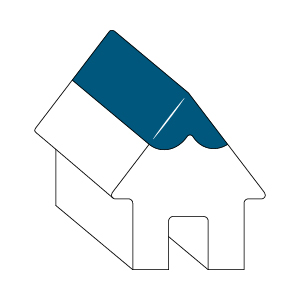

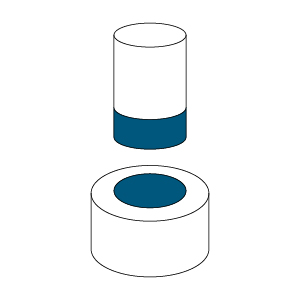

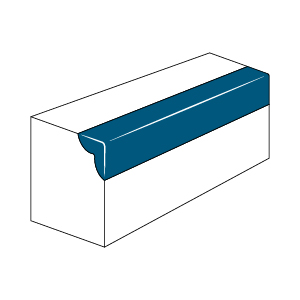

Typical Applications

Eh 382 Model Tipik Uygulamalar Eh 382 Model Tipik Uygulamalar Eh 382 Model Tipik Uygulamalar Eh 382 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrMoFe
Weld Deposit0.200.400.605.004.0089.80

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HRc)
As welded48

Application Information

Welding Positions :
Eh 382 Kaynak Pozisyonu Eh 382 Kaynak Pozisyonu Eh 382 Kaynak Pozisyonu Eh 382 Kaynak Pozisyonu Eh 382 Kaynak Pozisyonu Eh 382 Kaynak Pozisyonu

Polarity:

Eh 382 Kutuplama

Welding Parameters & Efficiency :

Diameter x Length (mm)Current (A)Weld Deposit(Kg)/1Kg Consumed ElectrodeNumber of Electrodes/1Kg Weld DepositWeld Metal Deposition Rate (Kg/h)Efficiency(%)
3.25x35090-1300,65400,76128
4.00x350120-1600,65281,46129

Packaging Information

PRODUCT CODEDiameter x Length (mm)Quantity per box (approx.)Box Net Weight (kg)NUMBER OF BOXES IN PACKAGEPackage Net Weight (kg)Packaging Type
18021HDEM22.50x350112 pcs2.538.1Plastic Box
18021HQEM22.50x350112 pcs2.5615.4Cardboard Box
18021NDEM23.25x35068 pcs2.538.1Plastic Box
18021NQEM23.25x35068 pcs2.5615.4Cardboard Box
18021QQEM24.00x35046 pcs2.5615.4Cardboard Box

Storage & Re-Drying Information

>It can be dried maximum 5 times.
>It has to be dried at 350°C for 2 hours.
