EH 384

Standards

EN 14700 E Fe3
TS EN 14700 E Fe3
DIN 8555 E 3-UM-60-ST

Properties and Applications

Rutile coated electrode for build-up and hardfacing of parts subjected to high metal-or-metal wear, compression, impact at elevated temperatures. Weld metal is resistant to operating temperatures up to 600° C, because of it's Cr, Mo, W, V content.  Electrode can also be used for production of new hot and cold cutting tools and their edges, which are made of low alloy steels. Has a stable arc, good bead appearance and very easy slag removal.

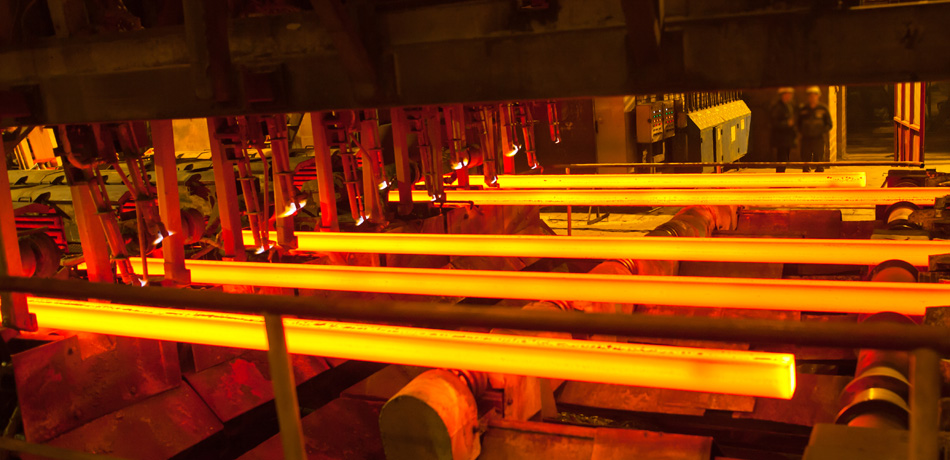

Typical Applications: Due to it's high strength, toughness and heat resistance ideally suited for hot forging dies,  saddles, hammers, hot and cold cutting tools, hot shears blades and rolling mills.
Eh 384 Sert Dolgu

Wear Resistance Types and Microstructure


Abrasion

Adhesion

Impact

Temperature

Corrosion
Low
Medium
High
Very High

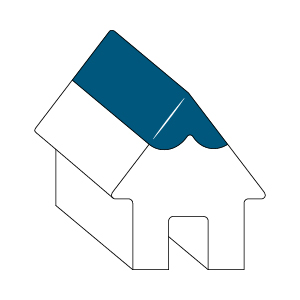

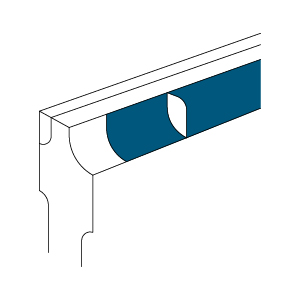

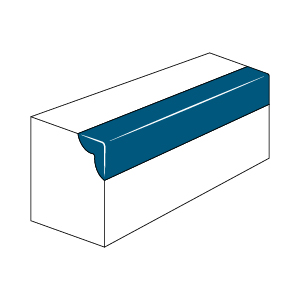

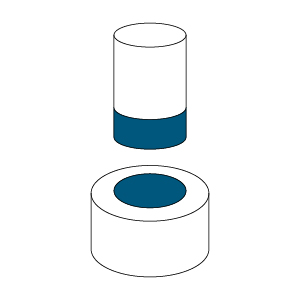

Typical Applications

Eh 384 Model Tipik Uygulamalar Eh 384 Model Tipik Uygulamalar Eh 384 Model Tipik Uygulamalar Eh 384 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrMoVWFeCo
Weld Deposit0.400.400.601.400,500,509.0084.703.00

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HRc)
As welded60

Application Information

Welding Positions :
Eh 384 Kaynak Pozisyonu Eh 384 Kaynak Pozisyonu Eh 384 Kaynak Pozisyonu Eh 384 Kaynak Pozisyonu Eh 384 Kaynak Pozisyonu Eh 384 Kaynak Pozisyonu

Polarity:

Eh 384 Kutuplama

Welding Parameters & Efficiency :

Diameter x Length (mm)Current (A)Weld Deposit(Kg)/1Kg Consumed ElectrodeNumber of Electrodes/1Kg Weld DepositWeld Metal Deposition Rate (Kg/h)Efficiency(%)
3.25x35090-1300,53490.99109

Packaging Information

PRODUCT CODEDiameter x Length (mm)Quantity per box (approx.)Box Net Weight (kg)NUMBER OF BOXES IN PACKAGEPackage Net Weight (kg)Packaging Type
18023HQEM22.50x350104 pcs2.5615.4Cardboard Box
18023NDEM23.25x35067 pcs2.538.1Plastic Box
18023NQEM23.25x35066 pcs2.5615.4Cardboard Box
18023QQEM24.00x35043 pcs2.5615.4Cardboard Box

Storage & Re-Drying Information

>It can be dried maximum 5 times.
>It has to be dried at 350°C for 2 hours.
