EH 386

Datasheet

Standards

EN 14700 E Z Fe8
TS EN 14700 E Z Fe8
DIN 8555 E 3-UM-50-GTZ

Properties And Applications

Rutile coated electrode for hardfacing of parts, subjected to high metal-to-metal wear, compression and impact at elevated temperatures. Due to it's Cr, Mo and Co alloy content, weld metal has high mechanical strength, toughness and thermal resistance to operating temperatures up to 650° C. Has excellent welding properties, a stable and regular metal drop flow, good weld appearance and very easy slag removal.

Typical Applications: Used for hot work tool steels, hot shear blades, forging dies, aluminum casting and extrusion plactic screws.

Wear Resistance Types


Abrasion

Adhesion

Impact

Temperature

Corrosion
Low
Medium
High
Very High

Typical Applications

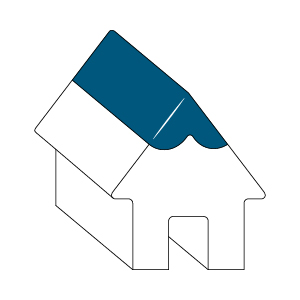

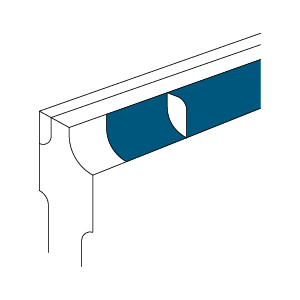

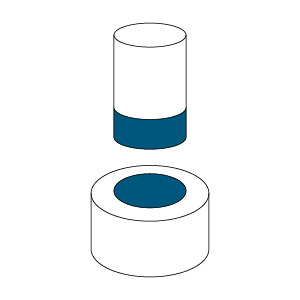

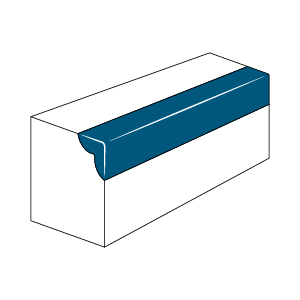

Eh 386 Model Tipik Uygulamalar Eh 386 Model Tipik Uygulamalar Eh 386 Model Tipik Uygulamalar Eh 386 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrMoCo
Weld Deposit0.100.400.1010.03.5014.0

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HRc)
As welded50

Application Information

Welding Positions :
Eh 386 Kaynak Pozisyonu Eh 386 Kaynak Pozisyonu Eh 386 Kaynak Pozisyonu Eh 386 Kaynak Pozisyonu

Polarity:

Eh 386 Kutuplama DC(+)

Welding Parameters & Efficiency :

Diameter x Length (mm)Current (A)
2.50x30060-90
3.25x35090-120
4.00x350130-160

Packaging Information

Product CodeDiameter X Length (mm)Pieces per Box (~)Weight Of The Box (kg)Boxes Per PackageWeight Of The PackagePackaging Type
18025GDEM22.50x300942.036.6Plastic Box
18025NDEM23.25x350672.538.1Plastic Box
18025QDEM24.00x350422.538.1Plastic Box

Storage & Re-Drying Information

>It can be dried maximum 5 times.
>Generally not required. If required, redry for 2 hour at 150°C.
