EH 388

Standards

EN 14700 E Fe8
TS EN 14700 E Fe8
DIN 8555 E 3-UM-55-ST

Properties and Applications

Basic coated electrode for hardfacing of parts, subjected to high metal-to-metal wear, compression and impact at elevated temperatures. Due to it's Cr and Mo alloy content, has high mechanical strength, toughness and thermal resistance to operating temperatures up to 550° C. It provides a great advantage in the production, cladding and filling of sharp edges of new hot and cold cutting blades from the base metals with high tensile strength and proper alloying. Has excellent welding properties, a stable and regular metal flow, good weld bead appearance and very easy slag removal.

Typical Applications: Especially designed for hardfacing of hot and cold cutting tools, hot shear blades, extrusion press pristons, forging dies, die cast moulds, glide and guiding surfaces.

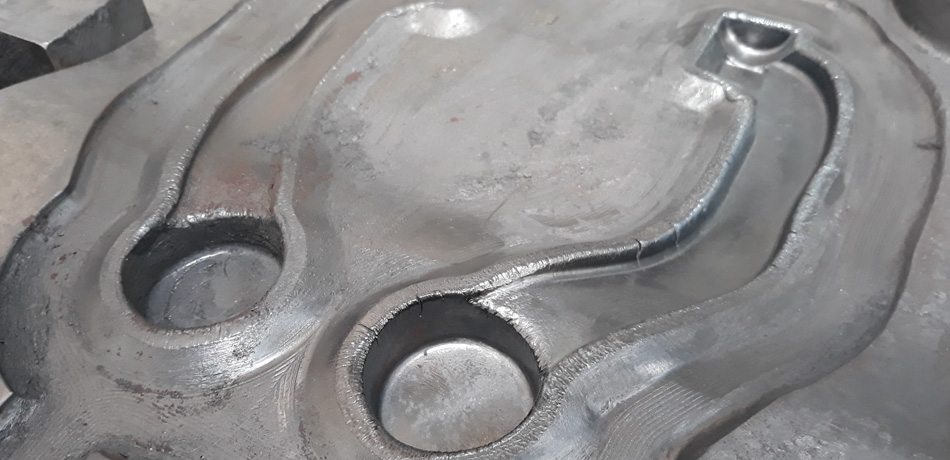

Eh 388 Sert Dolgu

Wear Resistance Types and Microstructure


Abrasion

Adhesion

Darbe

Temperature

Corrosion
Düşük
ORTA
Yüksek
Çok Yüksek

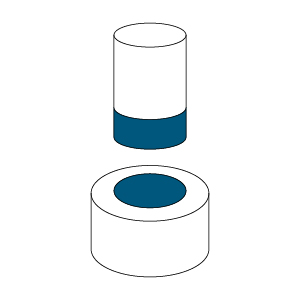

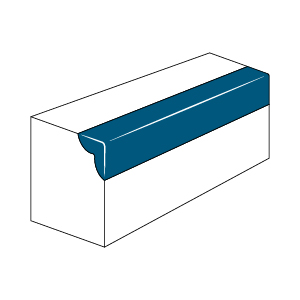

Typical Applications

Eh 388 Model Tipik Uygulamalar Eh 388 Model Tipik Uygulamalar Eh 388 Model Tipik Uygulamalar Eh 388 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrMo
Weld Deposit0.400.751.507.502.50

Typical Mechanical Values of Weld Metal(%)

Test ConditionMatrix (HRC)
As welded55

Application Information

Welding Positions :
Eh 388 Kaynak Pozisyonu Eh 388 Kaynak Pozisyonu Eh 388 Kaynak Pozisyonu

Polarity:

Eh 388 Kutuplama

Welding Parameters & Efficiency :

Diameter x Length (mm)Current (A)Weld Deposit(Kg)/1Kg Consumed ElectrodeNumber of Electrodes/1Kg Weld DepositWeld Metal Deposition Rate (Kg/h)Verimlilik(%)
3.25x35080-1400,64421,15127

Packaging Information

Product CodeDiameter X Length (mm)Kutudaki Miktar (yakl)Kutu Net Ağırlığı (kg)Number Of Boxes In PackageKoli Net Ağırlığı (kg)Packaging Type
18027HQEM22.50x350111 ad2.5615.4Cardboard Box
18027NDEM23.25x35069 ad2.538.1Plastic Box
18027NQEM23.25x35068 ad2.5615.4Cardboard Box
18027QQEM24.00x35046 ad2.5615.4Cardboard Box

Storage & Re-Drying Information

>It has to be dried at 350°C for 2 hours.
