EH 528

Standards

EN 14700 E Fe15
TS EN 14700 E Fe15
DIN 8555 E 10-UM-65-GR

Properties and Applications

Basic type, high recovery (180%) electrode for depositing primary and eutectic Cr and Nb carbides in austenitic matrix. Suitable for hardfacing of parts, subjected to heavy abrasion with moderate impact. Service temperature is max. 450°C. The typical transverse cracks occuring in such a hard metal is not suitable for applications where impact and shock conditions prevail. Wear coefficient of one layer deposit is 0.5 % with SiO2. The weld metal is machinable only by grinding. Weld with long arc length and shall not be welded more than 2 layers. Possible to use with both DC and AC.

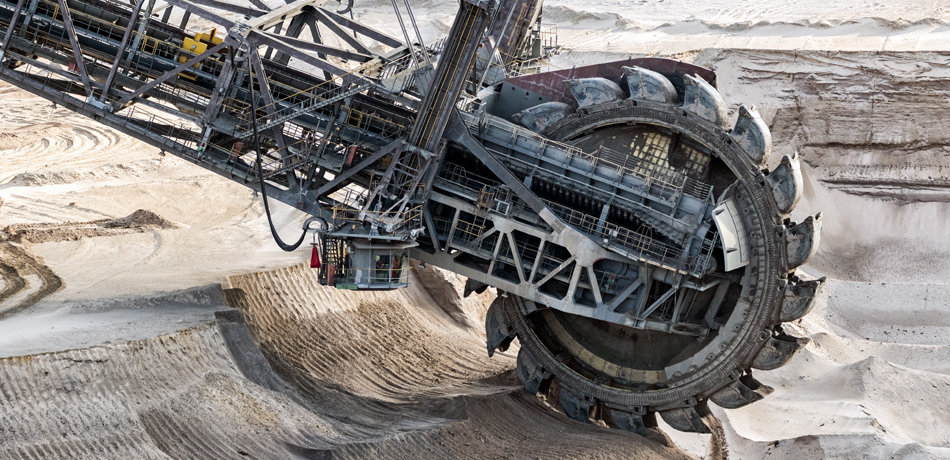

Typical Applications: Suitable to use in hardfacing of cement crushers, cement presses and brick conveyor screws, mixer blades, press screws in oil industry, bucket lips and teeths in earth moving equipments.
Eh 528 Sert Dolgu

Wear Resistance Types and Microstructure


Abrasion

Adhesion

Impact

Temperature

Corrosion
Low
Medium
High
Very High

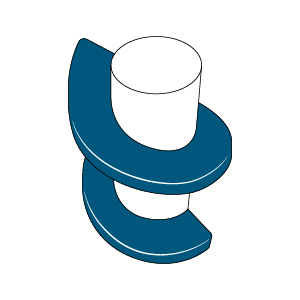

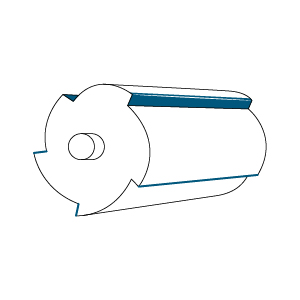

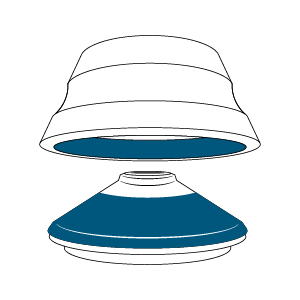

Typical Applications

Eh 528 Model Tipik Uygulamalar Eh 528 Model Tipik Uygulamalar Eh 528 Model Tipik Uygulamalar Eh 528 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrNbFe
Weld Deposit5.501.401.9025.005.5060.70

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HRc)Wear Index
As welded639 (3.sıra)

Application Information

Welding Positions :
Eh 528 Kaynak Pozisyonu Eh 528 Kaynak Pozisyonu

Polarity:

Eh 528 Kutuplama Eh 528 Kutuplama

Welding Parameters & Efficiency :

Diameter x Length (mm)Current (A)Weld Deposit(Kg)/1Kg Consumed ElectrodeNumber of Electrodes/1Kg Weld DepositWeld Metal Deposition Rate (Kg/h)Efficiency(%)
2.50x35070-1000,73400,68220
3.25x350115-1500,69280,89190
4.00x350150-2000,73171,22202
5.00x350190-2400,7111,91191

Packaging Information

Product CodeDiameter X Length (mm)Pieces per BoxKutu AğırlığıNumber Of Boxes Per PackageWeight Of The PackagePackaging Type
18012HREM22.50x3501605.0315.4Cardboard Box
18012NEEM23.25x350804.2313.4Plastic Box
18012NREM23.25x350955.0315.4Cardboard Box
18012QEEM24.00x350554.5314.3Plastic Box
18012QREM24.00x350615.0315.4Cardboard Box
18012TEEM25.00x350405.0315.8Plastic Box
18012TREM25.00x350405.0315.4Cardboard Box

Storage & Re-Drying Information

>It can be dried maximum 5 times.
>It has to be dried at 350°C for 2 hours.
