EH 540

Standards

EN 14700 E Fe16
TS EN 14700 E Fe16
DIN 8555 E 10-UM-65-GRZ

Properties and Applications

Basic type, high recovery (235%) hardfacing electrode for depositing primary and eutectic Cr, Nb, Mo, W and V-carbides in austenitic matrix. Suitable for hardfacing of parts subjected to heavy abrasion with moderate impact and service temperatures up to 600°C. The typical transverse cracks occuring in such a hard metal is not suitable for applications where impact and shock conditions prevail. Wear coefficient of 1 layer deposit is 0,3% with SiO2. The weld metal is machinable only by grinding. It has a quiet and regular fusion. Weld with long arc length and shall not be welded more than 4 layers. Possible to use with both DC and AC.

Typical Applications: Suitable for use in crushing and screening plants, sinter plant parts, wear bars and plates, scraper bars, blast furnace charging systems, cement furnaces, bucket teeth and lips.
Eh 540 Sert Dolgu

Wear Resistance Types and Microstructure


Abrasion

Adhesion

Darbe

Temperature

Corrosion
Düşük
ORTA
Yüksek
Çok Yüksek

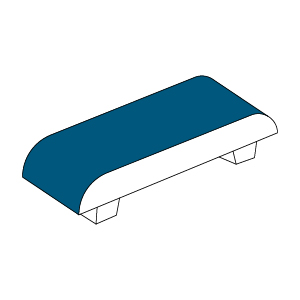

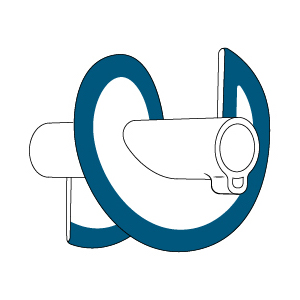

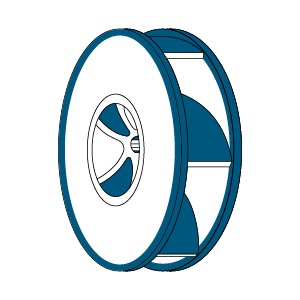

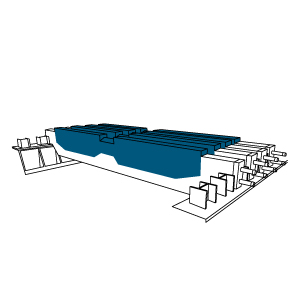

Typical Applications

Eh 540 Model Tipik Uygulamalar Eh 540 Model Tipik Uygulamalar Eh 540 Model Tipik Uygulamalar Eh 540 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrMoVWNbFe
Weld Deposit4.501.300.8520.506.201.102.204.0059.35

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HRc)Wear Index
As welded6410.57

Application Information

Welding Positions :
Eh 540 Kaynak Pozisyonu Eh 540 Kaynak Pozisyonu

Polarity:

Eh 540 Kutuplama Eh 540 Kutuplama

Welding Parameters & Efficiency :

Diameter x Length (mm)Current (A)Weld Deposit(Kg)/1Kg Consumed ElectrodeNumber of Electrodes/1Kg Weld DepositWeld Metal Deposition Rate (Kg/h)Verimlilik(%)
2.50x35090-950,65400,77243
3.25x35090-1500,68241,07250
4.00x350150-2000,68151,66249
5.00x350190-2400,6882,32249

Packaging Information

Product CodeDiameter X Length (mm)Kutudaki Miktar (yakl)Kutu Net Ağırlığı (kg)Number Of Boxes In PackageKoli Net Ağırlığı (kg)Packaging Type
18014HREM22.50x350139 ad5.0315.4Cardboard Box
18014NEEM23.25x35074 ad4.5314.3Plastic Box
18014NREM23.25x35082 ad5.0315.4Cardboard Box
18014QEEM24.00x35045 ad4.5314.3Plastic Box
18014QREM24.00x35050 ad5.0315.4Cardboard Box
18014TREM25.00x35032 ad5.0315.4Cardboard Box

Storage & Re-Drying Information

>It can be dried maximum 5 times.
>It has to be dried at 200°C for 1 hour.
