EH 812

Standards

AWS/ASME SFA - 5.13 ECoCr-B
EN 14700 E Co3
TS EN 14700 E Co3
DIN 8555 E 20-UM-50-CTZ

Properties and Applications

Rutile-basic type coated hardfacing electrode which deposits Co-Cr-W alloy weld metal. Suitable to use in hardfacing of parts subjected to either the single or combined effect of: heavy metal-to-metal wear or abrasion, high temperatures (ranging from 500°C to 900°C) and corrosive environments. Due to its very higher toughness and shock resistance extends its use for service conditions involving mechanical impacts and thermal shocks. Preferred to use with DC, electrode in positive (+) and possible to use with also AC.

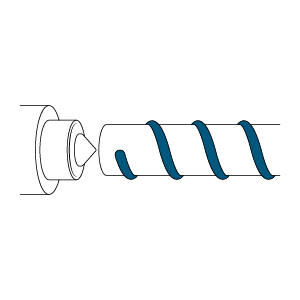

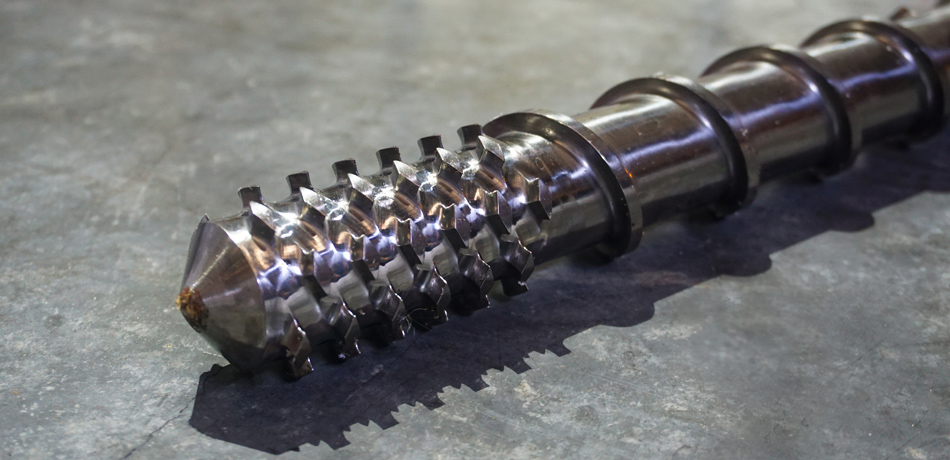

Typical Applications: Suitable for plastic extrusion screws, tools to cut paper, cardboard flor coverings, roofing, wood, galvanizing baths
Eh 812 Sert Dolgu

Wear Resistance Types and Microstructure


Abrasion

Adhesion

Darbe

Temperature

Corrosion
Düşük
ORTA
Yüksek
Çok Yüksek

Typical Applications

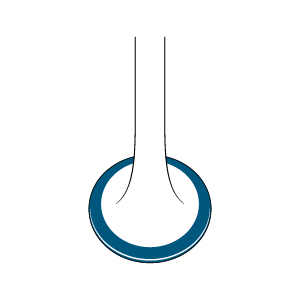

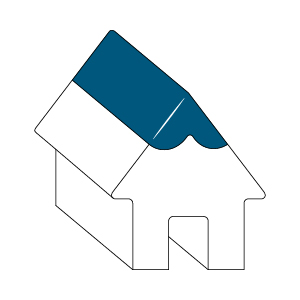

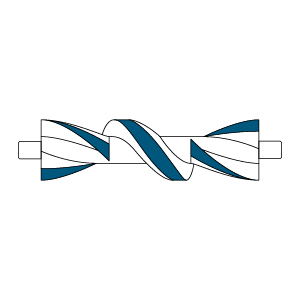

Eh 812 Model Tipik Uygulamalar Eh 812 Model Tipik Uygulamalar Eh 812 Model Tipik Uygulamalar Eh 812 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrNiWFeCo
Weld Deposit1.401.001.0030.002.508.502.5053.10

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HRc)
As welded48

Application Information

Welding Positions :
Eh 812 Kaynak Pozisyonu Eh 812 Kaynak Pozisyonu Eh 812 Kaynak Pozisyonu

Polarity:

Eh 812 Kutuplama Eh 812 Kutuplama

Welding Parameters & Efficiency :

Diameter x Length (mm)Current (A)Weld Deposit(Kg)/1Kg Consumed ElectrodeNumber of Electrodes/1Kg Weld DepositWeld Metal Deposition Rate (Kg/h)Verimlilik(%)
3.25x35070-1100,58411,0498
4.00x350120-1700,57331,1695

Packaging Information

Product CodeDiameter X Length (mm)Kutudaki Miktar (yakl)Kutu Net Ağırlığı (kg)Number Of Boxes In PackageKoli Net Ağırlığı (kg)Packaging Type
18017NDEM23.25x35067 ad2.538.1Plastic Box
18017QDEM24.00x35047 ad2.538.1Plastic Box

Storage & Re-Drying Information

>It has to be dried at 350°C for 1 hour.
>It can be dried maximum 5 times.
