EI 308H

Standards

AWS/ASME SFA - 5.4 E308H-16
EN ISO 3581 - A E 19 9 H R 12
TS EN ISO 3581 - A E 19 9 H R 12
DIN M. No. 1.4302

Properties and Applications

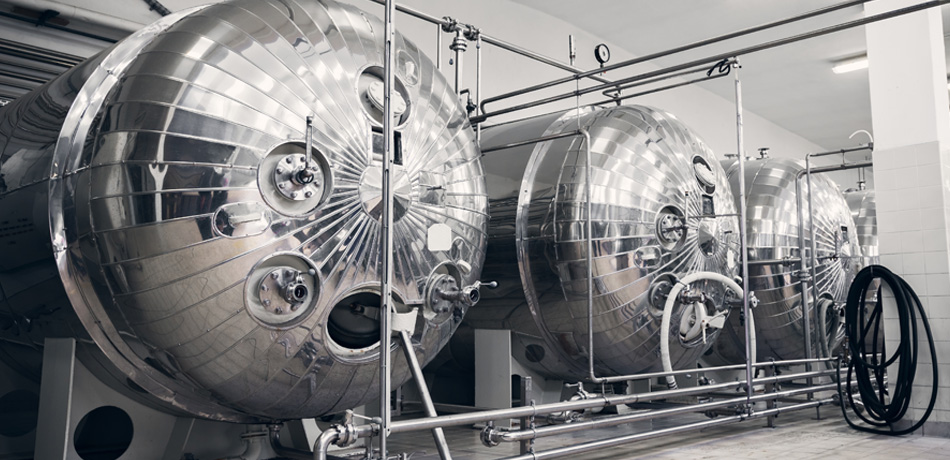

Rutile type austenitic stainless steel electrode for welding especially 304H and similar austenitic stainless steels or cast steels and heat resistant steels, having high carbon content. Suitable for welding stainless steel tanks, valves, pipes and linings in chemical, food, beverage, pharmaceutical, fertilizer industries. Weld metal is suitable for use at high operating temperatures and it is also non-scaling. Possible to use equally well both with AC and DC. Easy arc striking and re-striking. Fine metal droplet transfer, good fusion of joint faces, finely rippled bead surface, easily removable slag.
Ei 308H Sert Dolgu

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrNi
Weld Deposit0.060.701.0020.0010.50

Typical Mechanical Values of Weld Metal(%)

Test ConditionYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)Charpy V-Notch Properties (J)
As welded4406004520°C → 60

Application Information

Welding Positions :
Ei 308H Kaynak Pozisyonu Ei 308H Kaynak Pozisyonu Ei 308H Kaynak Pozisyonu Ei 308H Kaynak Pozisyonu Ei 308H Kaynak Pozisyonu Ei 308H Kaynak Pozisyonu

Polarity:

Ei 308H Kutuplama DC(+)
Ei 308H Kutuplama AC

Welding Parameters & Efficiency :

Packaging Information

Product CodeDiameter X Length (mm)Pieces per Box (~)Weight Of The Box (kg)Number Of Boxes Per PackageWeight Of The PackagePackaging Type
13038GJEM22.50x300931.81016.3VAC Box
13038MJEM23.25x300581.81016.3VAC Box
13038NJEM23.25x350572.01018.6VAC Box
13038QJEM24.00x350372.01018.6VAC Box

Storage & Re-Drying Information

>It can be dried maximum 5 times.
>It has to be dried at 350°C for 2 hours.
