EI 308L

Standards

AWS/ASME SFA - 5.4 E308L-16
EN ISO 3581 - A E 19 9 L R 12
TS EN ISO 3581 - A E 19 9 L R 12
DIN M. No. 1.4316

Approvals & Certificates

Materials

Width Material ASTM
X5CrNi18-10 1.4301 304
X4CrNi18-12 1.4303 305
X2CrNi19-11 1.4306 304L
GX5 Cr Ni 19 10 1.4308 CF-8
X2CrNiN 18-10 1.4311 304LN
X6CrNiTi18-10 1.4541 321
X6CrNiNb18-10 1.4550 347, 347H
GX5CrNiNb 19-11 1.4552

Properties and Applications

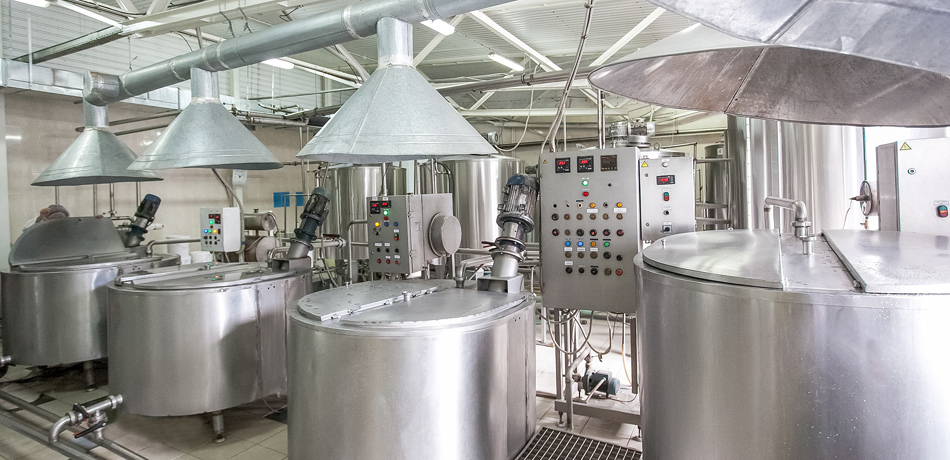

Rutile coated electrode for welding austenitic stainless Cr-Ni steels or cast steels, having an extra low carbon content, as well as stainless or heat resisting chromium steels or cast steels. Suitable for welding stainless steel tanks, valves, pipes and linings in chemical, food, beverage, pharmaceutical industries. For operating temperatures of up to 350°C, non-scaling up to 800°C. Possible to use equally well both with AC and DC. Easy arc striking and re-striking. Fine metal droplet transfer, good fusion of joint faces, finely rippled bead surface, easily removable slag.
Ei 308L Sert Dolgu

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrNi
Weld Deposit0.020.700.9019.5010.00

Typical Mechanical Values of Weld Metal(%)

Test ConditionYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)Charpy V-Notch Properties (J)
As welded4405704220°C → 70

Application Information

Welding Positions :
Ei 308L Kaynak Pozisyonu Ei 308L Kaynak Pozisyonu Ei 308L Kaynak Pozisyonu Ei 308L Kaynak Pozisyonu Ei 308L Kaynak Pozisyonu Ei 308L Kaynak Pozisyonu

Polarity:

Ei 308L Kutuplama Ei 308L Kutuplama

Welding Parameters & Efficiency :

Diameter x Length (mm)Current (A)Weld Deposit(Kg)/1Kg Consumed ElectrodeNumber of Electrodes/1Kg Weld DepositWeld Metal Deposition Rate (Kg/h)
2.00x25035-550,571740,64
2.00x30035-550,571580,64
2.50x25050-800,541270,94
2.50x30050-800,551010,98
2.50x35050-750,55890,98
3.25x30080-1200,56601,47
3.25x35080-1200,57501,54
4.00x350100-1650,56332,05
5.00x350140-2200,57212,67

Packaging Information

Product CodeDiameter x Length (mm)Quantity per BoxKutu Brüt Ağırlığı (kg)Boxes per Outer BoxKoli Ağırlığı (kg)Packaging Type
13003CIEM22.00x250152 ad1.541014.10VAC Box
13003DDEM22.00x300225 ad2.6238.00Plastic Box
13003DJEM22.00x300158 ad1.791018.10VAC Box
13003FIEM22.50x250102 ad1.541014.10VAC Box
13003G9EM12.50x30015 ad0.32309.70Blister
13003GBEM22.50x30051 ad1.111011.30
13003GDEM22.50x300135 ad2.6238.00Plastic Box
13003GEEM22.50x300216 ad4.21312.80Plastic Box
13003GJEM22.50x30095 ad1.791018.20VAC Box
13003M9EM13.25x30010 ad0.343010.40Blister
13003MDEM23.25x30083 ad2.6238.00Plastic Box
13003MJEM23.25x30058 ad1.79916.30VAC Box
13003NBEM23.25x35029 ad1.111011.30
13003NDEM23.25x35071 ad2.6438.10Plastic Box
13003NEEM23.25x350141 ad5.21315.80Plastic Box
13003NJEM23.25x35056 ad2.041020.70VAC Box
13003QBEM24.00x35019 ad1.111011.30
13003QDEM24.00x35045 ad2.6238.00Plastic Box
13003QEEM24.00x35091 ad5.21315.80Plastic Box
13003QJEM24.00x35036 ad2.041020.70VAC Box
13003T9EM15.00x3507 ad0.633019.00Blister
13003TEFM25.00x35060 ad5.21315.80Plastic Box
13003TJEM25.00x35024 ad2.04918.60VAC Box

Storage & Re-Drying Information

>It can be dried maximum 5 times.
>It has to be dried at 350°C for 2 hours.
