EI 308LRS

Standards

AWS/ASME SFA - 5.4 E308L-17
EN ISO 3581 - A E 19 9 L R 12
TS EN ISO 3581 - A E 19 9 L R 12
DIN M. No. 1.4316

Properties And Applications

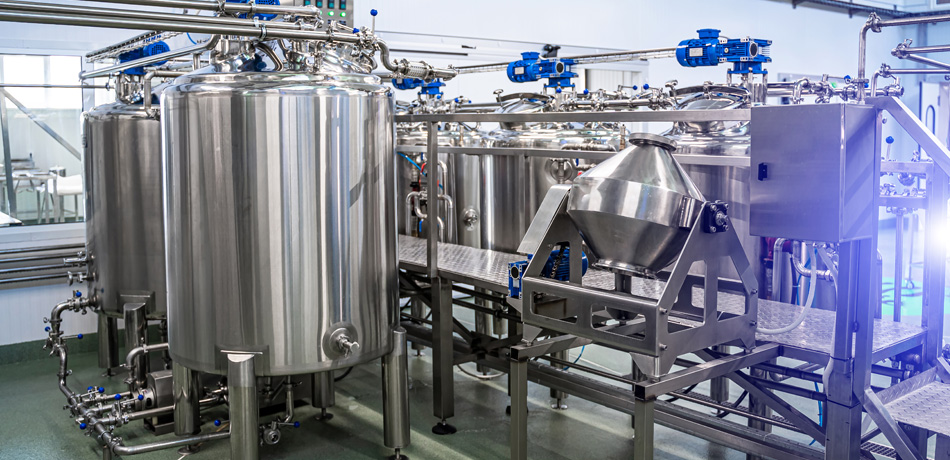

Rutile type electrode for welding austenitic stainless Cr-Ni steels or cast steels, having an extra low carbon content, as well as stainless or heat resisting chromium steels or cast steels. Suitable for welding stainless steel tanks, valves, pipes and linings in chemical, food, beverage, pharmaceutical industries. For operating temperatures of up to 350°C, non-scaling up to 800°C. Possible to use equally well both with AC and DC. Easy arc striking and re-striking. Fine metal droplet transfer, good fusion of joint faces, very finely rippled, flat and smooth bead surface especially in fillet welds, easily removable slag.

Materials

Width Material ASTM
X5CrNi18-10 1.4301 304
X4CrNi18-12 1.4303 305
X2CrNi19-11 1.4306 304L
GX5 Cr Ni 19 10 1.4308 CF-8
X2CrNiN 18-10 1.4311 304LN
X6CrNiTi18-10 1.4541 321
X6CrNiNb18-10 1.4550 347, 347H
GX5CrNiNb 19-11 1.4552

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrNi
Weld Deposit0.020.700.9019.5010.00

Typical Mechanical Values of Weld Metal(%)

Test ConditionYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)Charpy V-Notch Properties (J)
As welded4405704220°C → 70

Application Information

Welding Positions :
Ei 308Lrs Kaynak Pozisyonu Ei 308Lrs Kaynak Pozisyonu Ei 308Lrs Kaynak Pozisyonu Ei 308Lrs Kaynak Pozisyonu Ei 308Lrs Kaynak Pozisyonu Ei 308Lrs Kaynak Pozisyonu

Polarity:

Ei 308Lrs Kutuplama Ei 308Lrs Kutuplama

Welding Parameters & Efficiency :

Diameter x Length (mm)Current (A)
2.50x30050-80
3.25x35080-120
4.00x350100-165

Packaging Information

Product CodeDiameter x Length (mm)Quantity per BoxBox Gross Weight (kg)Boxes per Outer BoxOuter Box Gross Weight (kg)Packaging Type
13005GJEM22.50x30095 pcs1.791018.50VAC Box
13005NJEM23.25x35056 pcs2.041021.00VAC Box
13005QJEM24.00x35036 pcs2.04918.60VAC Box

Storage & Re-Drying Information

>It can be dried maximum 5 times.
>It has to be dried at 350°C for 2 hours.
