EIS 410NIMO

Standards

AWS/ASME SFA - 5.4 E410NiMo-15
EN ISO 3581 - A E 13 4 B 42
TS EN ISO 3581 - A E 13 4 B 42
DIN M. No. 1.4317

Approvals & Certificates

Materials

EN Material
X3CrNiMo13-4 1.4313
G-X5 Cr Ni Mo 13 4 1.4407

Properties and Applications

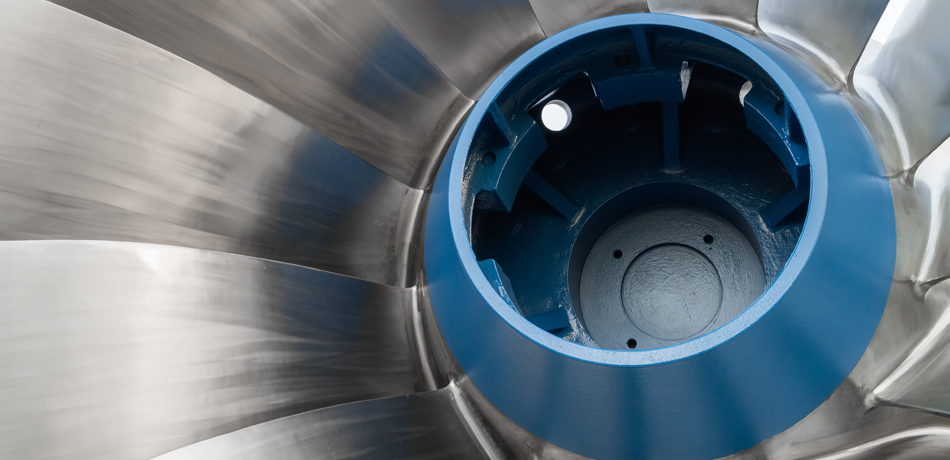

Basic type stainless steel electrode with high recovery, which is used for welding of 12-14% Cr and 3-4% Ni containing stainless and heat resistant chromium steels or cast steels. Deposits martensitic stainless steel weld metal. Also suitable for corrosion and abrasion resistant surfacing of contact surfaces of gas, water, sea water and steam fan, fan blades and fittings in hydro-electric plants and continuous casting rolls. Used with DCEP. For wall thickness over 10 mm preheating to max. 150°C and after welding tempering or normalizing + tempering are recommended. Especially in joint welding a buffer layer with EI 312 or EIS 307 electrode is advisable.
Eis 410Nimo Sert Dolgu

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrNiMo
Weld Deposit0.060.400.8012.004.000,50

Typical Mechanical Values of Weld Metal(%)

Test ConditionTensile Strength (N/mm²)Elongation A5 (%)Hardness (HB)Charpy V-Notch Properties (J)
Isıl İşlem Sonrası (600°C 1 Saat)8501741020°C → 47

Application Information

Welding Positions :
Eis 410Nimo Kaynak Pozisyonu Eis 410Nimo Kaynak Pozisyonu Eis 410Nimo Kaynak Pozisyonu Eis 410Nimo Kaynak Pozisyonu Eis 410Nimo Kaynak Pozisyonu Eis 410Nimo Kaynak Pozisyonu

Polarity:

Eis 410Nimo Kutuplama DC(+)

Welding Parameters & Efficiency :

Diameter x Length (mm)Current (A)Weld Deposit(Kg)/1Kg Consumed ElectrodeNumber of Electrodes/1Kg Weld DepositWeld Metal Deposition Rate (Kg/h)Efficiency(%)
2.50x35060-900,68590,97126
3.25x35080-1400,68411,3126
4.00x350125-1800,71271,84125
5.00x350210-2500,71132,45125

Packaging Information

Product CodeDiameter X Length (mm)Pieces per Box (~)Weight Of The Box (kg)Number Of Boxes Per PackageWeight Of The PackagePackaging Type
13025HKEM22.50x3502535.0315.4VAC Box
13025NKEM23.25x3501425.0315.4VAC Box
13025QEEM14.00x350954.9315.2Plastic Box
13025QKEM24.00x350975.0315.4VAC Box
13025TKEM25.00x350625.0315.4VAC Box

Storage & Re-Drying Information

>It can be dried maximum 5 times.
>It has to be dried at 350°C for 2 hours.
