EM 165

Standards

AWS/ASME SFA - 5.5 E9018-G H4R
EN ISO 18275 - A E 55 5 Mn1NiMo B T 42 H5
TS EN ISO 18275 - A E 55 5 Mn1NiMo B T 42 H5
TS EN ISO 18275 - A E 55 5 Mn1NiMo B 42 H5

Materials

Width DIN
S355N - S500N StE 355 - StE 500
P355NH - P500NH WStE 355 - WStE 500
S355NL2 - S500NL1 EStE 355 - EStE 500
17MnMoV6-4
15NiCuMoNb5
20MnMoNi4-5

Properties and Applications

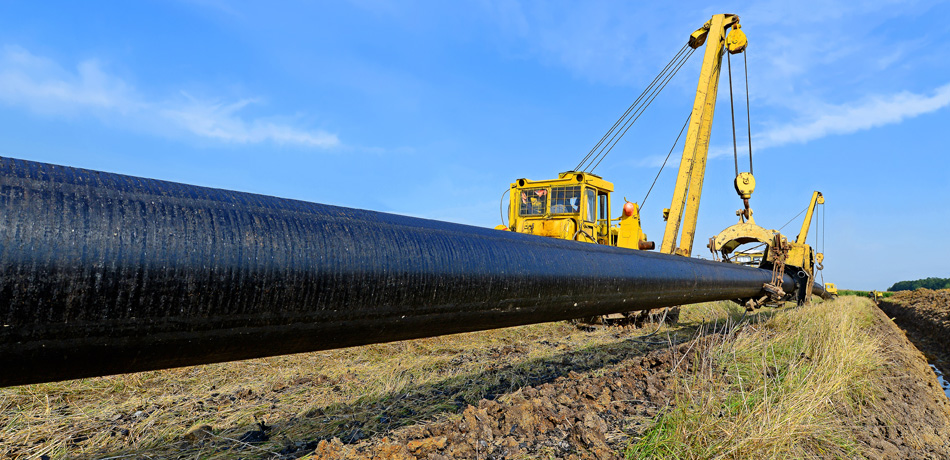

Heavy coated basic type electrode with high efficiency, which is for welding low alloy steels, fine grained structural steels and high strength steel pipes. Provides high crack resistance under difficult conditions such as dynamic loads, impact, pressure, vibration and service temperatures between -60°C and 450°C. Weld deposit is of extremely high metallurgical purity and very low hydrogen content. Especially 2,50 mm and 3,25 mm diameter well suited for easy positional welding which makes it suitable for joint welding and repair jobs of oil and gas pipes up to X70. Welds are of X-ray quality.
Em 165 Sert Dolgu

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnNiMo
Weld Deposit0.060.401.750.900.45

Typical Mechanical Values of Weld Metal(%)

Test ConditionYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)Charpy V-Notch Properties (J)
As welded57065020-50°C → 50-60°C → 40
Isıl İşlem Sonrası (590°C 1 Saat)65074024-50°C → 50-60°C → 40

Application Information

Welding Positions :
Em 165 Kaynak Pozisyonu Em 165 Kaynak Pozisyonu Em 165 Kaynak Pozisyonu Em 165 Kaynak Pozisyonu Em 165 Kaynak Pozisyonu Em 165 Kaynak Pozisyonu

Polarity:

Em 165 Kutuplama

Welding Parameters & Efficiency :

Diameter x Length (mm)Current (A)Weld Deposit(Kg)/1Kg Consumed ElectrodeNumber of Electrodes/1Kg Weld DepositWeld Metal Deposition Rate (Kg/h)
2.50x35060-900,71100,7
3.25x35090-1400,7601,1
3.25x450100-1400,7521,1
4.00x450130-1800,7391,4
5.00x450190-2400,7271,8
6.00x450260-3400,7192,3

Packaging Information

Product CodeDiameter x Length (mm)Quantity per BoxKutu Brüt Ağırlığı (kg)Boxes per Outer BoxKoli Ağırlığı (kg)Packaging Type
12005HKEM22.50x350124 ad2.54615.50VAC Box
12005HREM22.50x350223 ad5.07315.40Cardboard Box
12005NKEM23.25x35071 ad2.54615.50VAC Box
12005NREM23.25x350142 ad5.07315.40Cardboard Box
12005PKEM23.25x45054 ad2.56615.60VAC Box
12005PSEM23.25x450145 ad6.58319.90Cardboard Box
12005SKEM24.00x45037 ad2.56615.60VAC Box
12005SSEM24.00x45098 ad6.58319.90Cardboard Box
12005VSEM25.00x45066 ad6.58319.90Cardboard Box
12005XSEM26.00x45046 ad6.58319.90Cardboard Box

Storage & Re-Drying Information

>It can be dried maximum 5 times.
>It has to be dried at 350°C for 2 hours.
