EM 170

Datasheet

Standards

AWS/ASME SFA - 5.5	E9018-G H4
EN ISO 2560 - A	E 50 6 Mn1Ni B 42 H5
TS EN ISO 2560 - A	E 50 6 Mn1Ni B 42 H5

Properties And Applications

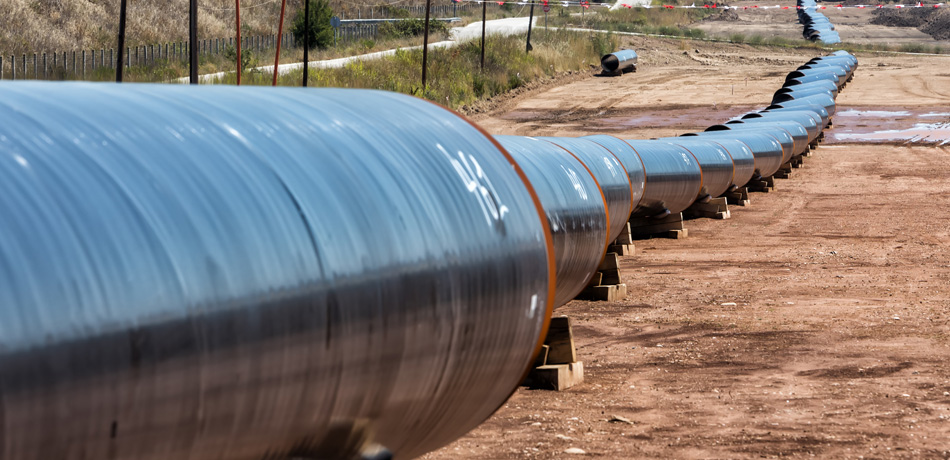

Heavy coated basic type electrode with high efficiency, for welding low alloy high strength steels, fine grained structural steels and high strength steel pipes. Provides high crack resistance under difficult conditions such as dynamic loads, impact, pressure, vibration and service temperatures between -60°C and 450°C. Weld deposit is of a extremely high metallurgical purity and very low hydrogen content. Especially 2,50 mm and 3,25 mm diameter electrodes feature stable and concentrated arc, rendering it well-suited fore positional welding. Suitable for welding and repair jobs up to X70 oil and gas pipes. Weld are of X-ray quality.

Approvals & Certificates

TUV

TSE

Materials

Width	DIN
S420NL - S460NL	TStE 420 - TStE 460
S420N - S460N	StE 420 - StE 460
P420NH - P460NH	WStE 420 - WStE 460

Typical Chemical Values of Weld Metal

Type of Analysis	C	Si	Mn	Ni
Weld Deposit	0.05	0.40	1.70	1.00

Type of Analysis

Weld Deposit

0.05

0.40

1.70

1.00

Typical Mechanical Values of Weld Metal(%)

Test Condition	Yield Strength (N/mm²)	Tensile Strength (N/mm²)	Elongation A5 (%)	Charpy V-Notch Properties (J)
As welded	570	650	25	-60°C → 60

Test Condition

Yield Strength (N/mm²)

Tensile Strength (N/mm²)

Elongation A5 (%)

Charpy V-Notch Properties (J)

As welded

570

650

-60°C → 60

Application Information

Welding Positions :

Polarity:

Welding Parameters & Efficiency :

Diameter x Length (mm)	Current (A)
2.50x350	60-90
3.25x350	90-140
3.25x450	90-140
4.00x350	140-185
4.00x450	130-180
5.00x350	180-240
5.00x450	180-240

Packaging Information

Product Code	Diameter x Length (mm)	Quantity per Box	Kutu Brüt Ağırlığı (kg)	Boxes per Outer Box	Koli Ağırlığı (kg)	Packaging Type
12006HREM2	2.50x350	200 ad	4.57	3	13.90	Cardboard Box
12006NKEM2	3.25x350	70 ad	2.54	6	15.50	VAC Box
12006NREM2	3.25x350	127 ad	4.57	3	13.90	Cardboard Box
12006SSEM2	4.00x450	94 ad	6.58	3	19.90	Cardboard Box
12006VSEM2	5.00x450	64 ad	6.58	3	19.90	Cardboard Box

Storage & Re-Drying Information

>It can be dried maximum 5 times.

>It has to be dried at 350°C for 2 hours.
