EM 201

Datasheet

Standards

AWS/ASME SFA - 5.5	E8013-G
EN ISO 3580 - A	E Mo R 12
TS EN ISO 3580 - A	E Mo R 12

Properties And Applications

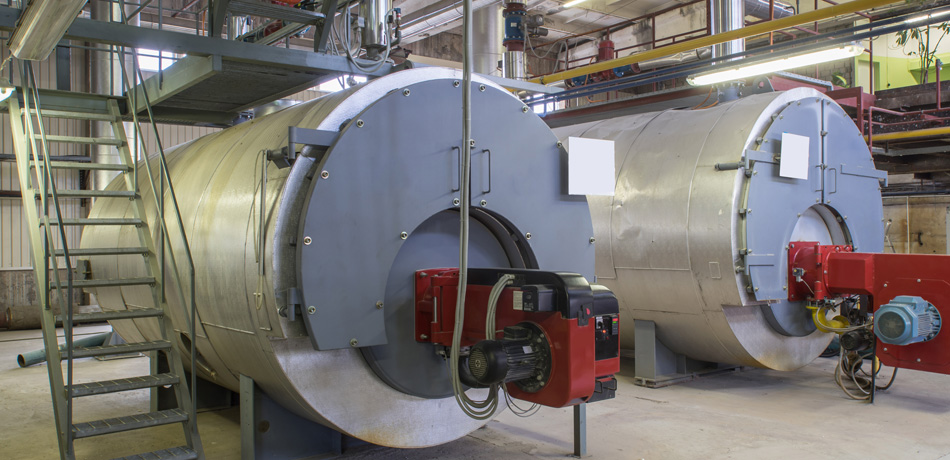

Rutile type, heavy coated electrode for welding creep resistant steels employed in the construction of pressure vessels, boilers and pipes, subjected to operating temperatures of up to 500°C. Due to its rutile covering, also possible to work in alternating current (AC). Easy arc striking and re-striking. Very smooth and clean welds, blending into base without undercuts. Preheating, interpass temperature and post-weld heat treatment shall be done according to base metal used.

Approvals & Certificates

TUV

Materials

Width	DIN
P235G1TH - P255G1TH	St 35.8 - St 45.8
S255N - S420N	StE 255 - StE 420
P295GH, P355GH	17Mn4, 19Mn5
16Mo3	15 Mo 3
	16Mo5
L360NB - L415NB	StE 360.7 - StE 415.7
L360MB - L415MB	StE 360.7 TM - StE 415.7 TM
	X52 - X60

Typical Chemical Values of Weld Metal

Type of Analysis	C	Si	Mn	Mo
Weld Deposit	0.07	0.35	0,50	0.45

Type of Analysis

Weld Deposit

0.07

0.35

0,50

0.45

Typical Mechanical Values of Weld Metal(%)

Test Condition	Yield Strength (N/mm²)	Tensile Strength (N/mm²)	Elongation A5 (%)	Charpy V-Notch Properties (J)
Isıl İşlem Sonrası (620°C 1 Saat)	540	620	23	20°C → 60

Test Condition

Yield Strength (N/mm²)

Tensile Strength (N/mm²)

Elongation A5 (%)

Charpy V-Notch Properties (J)

Isıl İşlem Sonrası (620°C 1 Saat)

540

620

20°C → 60

Application Information

Welding Positions :

Polarity:

Welding Parameters & Efficiency :

Diameter x Length (mm)	Current (A)
2.50x350	60-90
3.25x350	90-140
4.00x350	140-180
4.00x450	130-180
5.00x450	190-240

Packaging Information

Product Code	Diameter x Length (mm)	Quantity per Box	Kutu Brüt Ağırlığı (kg)	Boxes per Outer Box	Koli Ağırlığı (kg)	Packaging Type
12014HREM2	2.50x350	258 ad	5.07	3	15.20	Cardboard Box
12014NREM2	3.25x350	155 ad	5.07	3	15.40	Cardboard Box
12014QREM2	4.00x350	104 ad	5.07	3	15.40	Cardboard Box
12014SSEM2	4.00x450	103 ad	6.58	3	19.90	Cardboard Box
12014VSEM2	5.00x450	66 ad	6.58	3	19.90	Cardboard Box

Storage & Re-Drying Information

>Generally not required. If required, redry for 1 hour at 110°C.
