EM 202

Standards

AWS/ASME SFA - 5.5 E7018-A1 H8
EN ISO 3580 - A E Mo B 42 H5
TS EN ISO 3580 - A E Mo B 42 H5

Approvals & Certificates

Materials

Width DIN
S255N - S420N StE 255 - StE 420
P235G1TH - P255G1TH St 35.8 - St 45.8
P295GH, P355GH 17Mn4, 19Mn5
16Mo3 15Mo3
16Mo5
L360MB - L415MB StE 360.7 TM - StE 415.7 TM
L360NB - L415NB StE 360.7 - StE 415.7
X52 - X60
GP240GH , G20Mo4 GS-C 25, GS-22Mo4

Properties and Applications

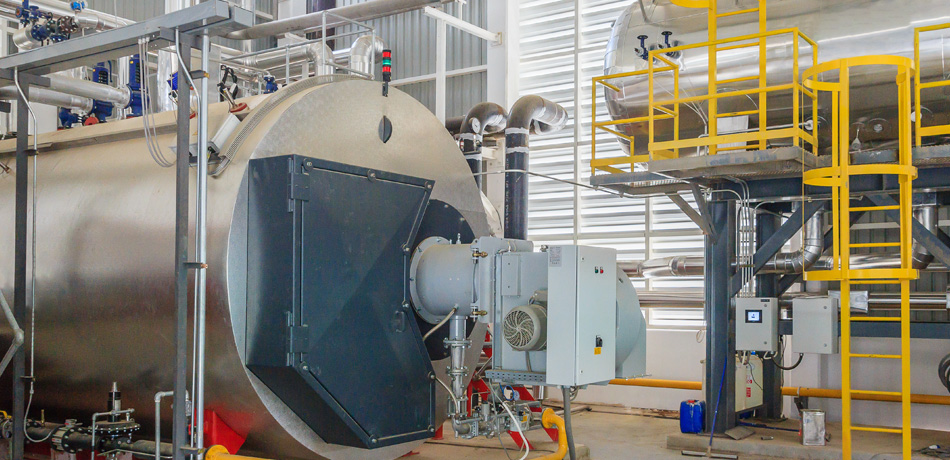

Basic type, heavy coated electrode for welding creep resistant steels employed in the fabrication of pressure vessels, boilers and pipes, subjected to operating temperatures of up to 500°C. Welds are of X-ray quality. Preheating, interpass temperature and post-weld heat treatment shall be done according to base metal used.
Em 202 Sert Dolgu

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnMo
Weld Deposit0.050.300.650,50

Typical Mechanical Values of Weld Metal(%)

Test ConditionYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)Charpy V-Notch Properties (J)
As welded4855802720°C → 175
Isıl İşlem Sonrası (620°C 1 Saat)5005752620°C → 160

Application Information

Welding Positions :
Em 202 Kaynak Pozisyonu Em 202 Kaynak Pozisyonu Em 202 Kaynak Pozisyonu Em 202 Kaynak Pozisyonu Em 202 Kaynak Pozisyonu Em 202 Kaynak Pozisyonu

Polarity:

Em 202 Kutuplama

Welding Parameters & Efficiency :

Diameter x Length (mm)Current (A)
2.50x35060-90
3.25x35090-130
4.00x450140-180
5.00x450180-240

Packaging Information

Product CodeDiameter x Length (mm)Quantity per BoxBox Gross Weight (kg)Boxes per Outer BoxOuter Box Gross Weight (kg)Packaging Type
12015HKEM22.50x350118 pcs2.54615.50VAC Box
12015HREM22.50x350236 pcs5.07315.40Cardboard Box
12015NKEM23.25x35072 pcs2.54615.50VAC Box
12015NREM23.25x350144 pcs5.07315.40Cardboard Box
12015SKEM24.00x45037 pcs2.56615.60VAC Box
12015SSEM24.00x45096 pcs6.58319.90Cardboard Box
12015VSEM25.00x45064 pcs6.58319.90Cardboard Box

Storage & Re-Drying Information

>It can be dried maximum 5 times.
>It has to be dried at 350°C for 2 hours.
