EM 203

Standards

AWS/ASME SFA - 5.5 E7018-A1 H4
EN ISO 3580 - A E Mo B 42 H5
TS EN ISO 3580 - A E Mo B 42 H5

Properties and Applications

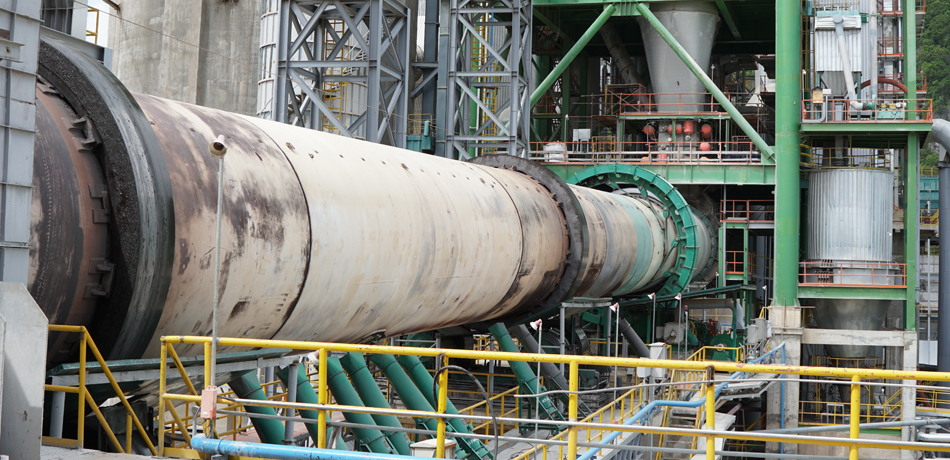

Basic type electrode for welding creep resistant steels subjected to operating temperatures of up to 350°C. Generally used for joining and maintenance of rotary oven plates in cement industry. Welds are of X-ray quality. Preheating, interpass temperature and post-weld heat treatment shall be done according to base metal used.
Em 203 Sert Dolgu

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnMo
Weld Deposit0.090.450.900,50

Typical Mechanical Values of Weld Metal(%)

Test ConditionYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)Hardness (HB)Charpy V-Notch Properties (J)
As welded5106002622020°C → 130

Application Information

Welding Positions :
Em 203 Kaynak Pozisyonu Em 203 Kaynak Pozisyonu Em 203 Kaynak Pozisyonu Em 203 Kaynak Pozisyonu Em 203 Kaynak Pozisyonu Em 203 Kaynak Pozisyonu

Polarity:

Em 203 Kutuplama DC(+)

Welding Parameters & Efficiency :

Diameter x Length (mm)Current (A)Weld Deposit(Kg)/1Kg Consumed ElectrodeNumber of Electrodes/1Kg Weld DepositWeld Metal Deposition Rate (Kg/h)Efficiency(%)
3.25x350100-1400,6461,32117
4.00x350140-1800,6321,69117

Packaging Information

Product CodeDiameter X Length (mm)Pieces per Box (~)Weight Of The Box (kg)Number Of Boxes Per PackageWeight Of The PackagePackaging Type
12032HREM22.50x3502255.0315.2Cardboard Box
12032NREM23.25x3501264.5313.9Cardboard Box
12032QREM24.00x3501005.0315.2Cardboard Box

Storage & Re-Drying Information

>It can be dried maximum 5 times.
>It has to be dried at 350°C for 2 hours.
