EM 206

Datasheet

Standards

AWS/ASME SFA - 5.5	E9018-D1
EN ISO 3580 - A	E Z Mo B 42
TS EN ISO 3580 - A	E Z Mo B 42

Properties And Applications

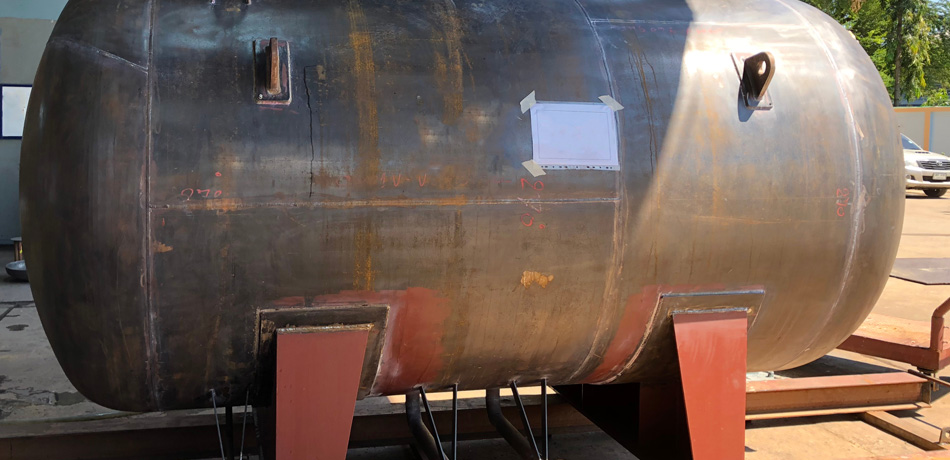

Basic type electrode for welding creep resistant steels employed in the fabrication of pressure vessels, boilers and pipes, subjected to operating temperatures of up to 500°C and high strength steels with high impact resistance up to -50°C. Welds are of X-ray quality. Especially preferred for welding of thick sections where high mechanical properties, charpy impact values and X-ray quality are required. Preheating, interpass temperature and post-weld heat treatment shall be done according to base metal used.

Typical Chemical Values of Weld Metal

Type of Analysis	C	Si	Mn	Ni	Mo
Weld Deposit	0.07	0,50	1.40	0,50	0.35

Type of Analysis

Weld Deposit

0.07

0,50

1.40

0,50

0.35

Typical Mechanical Values of Weld Metal(%)

Test Condition	Yield Strength (N/mm²)	Tensile Strength (N/mm²)	Elongation A5 (%)	Charpy V-Notch Properties (J)
Isıl İşlem Sonrası (620°C 1 Saat)	620	700	23	-50°C → 65

Test Condition

Yield Strength (N/mm²)

Tensile Strength (N/mm²)

Elongation A5 (%)

Charpy V-Notch Properties (J)

Isıl İşlem Sonrası (620°C 1 Saat)

620

700

-50°C → 65

Application Information

Welding Positions :

Polarity:

Welding Parameters & Efficiency :

Diameter x Length (mm)	Current (A)
2.50x350	60-90
3.25x350	90-130
4.00x450	130-180
5.00x450	170-240

Packaging Information

Product Code	Diameter x Length (mm)	Quantity per Box	Kutu Brüt Ağırlığı (kg)	Boxes per Outer Box	Koli Ağırlığı (kg)	Packaging Type
12016HREM2	2.50x350	224 ad	5.06	3	15.40	Cardboard Box
12016NREM2	3.25x350	138 ad	5.06	3	15.40	Cardboard Box
12016SSEM2	4.00x450	94 ad	6.58	3	19.90	Cardboard Box
12016VSEM2	5.00x450	59 ad	6.58	3	19.90	Cardboard Box

Storage & Re-Drying Information

>It can be dried maximum 5 times.

>It has to be dried at 350°C for 2 hours.
