EM 211

Standards

AWS/ASME SFA - 5.5 E8013-G
EN ISO 3580 - A E CrMo1 R 12
TS EN ISO 3580 - A E CrMo1 R 12

Properties And Applications

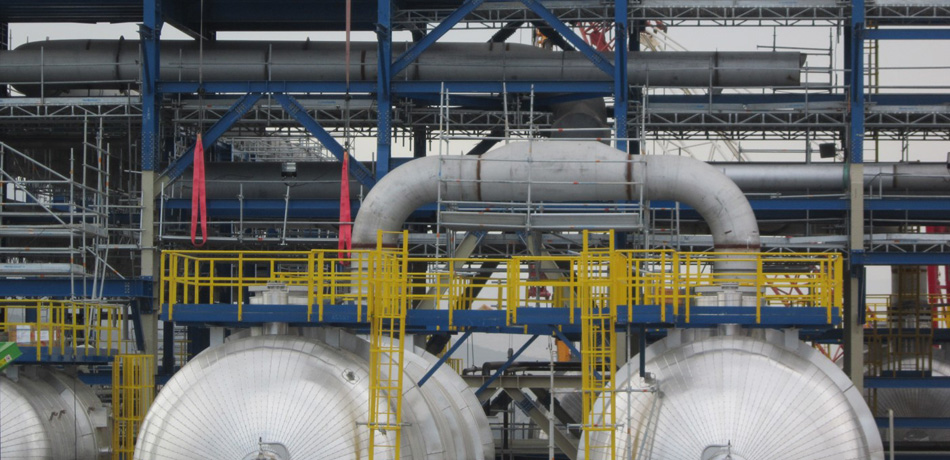

Rutile type, heavy coated electrode for welding creep resistant steels employed in the fabrication of pressure vessels, boilers and pipes, subjected to operating temperatures of up to 570°C. Due to its rutile covering, also possible to work in alternating current (AC). Easy arc striking and restriking. Very smooth welds, blending into base metal without undercuts. For thick sections, basic covered EM 212 shall be preferred. Preheating, interpass temperature and post-weld heat treatment shall be done according to base metal used.

Approvals & Certificates

Materials

Width DIN
13CrMo4-5 13CrMo4-4
16CrMo4-4
G17CrMo5-5 GS-17 CrMo 5 5

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrMo
Weld Deposit0.060.300,501.050,50

Typical Mechanical Values of Weld Metal(%)

Test ConditionYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)Charpy V-Notch Properties (J)
Isıl İşlem Sonrası (690°C 1 Saat)6306902120°C → 80

Application Information

Welding Positions :
Em 211 Kaynak Pozisyonu Em 211 Kaynak Pozisyonu Em 211 Kaynak Pozisyonu Em 211 Kaynak Pozisyonu Em 211 Kaynak Pozisyonu Em 211 Kaynak Pozisyonu

Polarity:

Em 211 Kutuplama Em 211 Kutuplama

Welding Parameters & Efficiency :

Diameter x Length (mm)Current (A)
2.50x35065-90
3.25x350110-140
4.00x450130-180
5.00x450190-240

Packaging Information

Product CodeDiameter x Length (mm)Quantity per BoxBox Gross Weight (kg)Boxes per Outer BoxOuter Box Gross Weight (kg)Packaging Type
12017HREM22.50x350238 pcs5.07315.40Cardboard Box
12017NREM23.25x350152 pcs5.07315.40Cardboard Box
12017SSEM24.00x45097 pcs6.58319.90Cardboard Box
12017VSEM25.00x45062 pcs6.58319.90Cardboard Box

Storage & Re-Drying Information

>Generally not required. If required, redry for 1 hour at 110°C.
