EM 212

Datasheet

Standards

AWS/ASME SFA - 5.5	E8018-B2 H4R
EN ISO 3580 - A	E CrMo1 B 42 H5
TS EN ISO 3580 - A	E CrMo1 B 42 H5

Properties And Applications

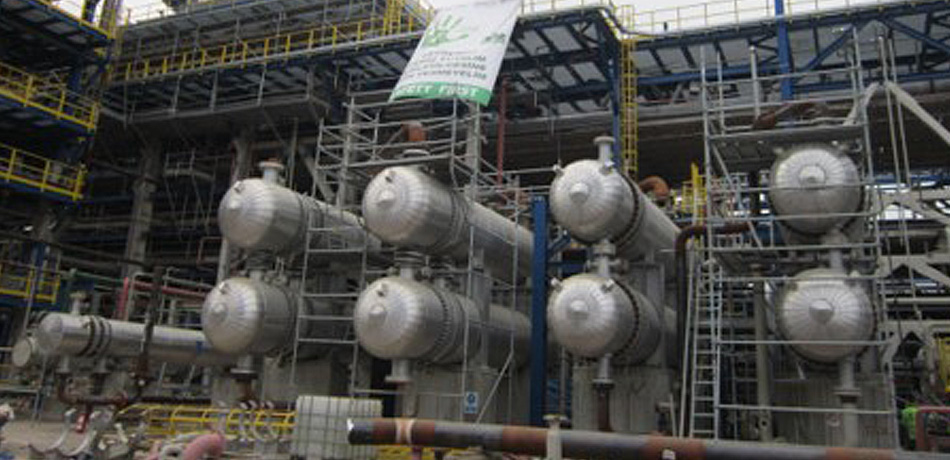

Basic type, heavy coated electrode for welding creep resistant steels employed in the fabrication of pressure vessels, boilers and pipes, subjected to operating temperatures of up to 570°C. Welds are of X-ray quality. Weld metal has a low diffusible hydrogen content (4ml/100g). Generally preferred in thick sections an where high mechanical properties and X-ray quality are necessary. Preheating interpass temperature and post-weld heat treatment shall be done according to base metal used.

Product Features And Advantages

Suitable for operating temparatures up to 570°CLow spatter, smooth bead apperance with stable arc Easy slag removalLow hydrogen content (?4ml/100g)Electrode efficieny 115-120%Also available in vacuum pack

Approvals & Certificates

TUV

Materials

Width	DIN	ASTM
13CrMo4-5	13CrMo4-4
	16CrMo4-4
G17CrMo5-5	GS-17 CrMo 5 5
	GS-22 CrMo 5 4
12CrMo19-5
X12CrMo5
		A335-P11
		A335-P12
		A213-T11
		A213-T12
		A387-Grade 11
		A387-Grade 12

Typical Chemical Values of Weld Metal

Type of Analysis	C	Si	Mn	Cr	Mo
Weld Deposit	0.06	0.40	0.65	1.25	0.55

Type of Analysis

Weld Deposit

0.06

0.40

0.65

1.25

0.55

Typical Mechanical Values of Weld Metal(%)

Test Condition	Yield Strength (N/mm²)	Tensile Strength (N/mm²)	Elongation A5 (%)	Charpy V-Notch Properties (J)
Isıl İşlem Sonrası (690°C 1 Saat)	530	610	22	20°C → 140

Test Condition

Yield Strength (N/mm²)

Tensile Strength (N/mm²)

Elongation A5 (%)

Charpy V-Notch Properties (J)

Isıl İşlem Sonrası (690°C 1 Saat)

530

610

20°C → 140

Application Information

Welding Positions :

Polarity:

Welding Parameters & Efficiency :

Diameter x Length (mm)	Current (A)
2.50x350	60-85
3.25x350	100-130
4.00x350	140-180
4.00x450	130-180
5.00x450	180-230

Packaging Information

Product Code	Diameter x Length (mm)	Quantity per Box	Box Gross Weight (kg)	Boxes per Outer Box	Outer Box Gross Weight (kg)	Packaging Type
12018HEEM2	2.50x350	224 pcs	5.21	3	15.80	Plastic Box
12018HKEM2	2.50x350	112 pcs	2.54	6	15.50	VAC Box
12018HREM2	2.50x350	224 pcs	5.07	3	15.40	Cardboard Box
12018NEEM2	3.25x350	136 pcs	5.21	3	15.80	Plastic Box
12018NKEM2	3.25x350	68 pcs	2.54	6	15.50	VAC Box
12018NREM2	3.25x350	136 pcs	5.07	3	15.40	Cardboard Box
12018QKEM2	4.00x350	49 pcs	2.54	6	15.60	VAC Box
12018SKEM1	4.00x450	35 pcs	2.42	6	14.80	VAC Box
12018SSEM2	4.00x450	96 pcs	6.58	3	19.90	Cardboard Box
12018VSEM2	5.00x450	62 pcs	6.58	3	19.90	Cardboard Box

Storage & Re-Drying Information

>It can be dried maximum 5 times.

>It has to be dried at 350°C for 2 hours.
