EM 222

Datasheet

Standards

AWS/ASME SFA - 5.5	E9018-B3
EN ISO 3580 - A	E CrMo2 B 42 H5
TS EN ISO 3580 - A	E CrMo2 B 42 H5

Properties And Applications

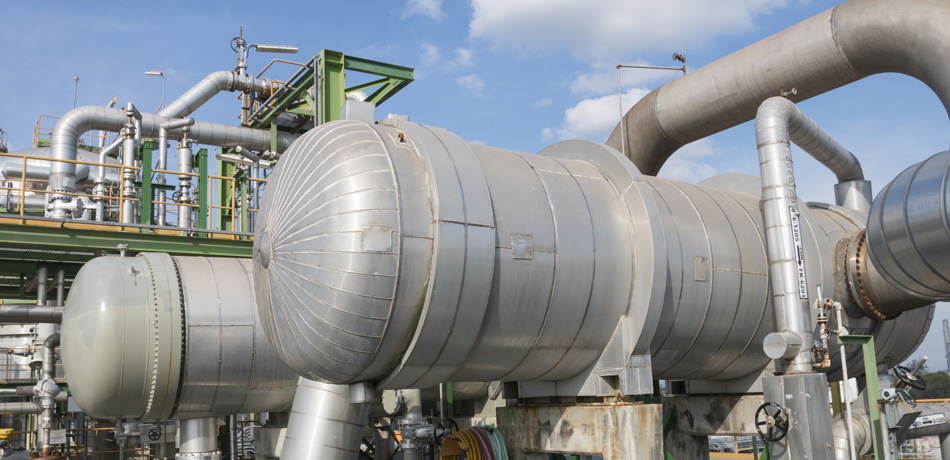

Basic type, heavy coated electrode for welding creep resistant and high pressure hydrogen resistant steels used in construction of pressure vessels, boiler and piping subjected to operating tempetarures up to 600°C. Generally preferred in thick sections with high mechanical properties and X-ray quality necessary. Has a stable arc, low spatter and smooth weld beads. Slag removal is easy. Weld metal has low diffusible hydrogen content (4ml/100g). Preheating, interpass temperature and post-weld heat treatment should be done in accordance with base metal to be welded.

Approvals & Certificates

TUV

Materials

DIN	ASTM
10CrMo9-10	A335-P22
12CrMo9-10
GS-12 CrMo 9 10
	A213-T22
	A387-Grade 22

Typical Chemical Values of Weld Metal

Type of Analysis	C	Si	Mn	Cr	Mo
Weld Deposit	0.06	0.30	0.60	2.20	1.00

Type of Analysis

Weld Deposit

0.06

0.30

0.60

2.20

1.00

Typical Mechanical Values of Weld Metal(%)

Test Condition	Yield Strength (N/mm²)	Tensile Strength (N/mm²)	Elongation A5 (%)	Charpy V-Notch Properties (J)
Isıl İşlem Sonrası (690°C 1 Saat)	565	660	22	20°C → 160

Test Condition

Yield Strength (N/mm²)

Tensile Strength (N/mm²)

Elongation A5 (%)

Charpy V-Notch Properties (J)

Isıl İşlem Sonrası (690°C 1 Saat)

565

660

20°C → 160

Application Information

Welding Positions :

Polarity:

Welding Parameters & Efficiency :

Packaging Information

PRODUCT CODE	Diameter x Length (mm)	Quantity per box (approx.)	Box Net Weight (kg)	NUMBER OF BOXES IN PACKAGE	Package Net Weight (kg)	Packaging Type
12020HKEM2	2.50x350	124 pcs	2.5	6	15.5	VAC Box
12020HREM2	2.50x350	248 pcs	5.0	3	15.4	Cardboard Box
12020NKEM2	3.25x350	73 pcs	2.5	6	15.5	VAC Box
12020NREM2	3.25x350	146 pcs	5.0	3	15.4	Cardboard Box
12020QKEM2	4.00x350	48 pcs	2.5	6	15.5	VAC Box
12020SSEM2	4.00x450	95 pcs	6.5	3	19.9	Cardboard Box
12020VSEM2	5.00x450	62 pcs	6.5	3	19.9	Cardboard Box

Storage & Re-Drying Information

>It can be dried maximum 5 times.

>It has to be dried at 350°C for 2 hours.
