ENI 402 (Ni)

Standards

AWS/ASME SFA - 5.15 ENi-CI
EN ISO 1071 E C Ni - CI 3
TS EN ISO 1071 E C Ni - CI 3

Materials

DIN
GG 10 - GG 35
GTS 35-10 - GTS 70-02
GGG 40 - GGG 70
GTW 35-04 - GTW S 38-12

Properties and Applications

Electrode having a pure nickel core wire for welding cast iron without or with low preheating (max. 300°C). Suitable for welding cast iron with lamellar graphite, white and black heart malleable and nodular cast iron. Used also for repair welding of cracked cast iron parts or joining components made of steel, copper or nickel materials to cast irons. Weld metal is machinable. Provides easy arc striking and restriking, stable arc and smooth bead surface. Weld short beads, about 30 to 50 mm long. In order to reduce weld residual stresses, hammer-peen welds slightly before cooling. Preferably used with DCEP but possible to use also with AC.
Eni 402 (Ni) Sert Dolgu

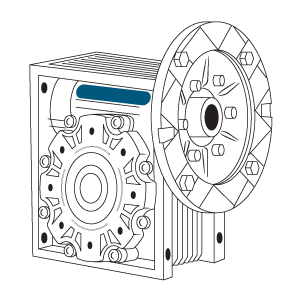

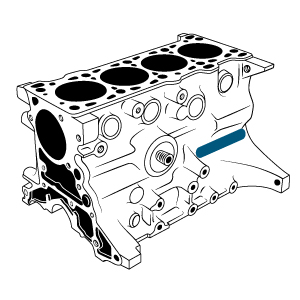

Typical Applications

Eni 402 (Ni) Model Tipik Uygulamalar Eni 402 (Ni) Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnNiTiFe
Weld Deposit0.400.450.2097.500.451.00

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HB)
As welded160

Application Information

Welding Positions :
Eni 402 (Ni) Kaynak Pozisyonu Eni 402 (Ni) Kaynak Pozisyonu Eni 402 (Ni) Kaynak Pozisyonu Eni 402 (Ni) Kaynak Pozisyonu Eni 402 (Ni) Kaynak Pozisyonu Eni 402 (Ni) Kaynak Pozisyonu

Polarity:

Eni 402 (Ni) Kutuplama Eni 402 (Ni) Kutuplama

Welding Parameters & Efficiency :

Diameter x Length (mm)Current (A)Weld Deposit(Kg)/1Kg Consumed ElectrodeNumber of Electrodes/1Kg Weld DepositWeld Metal Deposition Rate (Kg/h)Verimlilik(%)
2.50x30050-700,68880,5107
3.25x30090-1100,68510,59110
4.00x400110-1400,69250,85102
5.00x400140-2000,69161,1487

Packaging Information

Product CodeDiameter X Length (mm)Kutudaki Miktar (yakl)Kutu Net Ağırlığı (kg)Number Of Boxes In PackageKoli Net Ağırlığı (kg)Packaging Type
16000G9EM12.50x30015 ad0.34011.8Blister
16000GBEM22.50x30059 ad1.0120.0Plastic Box
16000GDEM22.50x300150 ad2.538.0Plastic Box
16000GJEM22.50x300105 ad1.81018.0VAC Box
16000M9EM13.25x30010 ad0.34013.2Blister
16000MBEM23.25x30036 ad1.0120.0Plastic Box
16000MDEM23.25x30087 ad2.538.0Plastic Box
16000MJEM23.25x30061 ad1.81018.5VAC Box
16000RBEM24.00x40030 ad1.81019.0Plastic Box
16000RJEM24.00x40039 ad2.3921.0VAC Box
16000UJEM25.00x40028 ad2.3921.0VAC Box

Storage & Re-Drying Information

>It can be dried maximum 5 times.
> It has to be dried at 150°C for 1 hour.
