ENI 403(Ni)

Standards

AWS/ASME SFA - 5.15 ENi-CI
EN ISO 1071 E C Ni - CI 3
TS EN ISO 1071 E C Ni - CI 3

Materials

EN DIN
GG 10 - GG 35
GTS 35-10 - GTS 70-02
GGG 40 - GGG 70
GTW 35-04 - GTW S 38-12

Properties and Applications

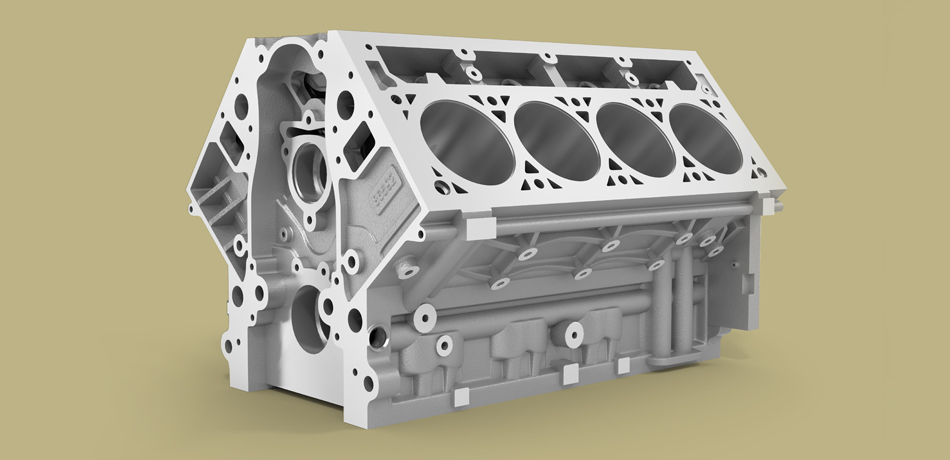

It is a basic-graphite coated electrode without barium, featuring a pure nickel core wire, and does not strike arc from its coating. It is suitable for the cold welding of grey cast iron, malleable cast iron, and cast steels, as well as for repair welding of castings showing signs of fatigue. Specifically designed for welding in deep holes or in applications where the coating may come into contact with the base material. It offers excellent welding performance even at low amperages. Produces a weld metal that is easy to machine and ensures a smooth fusion with the base material. It is used for the repair of engine blocks, machine tool frames, gearboxes, reduction parts, valve and pump housings.
Eni 403(Ni) Sert Dolgu

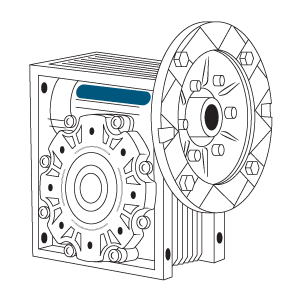

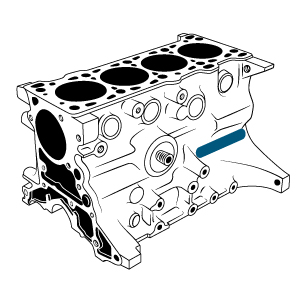

Typical Applications

Eni 403(Ni) Model Tipik Uygulamalar Eni 403(Ni) Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnNiCuFe
Weld Deposit0.550.600.2087.000.708.00

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HB)
As welded~170

Application Information

Welding Positions :
Eni 403(Ni) Kaynak Pozisyonu Eni 403(Ni) Kaynak Pozisyonu Eni 403(Ni) Kaynak Pozisyonu Eni 403(Ni) Kaynak Pozisyonu Eni 403(Ni) Kaynak Pozisyonu Eni 403(Ni) Kaynak Pozisyonu

Polarity:

Eni 403(Ni) Kutuplama DC(+)
Eni 403(Ni) Kutuplama AC

Welding Parameters & Efficiency :

Diameter x Length (mm)Current (A)
2.50x30050-70
3.25x30090-110

Packaging Information

Product CodeDiameter X Length (mm)Pieces per Box (~)Weight Of The Box (kg)Boxes Per PackageWeight Of The PackagePackaging Type
16012GPEM12.50x300500.9160.0Cardboard Box
16012MPEM13.25x300250.7160.0Cardboard Box

Storage & Re-Drying Information

>It can be dried maximum 5 times.
> It has to be dried at 150°C for 1 hour.
