ENI 424

Standards

AWS/ASME SFA - 5.11 ~ENiCrMo-4
EN ISO 14172 E Ni 6275
TS EN ISO 14172 E Ni 6275
DIN 8555 E 23-UM-200-CZKT

Properties and Applications

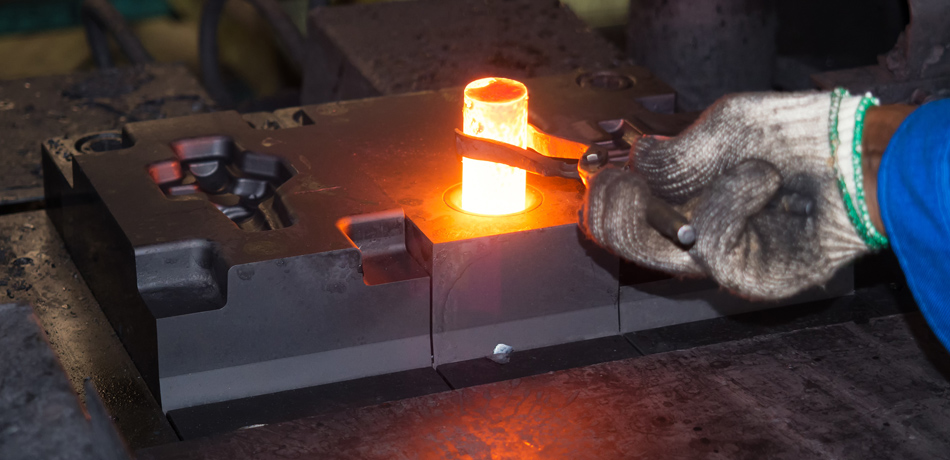

Heavy coated, high recovery (170%) surfacing and hard surfacing electrode which gives Nickel-Chromium-Molibdenum alloy weld metal. Weld metal is resistant to abrasion, impact, corrosion and high temperatures. Especially used in welding of hot-work press tools which are subjected to above service conditions. Suitable to use inmaintenance welding of hot-work press tools and hammers, forging and extrusion dies and parts, pressure casting pistons and dies, rolling rolls, hot-stripping tools, pump rotors and valves. Preheating to 400-500°C is required, depending on the size, shape and chemical analysis of the part to be welded. Has a stable arc, smooth weld bead surface and weld metal is free of cracks and porosity. Welding shall be performed with short stick-out distance, perpendicular to base metal and craters shall be filled well. Preferred to use with DC, electrode in positive (+) and possible to use also in AC.
Eni 424 Sert Dolgu

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrNiMoWFeCo
Weld Deposit0.020,500.6014.5055.0017.503.205.502.00

Typical Mechanical Values of Weld Metal(%)

Test ConditionYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)Hardness (HB)
As welded52072033200

Application Information

Welding Positions :
Eni 424 Kaynak Pozisyonu Eni 424 Kaynak Pozisyonu Eni 424 Kaynak Pozisyonu Eni 424 Kaynak Pozisyonu Eni 424 Kaynak Pozisyonu Eni 424 Kaynak Pozisyonu

Polarity:

Eni 424 Kutuplama Eni 424 Kutuplama

Welding Parameters & Efficiency :

Diameter x Length (mm)Current (A)Weld Deposit(Kg)/1Kg Consumed ElectrodeNumber of Electrodes/1Kg Weld DepositWeld Metal Deposition Rate (Kg/h)Efficiency(%)
2.50x35080-1200,65491,32169
3.25x300100-1600,65341,75169
3.25x350100-1600,66291,75169
4.00x400120-2000,67202,24169
5.00x350160-2400,67132,69169

Packaging Information

Product CodeDiameter X Length (mm)Quantity per box (approx.)Box Net Weight (kg)Number Of Boxes In PackagePackage Net Weight (kg)Packaging Type
16006HJEM22.50x35068 pcs2.0918.8VAC Box
16006MJEM23.25x30043 pcs2.0918.8VAC Box
16006NJEM23.25x35036 pcs2.0918.8VAC Box
16006RJEM24.00x40026 pcs2.3921.0VAC Box
16006TJEM25.00x35019 pcs2.0918.8VAC Box

Storage & Re-Drying Information

>It has to be dried at 200°C for 2 hour.
>It can be dried maximum 5 times.
