ESB 42

Datasheet

Standards

AWS/ASME SFA - 5.1	E7016 H8
EN ISO 2560 - A	E 42 4 B 12 H10
TS EN ISO 2560 - A	E 42 4 B 12 H10

Properties And Applications

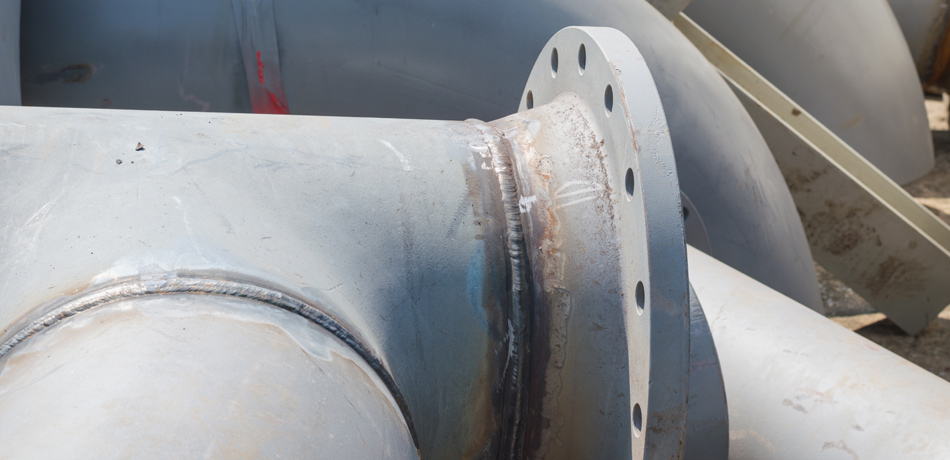

Multi-purpose electrode for assembly work, workshop and maintenance welding. Particularly used for repair welding of earthmoving equipment booms and approved for rail joint welding. Suitable for root passes as well as positional welding. Smooth and clean welds, merging into base metal without undercuts. Good gap bridging properties. Welds are of X-ray quality.

Approvals & Certificates

HAKC

TSE

Materials

Width	DIN
S185 - S355J0	St 33- St 52.3
E295	St 50.2
P235GH, P265GH	H I, H II
P295GH	17Mn4
P235TR2 - P355T2	St37.4 - St 52.4
P235G1TH, P255G1TH	StE 35.8 - StE 45.8
L210 - L360NB	StE 210.7 - StE 360.7
S255N - S355N	StE 255- StE 355
GE 200, GE 240, GE 260	GS 38, GS 45, GS 52
	AH 32, EH 36
	A, B, D, E

Typical Chemical Values of Weld Metal

Type of Analysis	C	Si	Mn
Weld Deposit	0.06	0.35	0.85

Type of Analysis

Weld Deposit

0.06

0.35

0.85

Typical Mechanical Values of Weld Metal(%)

Test Condition	Yield Strength (N/mm²)	Tensile Strength (N/mm²)	Elongation A5 (%)	Charpy V-Notch Properties (J)
As welded	490	580	29	-20°C → 105	-40°C → 65

Test Condition

Yield Strength (N/mm²)

Tensile Strength (N/mm²)

Elongation A5 (%)

Charpy V-Notch Properties (J)

As welded

490

580

-20°C → 105

-40°C → 65

Application Information

Welding Positions :

Polarity:

Welding Parameters & Efficiency :

Diameter x Length (mm)	Current (A)
2.50x350	60-90
3.25x350	90-140
4.00x350	140-190
4.00x450	140-190

Packaging Information

Product Code	Diameter x Length (mm)	Quantity per Box	Kutu Brüt Ağırlığı (kg)	Boxes per Outer Box	Koli Ağırlığı (kg)	Packaging Type
11201HREM2	2.50x350	243 ad	5.07	3	15.40	Cardboard Box
11201NREM2	3.25x350	155 ad	5.07	3	15.40	Cardboard Box
11201QREM2	4.00x350	98 ad	5.07	3	15.40	Cardboard Box
11201SSEM2	4.00x450	99 ad	6.58	3	19.90	Cardboard Box

Storage & Re-Drying Information

>It can be dried maximum 5 times.

>It has to be dried at 350°C for 2 hours.
