ESC 60

Datasheet

Standards

AWS/ASME SFA - 5.1	E6010
EN ISO 2560 - A	E 42 2 C 21
TS EN ISO 2560 - A	E 42 2 C 21

Properties And Applications

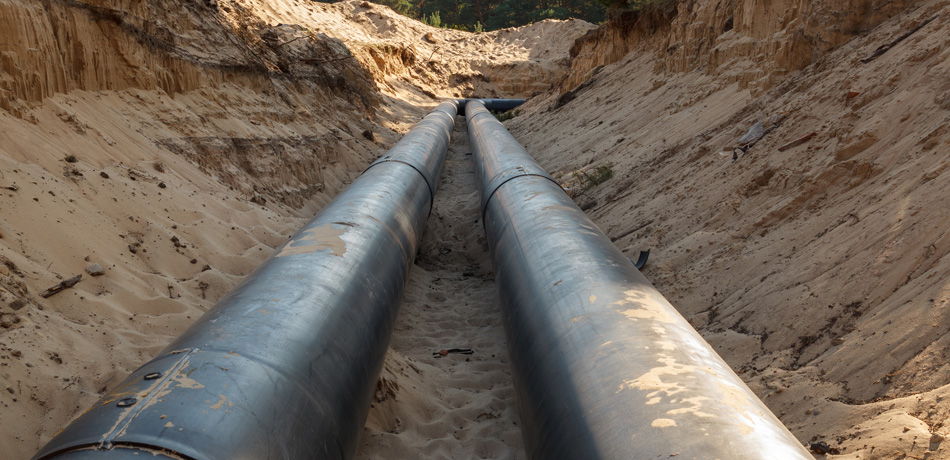

Medium coated, cellulosic electrode, especially designed for welding of pipes and plates in all positions at low welding currents. Due to its high penetration, particularly suitable for root pass and fill passes in vertical down direction. Used in pipe-line construction, shipbuilding, storage vessels and assembly works. DCEN (-) is ideal in root passes and DCEP (+) is recommended for fill and cap passes in vertical down position.

Approvals & Certificates

CWB

TSE

TUV

Typical Chemical Values of Weld Metal

Type of Analysis	C	Si	Mn
Weld Deposit	0.12	0.20	0.60

Type of Analysis

Weld Deposit

0.12

0.20

0.60

Typical Mechanical Values of Weld Metal(%)

Test Condition	Yield Strength (N/mm²)	Tensile Strength (N/mm²)	Elongation A5 (%)	Charpy V-Notch Properties (J)
As welded	470	530	25	-20°C → 60	-30°C → 40

Test Condition

Yield Strength (N/mm²)

Tensile Strength (N/mm²)

Elongation A5 (%)

Charpy V-Notch Properties (J)

As welded

470

530

-20°C → 60

-30°C → 40

Application Information

Welding Positions :

Polarity:

Welding Parameters & Efficiency :

Diameter x Length (mm)	Current (A)
2.50x350	40-80
3.25x350	60-120
4.00x350	80-150
5.00x350	120-190

Packaging Information

Product Code	Diameter x Length (mm)	Quantity per Box	Box Gross Weight (kg)	Boxes per Outer Box	Outer Box Gross Weight (kg)	Packaging Type
11400HREM2	2.50x350	285 pcs	5.06	3	15.30	Cardboard Box
11400HZTM2	2.50x350	455 pcs	8.27	2	8.30	Tin Box
11400NQEM2	3.25x350	84 pcs	2.54	6	15.40	Cardboard Box
11400NREM2	3.25x350	168 pcs	5.06	3	15.30	Cardboard Box
11400NZTM2	3.25x350	269 pcs	8.27	2	8.30	Tin Box
11400QREM2	4.00x350	112 pcs	5.06	3	15.30	Cardboard Box
11400QZTM2	4.00x350	178 pcs	8.27	2	8.30	Tin Box
11400TREM2	5.00x350	71 pcs	5.06	3	15.30	Cardboard Box
11400TZTM2	5.00x350	114 pcs	8.27	2	8.30	Tin Box

Storage & Re-Drying Information

>Don't redry.
