ESC 61

Standards

AWS/ASME SFA - 5.1 E6011
EN ISO 2560 - A E 35 2 C 21
TS EN ISO 2560 - A E 35 2 C 21

Approvals & Certificates

Özellikleri ve Uygulama Alanları

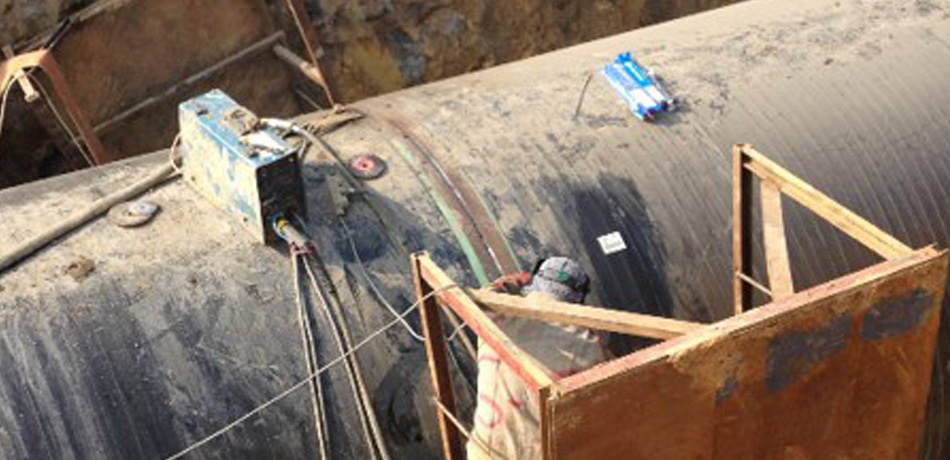

Medium coated, celllulosic electrode, especially designed for use in AC, as well as in DC. Due to its high penetration, it is suitable for root pass and fill passes in vertical down direction. Used in shipbuilding, strorage vessels, boilers, pipeline constructions, assembly and repair works in mild steels, steel casting, galvanized sheets and machinery parts. AC or DCEN (-) is ideal in root passes and AC or DCEP (+) is recommended for fill and cap passes in vertical down direction.
Esc 61 Sert Dolgu

Kaynak Metalinin Tipik Kimyasal Özellikleri

Type of AnalysisCSiMn
Weld Deposit0.120.200.55

Kaynak Metalinin Tipik Mekanik Özellikleri(%)

Test ŞekliAkma Dayanımı (N/mm²)Çekme Dayanımı (N/mm²)Elongation A5 (%)Çentik Darbe Dayanımı ISO-V (J)
Kaynak Sonrası47053024-20°C → 50

Application Information

Kullanılabilecek Kaynak Pozisyonları :
Esc 61 Kaynak Pozisyonu Esc 61 Kaynak Pozisyonu Esc 61 Kaynak Pozisyonu Esc 61 Kaynak Pozisyonu Esc 61 Kaynak Pozisyonu Esc 61 Kaynak Pozisyonu Esc 61 Kaynak Pozisyonu

Polarity:

Esc 61 Kutuplama Kök Pasoda DC(-)
Esc 61 Kutuplama AC
Esc 61 Kutuplama Filler Pass DC (+)

Welding Parameters & Efficiency :

Çap x Uzunluk (mm)Akım (A)
2.50x35060-100
3.25x35070-130
4.00x350120-170
5.00x350160-200

Packaging Information

Ürün KoduÇap X Uzunluk (mm)Pieces per Box (~)Kutu Ağırlığı (kg)Number Of Boxes Per PackageKoli AğırlığıPackaging Type
11402HREM22.50x3502995.0315.4Cardboard Box
11402NREM23.25x3501815.0315.4Cardboard Box
11402QREM24.00x3501175.0315.4Cardboard Box
11402TREM25.00x350735.0315.4Cardboard Box

Storage & Re-Drying Information

>Don't redry.
