ESC 70G

Datasheet

Standards

AWS/ASME SFA - 5.5	E7010-G
EN ISO 2560 - A	E 42 2 C 21
TS EN ISO 2560 - A	E 42 2 C 21

Properties And Applications

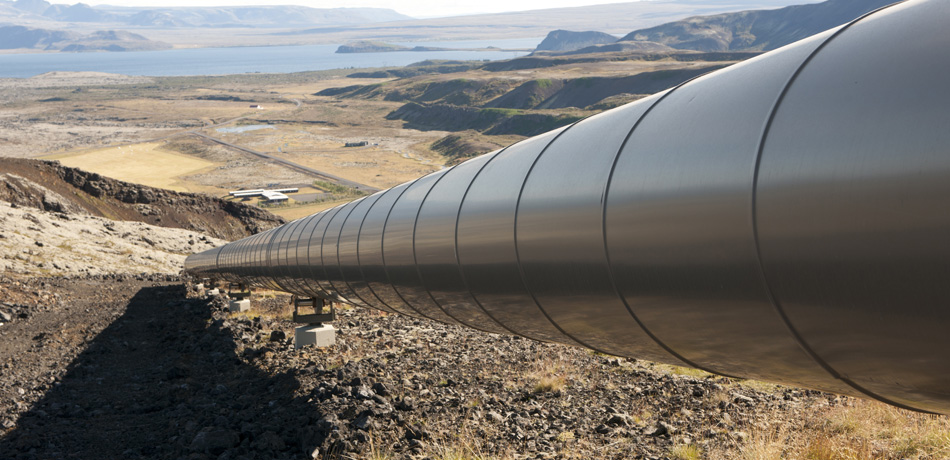

Medium coated and Ni (nickel) alloyed cellulosic type electrode, suitable for welding high strength steels, micro-alloyed and low alloyed steels and pipes. Due to its high penetration, it is suitable for root pass and fill passes in the vertical down direction. Well-suited for welding high strength unalloyed and low alloy steels in shipbuilding, storage vessels, boilers, pipe-line constructions and assembly works. DCEN (-) is ideal in root passes and DCEP (+) is recommended for fill and cap passes in vertical down position.

Approvals & Certificates

TSE

Materials

Width	DIN
S185 - P275T1	St 33 - St 44.0
P235TR2 - P355T2	St 37.4 - St 52.4
P355T1	St 52.0
L210 - L360NB	StE 210.7 - StE 360.7
L290MB - L360MB	StE 290.7 TM - StE 360.7 TM
	X42 - X65

Typical Chemical Values of Weld Metal

Type of Analysis	C	Si	Mn	Ni
Weld Deposit	0.15	0.30	1.30	0.20

Type of Analysis

Weld Deposit

0.15

0.30

1.30

0.20

Typical Mechanical Values of Weld Metal(%)

Test Condition	Yield Strength (N/mm²)	Tensile Strength (N/mm²)	Elongation A5 (%)	Charpy V-Notch Properties (J)
As welded	500	560	26	-20°C → 70	-30°C → 60

Test Condition

Yield Strength (N/mm²)

Tensile Strength (N/mm²)

Elongation A5 (%)

Charpy V-Notch Properties (J)

As welded

500

560

-20°C → 70

-30°C → 60

Application Information

Welding Positions :

Polarity:

Welding Parameters & Efficiency :

Diameter x Length (mm)	Current (A)
2.50x350	40-80
3.25x350	60-120
4.00x350	80-150
5.00x350	120-190

Packaging Information

Product Code	Diameter x Length (mm)	Quantity per Box	Kutu Brüt Ağırlığı (kg)	Boxes per Outer Box	Koli Ağırlığı (kg)	Packaging Type
11405HREM2	2.50x350	327 ad	5.07	3	15.40	Cardboard Box
11405NREM2	3.25x350	187 ad	5.07	3	15.40	Cardboard Box
11405QREM2	4.00x350	125 ad	5.07	3	15.40	Cardboard Box
11405QZTM2	4.00x350	200 ad	8.27	2	8.30	Tin Box
11405TREM2	5.00x350	82 ad	5.07	3	15.40	Cardboard Box

Storage & Re-Drying Information

>Don't redry.
