ESC 80G

Standards

AWS/ASME SFA - 5.5 E8010-G
EN ISO 2560 - A E 42 3 1Ni C 21
TS EN ISO 2560 - A E 42 3 1Ni C 21

Properties And Applications

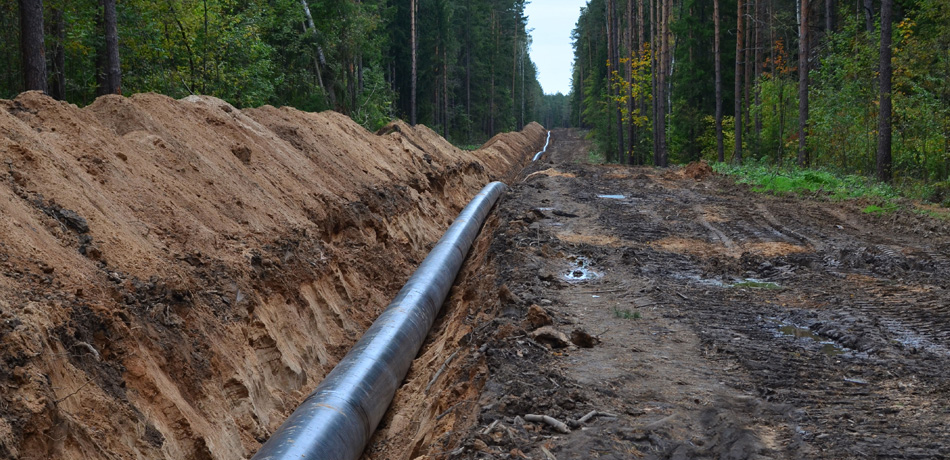

Medium coated and Ni (nickel) alloyed cellulosic type electrode for welding high strength and low alloyed steels and pipes. Due to its high penetration, it is suitable for root pass and fill passes in vertical down direction for use in pipe-line construction, shipbuilding, storage vessels and assembly works. DCEN (-) is ideal in root passes DCEP (+) is recommended for fill and cap passes in vertical down position.

Approvals & Certificates

TSE

Materials

Width DIN
S185 - P275T1 St 33 - St 44.0
P235TR2 - P355T2 St 37.4 - St 52.4
P355T1 St 52.0
L210 - L415NB StE 210.7 - StE 415.7
L290MB - L415MB StE 290.7 TM - StE 415.7 TM
X42 - X70

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnNi
Weld Deposit0.150.251.001.00

Typical Mechanical Values of Weld Metal(%)

Test ConditionYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)Charpy V-Notch Properties (J)
As welded50057024-20°C → 60-30°C → 50

Application Information

Welding Positions :
Esc 80G Kaynak Pozisyonu Esc 80G Kaynak Pozisyonu Esc 80G Kaynak Pozisyonu Esc 80G Kaynak Pozisyonu Esc 80G Kaynak Pozisyonu Esc 80G Kaynak Pozisyonu Esc 80G Kaynak Pozisyonu

Polarity:

Esc 80G Kutuplama Esc 80G Kutuplama

Welding Parameters & Efficiency :

Diameter x Length (mm)Current (A)
2.50x35040-80
3.25x35060-120
4.00x35080-150
5.00x350120-190

Packaging Information

Product CodeDiameter x Length (mm)Quantity per BoxBox Gross Weight (kg)Boxes per Outer BoxOuter Box Gross Weight (kg)Packaging Type
11407HREM22.50x350309 pcs5.07315.40Cardboard Box
11407NREM23.25x350181 pcs5.07315.40Cardboard Box
11407NZTM13.25x350285 pcs8.1720.00Tin Box
11407QREM24.00x350126 pcs5.07315.40Cardboard Box
11407QZTM14.00x350200 pcs8.2120.00Tin Box
11407TREM25.00x35080 pcs5.07315.40Cardboard Box
11407TZTM15.00x350130 pcs8.4020.00Tin Box

Storage & Re-Drying Information

>Don't redry.
