FCH 325

Standards

EN 14700 T Fe 1
TS EN 14700 T Fe 1

Properties and Applications

Gas shielded flux cored wire, which is developed for hardfacing of parts, subjected to metal-to-metal friction wear (adhesion) and impact. The weld metal has medium hardness and machinable bu chip forming, hardening is possible by flame or by induction hardening. Due to high toughness and high crack resistance, it is also suitable for buffer layer applications. Interpass temperature should not exceed 250°C, during welding.

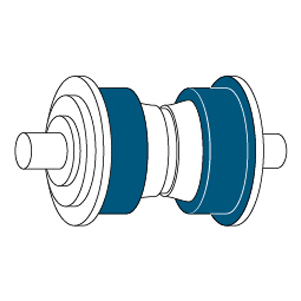

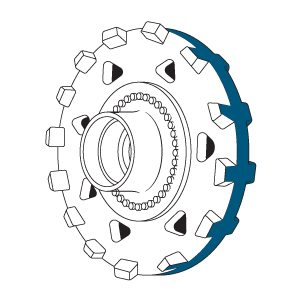

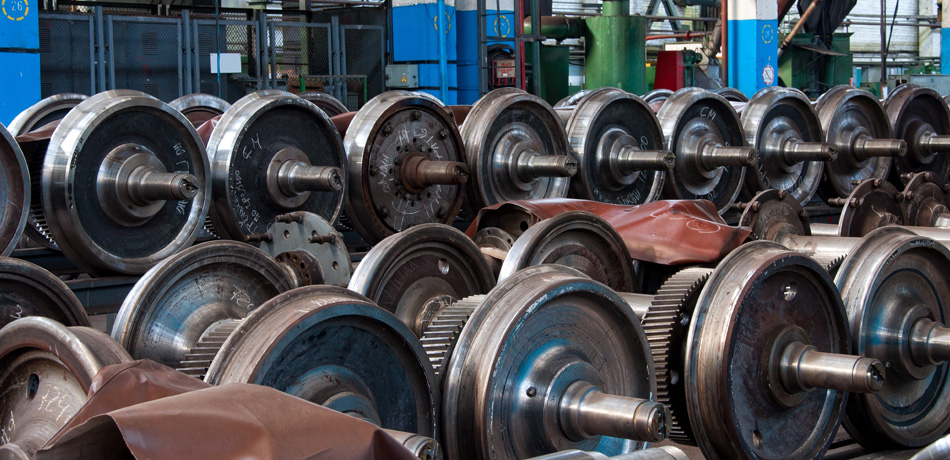

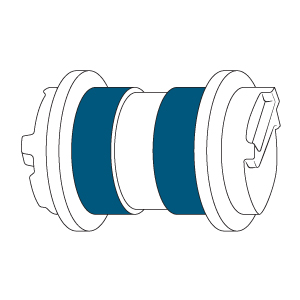

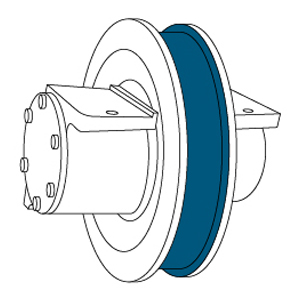

Typical Applications: Suitable for hardfacing rollers, railway rails and crossings, rolling mills, caterpillar track rolls and pads, gears, sprockets, shafts, crane rollers and mine car wheels.
Fch 325 Sert Dolgu

Wear Resistance Types and Microstructure


Abrasion

Adhesion

Darbe

Temperature

Corrosion
Düşük
ORTA
Yüksek
Çok Yüksek

Typical Applications

Fch 325 Model Tipik Uygulamalar Fch 325 Model Tipik Uygulamalar Fch 325 Model Tipik Uygulamalar Fch 325 Model Tipik Uygulamalar

Application Information

Welding Positions :
Fch 325 Kaynak Pozisyonu Fch 325 Kaynak Pozisyonu

Polarity:

Fch 325 Kutuplama

Protection Gas:

M21 C1

Welding Parameters & Efficiency :

Diameter (mm)Yığma Oranı(kg/saat)Verimlilik(%)
1.202.0195
1.604.2289

Packaging Information

Product CodeDiameter (mm)Kutudaki Miktar (yakl)Kutu Net Ağırlığı (kg)Number Of Boxes In PackageKoli Net Ağırlığı (kg)Packaging Type
38010EJAM21.2015 kg15.0115.7Wire Basket Spool (K300MS)
38010GJAM21.6015 kg15.0115.7Wire Basket Spool (K300MS)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
