FCH 335

Standards

EN 14700 T Fe1
TS EN 14700 T Fe1
DIN 8555 MF 1-GF-350-P

Properties and Applications

Gas shielded flux cored wire, which is developed for hardfacing of parts, subjected to metal-to-metal friction wear (adhesion) and medium degree impacts. The weld metal is tough and free of cracks and therefore resistant to shocks and impacts. Weld metal is easily machinable by chip forming. Interpass temperature should not exceed 250°C, during welding.

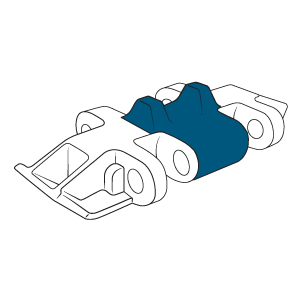

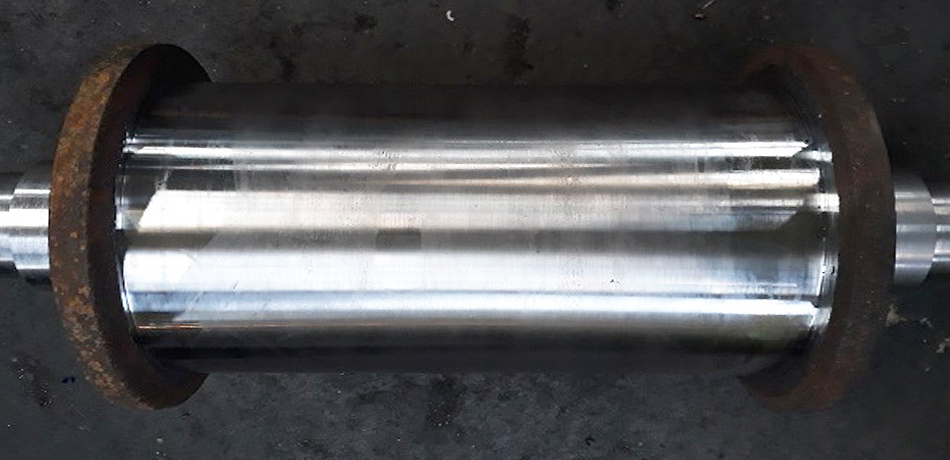

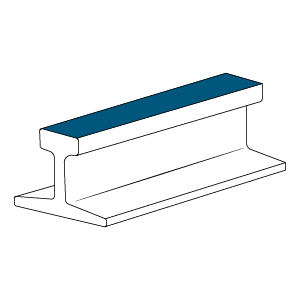

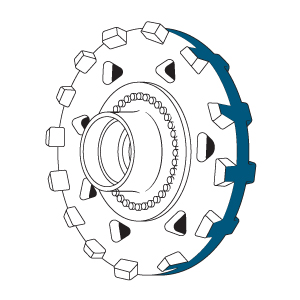

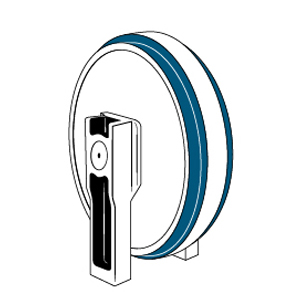

Typical Applications: Suitable for hardfacing rollers, railway rails and crossings, rolling mills, caterpillar track rolls and pads, gears, sprockets, shafts, crane rollers and mine car wheels.
Fch 335 Sert Dolgu

Wear Resistance Types


Abrasion

Adhesion

Impact

Temperature

Corrosion
Low
Medium
High
Very High

Typical Applications

Fch 335 Model Tipik Uygulamalar Fch 335 Model Tipik Uygulamalar Fch 335 Model Tipik Uygulamalar Fch 335 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisProtection GasCSiMnCrMoFe
Weld DepositC10.200.401.302.000,5095.60

Typical Mechanical Values of Weld Metal(%)

Test ConditionProtection GasHardness (HB)
As weldedC1350
As weldedM21350

* Chemical compositon and mechanical properties are valid when using shielding gas .

Application Information

Welding Positions :
Fch 335 Kaynak Pozisyonu Fch 335 Kaynak Pozisyonu

Polarity:

Fch 335 Kutuplama DC(+)

Protection Gas:

M21 C1

Welding Parameters & Efficiency :

Diameter (mm)Deposition Rate(kg/h)Efficiency(%)
1.202.1395
1.602.7994

Packaging Information

Product CodeDiameter (mm)Weight Of The Box (kg)Number Of Boxes Per PackageWeight Of The PackagePackaging Type
38001EJAM21.2015.0115.7Wire Basket Spool (K300MS)
38001GJAM21.6015.0115.7Wire Basket Spool (K300MS)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
