FCH 340

Standards

EN 14700 T Fe1
TS EN 14700 T Fe1
DIN 8555 MF 1-GF-400-P

Properties and Applications

Gas shielded flux cored wire, which is developed for hardfacing of parts, subjected to metal-to-metal friction wear (adhesion) and medium to high degree impacts. Weld metal can be machinable by chip forming by means of carbide tiped tools. Interpass temperature should not exceed 250°C, during welding.

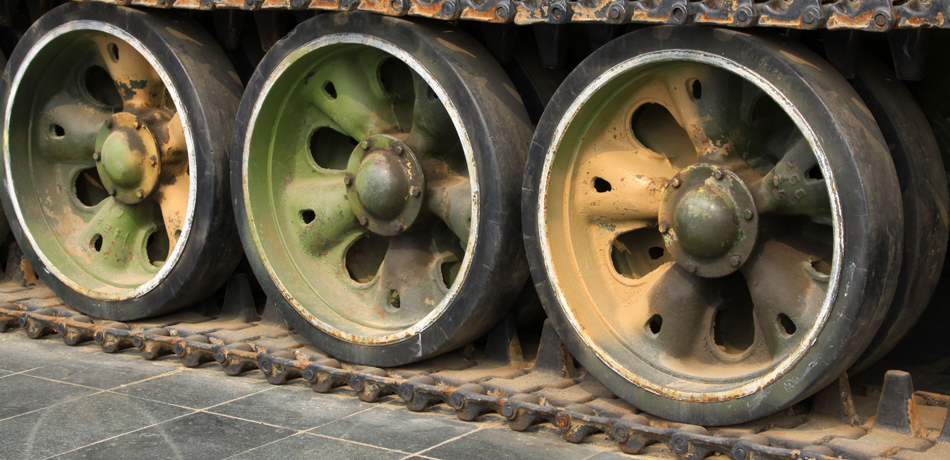

Typical Applications : Suitable for hardfacing rollers, idlers, gears, sprockets, shafts, crane rollers and mine car wheels.
Fch 340 Sert Dolgu

Dayanım Gösterdiği Aşınma Tipleri ve Mikroyapısı


Abrasion

Adhesion

Darbe

Temperature

Corrosion

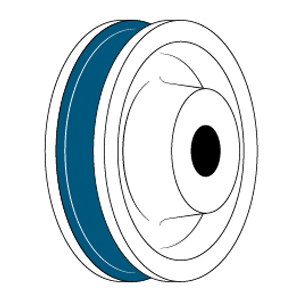

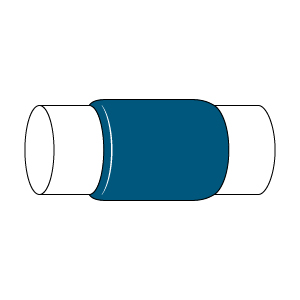

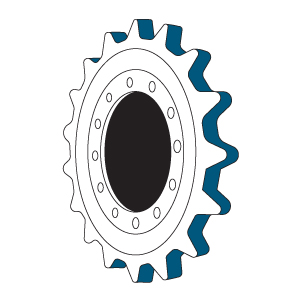

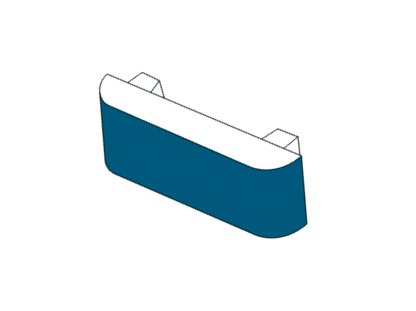

Typical Applications

Fch 340 Model Tipik Uygulamalar Fch 340 Model Tipik Uygulamalar Fch 340 Model Tipik Uygulamalar Fch 340 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrMoFe
Weld Deposit0.200.450.252.700.4096.00

Typical Mechanical Values of Weld Metal(%)

Test ConditionProtection GasHardness (HB)
As weldedM21400

* Chemical compositon and mechanical properties are valid when using shielding gas EN ISO 14175 - C1 (%100 CO2) .

Application Information

Welding Positions :
Fch 340 Kaynak Pozisyonu Fch 340 Kaynak Pozisyonu

Polarity:

Fch 340 Kutuplama

Protection Gas:

M21

Welding Parameters & Efficiency :

Diameter (mm)Yığma Oranı(kg/saat)Verimlilik(%)
1.20168.0087
1.60279.0094

Packaging Information

Product CodeDiameter (mm)Quantity per BoxKutu Brüt Ağırlığı (kg)Boxes per Outer BoxKoli Ağırlığı (kg)Packaging Type
38006EJAM21.2015 kg15.70115.70Wire Basket Spool (K300MS)
38006GJAM21.6015 kg15.70115.70Wire Basket Spool (K300MS)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
